Roksan K3 Integrated Amplifier
Roksan K3 Integrated Amplifier
Delivering impressive detail and powerful bass drive, the K3 Integrated Amplifier's Moving Magnet phono input is a high-quality solution for today’s music lover.
Note: All K3 products manufactured from September 2021 will be without Bluetooth. The BT button is now programmable to your favourite input.
The K3 Integrated Amplifier offers an elegant user-friendly answer for today’s discerning music lovers.
A built-in Moving Magnet phono input, five-line inputs make it a flexible hub for all manner of audio sources.
A power output of 140 W (RMS) per channel (into 8 Ohms) and superb bass drive deliver a wide detailed sound stage for a truly engaging musical experience. High-quality components, boards and transformers are employed for optimum sound quality and reliability.
Key Features
- Moving Magnet phono input
- Five additional line inputs for other sources
- Superior build quality
- Symmetrical amplifier layout
- High quality signal output relays
- Directly mains-powered power amp section
- Switchable bypass input
- Pre-amplifier outputs
- Headphone socket
Amplifier Type
Class-AB
Input
5 x RCA, MM phono, Bypass
Input Impedance
47 kohms
Line Input Senstivity
440 mV @ 140 W / 8 ohms

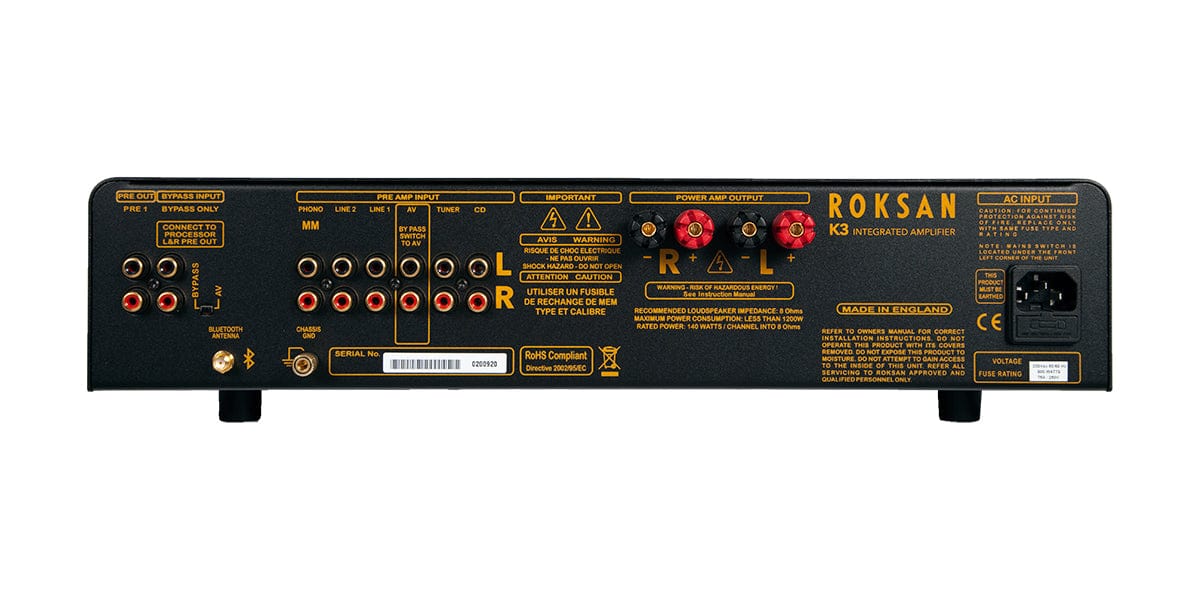

Outputs
Speaker (L & R), pre-amp, 3.5 mm headphone
Power Output (Per Channel)
> 140 W (8 ohms) /
> 220 W (4 ohms)
Power Supply
550 VA Toroidal transformer
Frequency Response
<3 Hz - >100 kHz (-3 dB)
Gain
37.5 dB (75x)
Harmonic Distortion
<0.005 % (1 kHZ - 14 W @ 8 ohms)
Power Consumption
Full Power 2-CH: 8 ohms = <330 W,
4 ohms = <550 W
Signal to Noise Ratio
>90 dB (Line input)
Dimensions (W x H x D)
432 x 102 x 380 mm
Weight
13.5 kg
