Sugden A21SE Stage Two Phono Amplifier – SoundHub

Sugden A21SE Stage Two Phono Amplifier

  • Sale
  • Regular price $1,995.00
Tax included.

A21SE Stage Two Phono Amplifier

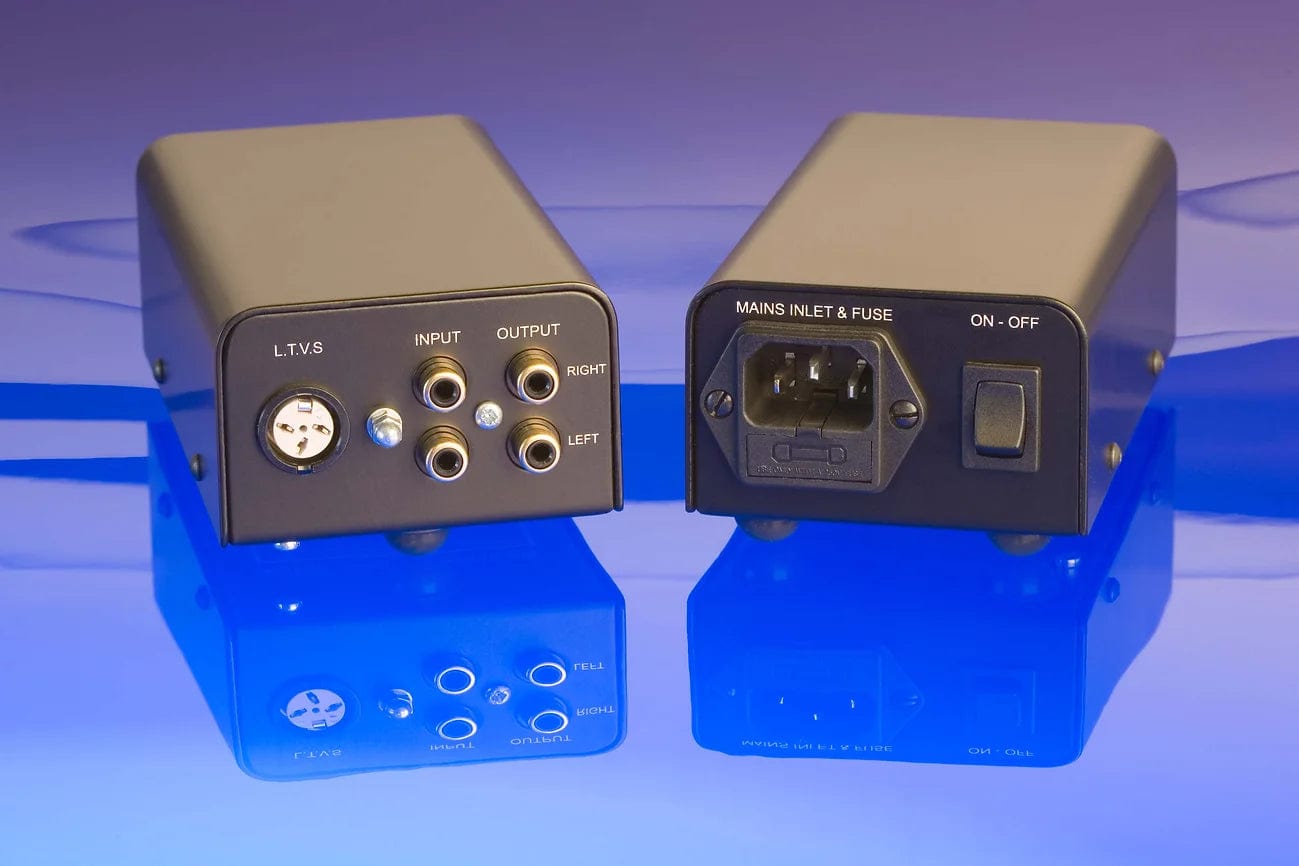

There are two dedicated phono amplifiers in the Sugden range and both are borne from our passion for vinyl. The Stage Two offers exceptional value for money with facilities to cater for both MM and MC cartridges. The design is a two box system separating the power supply from the amplifier. The phono amplifier has fixed loading for MM and 100 and 470 Ohm selection for MC.

Our design criteria was to produce a product that was as neutral as possible, retaining a faithful and enjoyable analogue sound.


Inputs ​                                    Moving magnet, Moving coil

                                               LTVS power in

Outputs                                  Fixed line level output

Gain Adjustment                    Internal selection for MM or MC

Load Adjustment                    Internal for MC 100 and 470 Ohms

                                               MM fixed load 47k

Earth Terminal                       Screw type

External Power Supply          Mains powered


Input Sensitivity                      MM 3.0mV MC 0.15mV

Output                                    350mV

Frequency Response            +/-1.5dB 20Hz-20kHz

Signal to Noise                       >64dB

Gross Weight  (packed)        2kgs

Dimensions                           Phono amplifier 60 x 140 x 77mm (hwd)

                                              Power supply 50 x 140 x 77mm (hwd)
