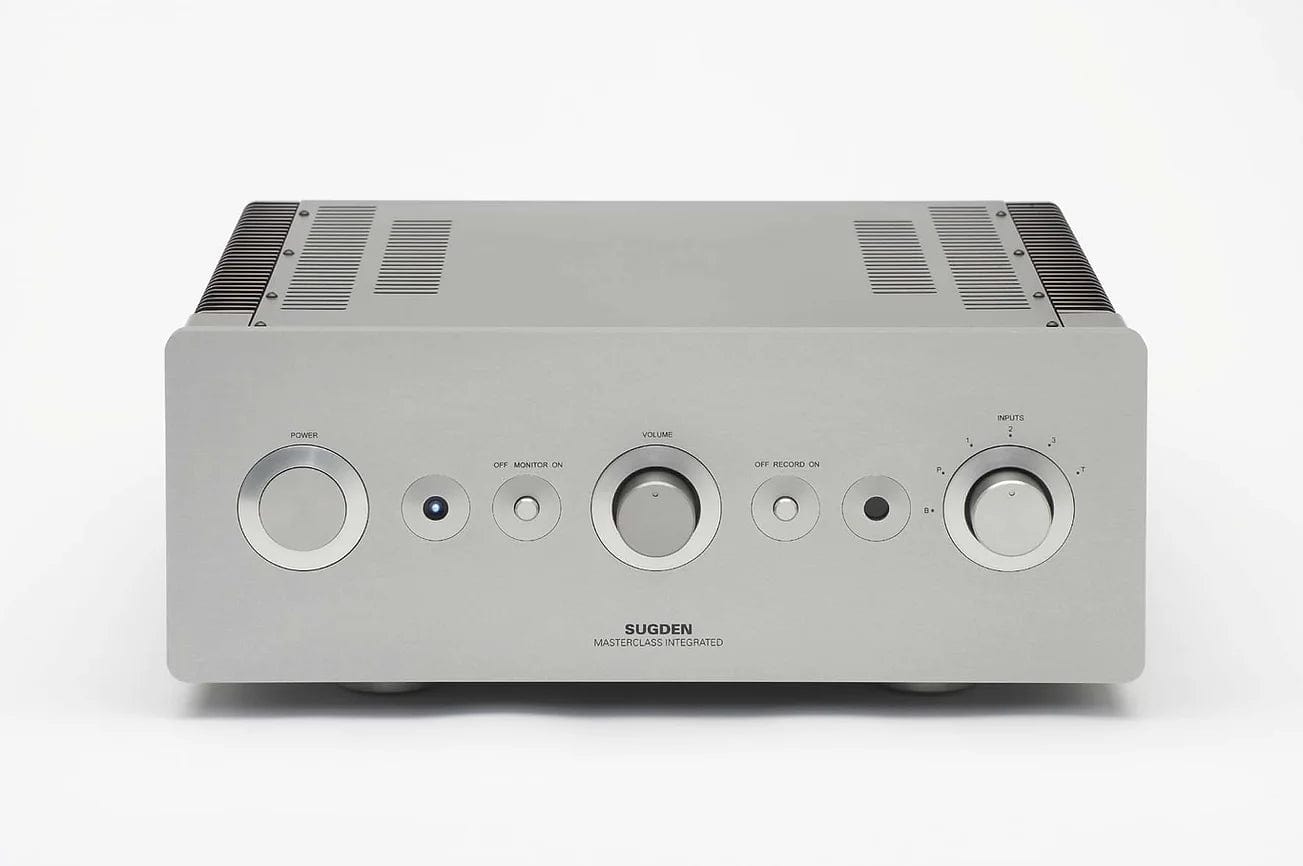

Sugden Masterclass IA-4

The IA-4 is our flagship and most popular integrated amplifier.  Weighing a substantial 20 kilos the IA-4 has a purposeful look and impressive build quality. Plenty of input and output facilities are on offer including a high quality phono stage. The class A power output circuit has been upgraded from the A21 series with a larger power supply and improved soothing and output capacitors. Gold plated circuit boards, full relay switching and a precision input selector switch offer further detailing. The pre-amplifier section of the IA-4 is a bespoke design, with surprising clarity and detail.  The most noticeable feature is the ability to create a large performance with depth and height on any type of music.

Facilities

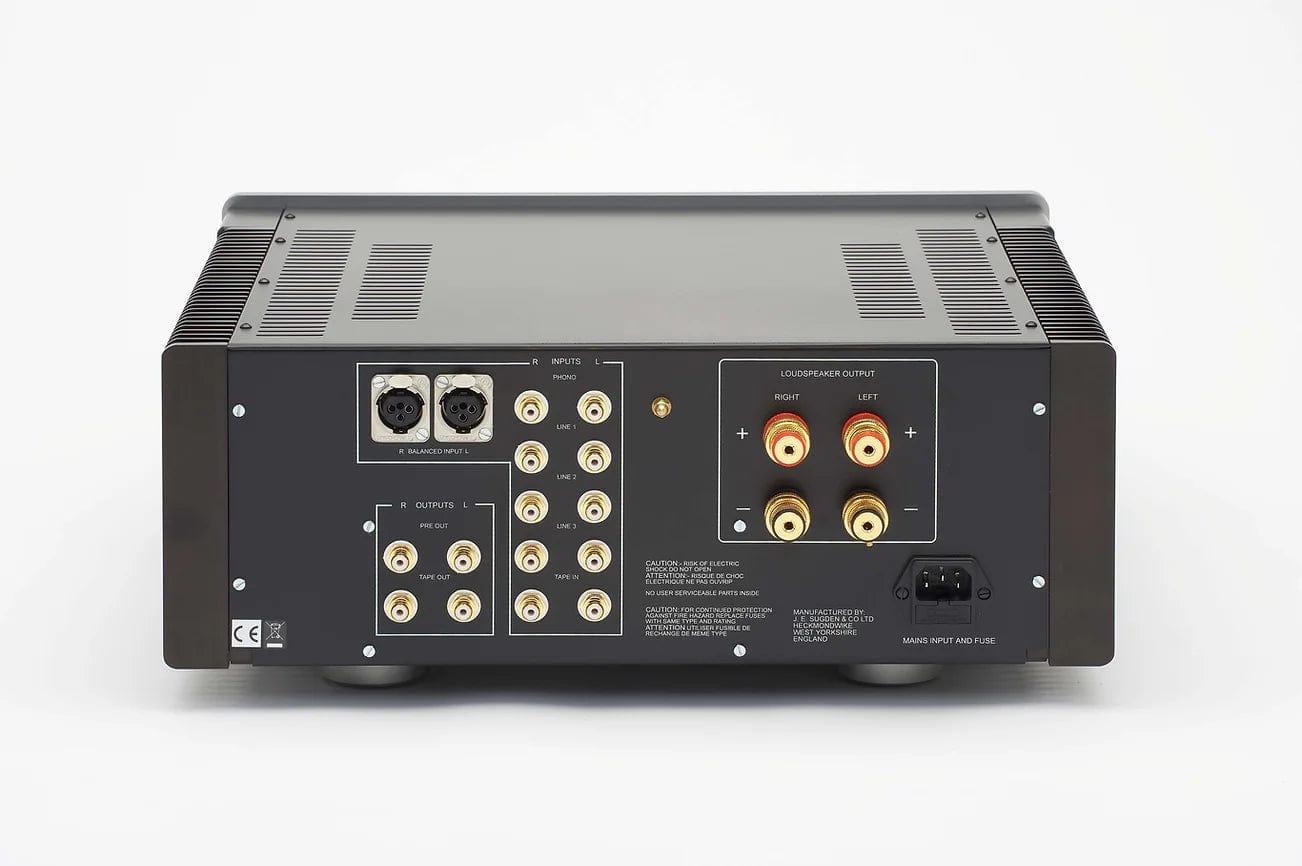

Inputs ​                                  Three line level, tape, MM phono, balanced

Outputs                                Variable pre-out, fixed out, loudspeaker out

Volume Control                    Remote control RC5 compatible

Tape                                     Monitor and record off

​

​Specifications

Line Input sensitivity            125mV

Phono Input Sensitivity        2mV (MM)

Power Output                       33 Watts per channel

Frequency Response           +/-1dB 14Hz-200kHz

Bandwidth                            6Hz-300kHz

Signal to Noise                     >84dB

Gross Weight  (packed)        20kgs

Dimensions                         165 x 430 x 440mm (hwd)
