Sapphire FBA-800 Pure Class A Power Amplifier
The FBA-800 is our most advanced power amplifier. The floating bridge design combines four 20 Watt amplifiers in a single stereo chassis and provides several key benefits. Each channel consists of two amplifiers working as voltage amplifiers driving an output stage of bridged power transistors. The advantages are a low noise floor, better power output relative to the voltage rails (x2) and with the fixed current of the class A mode, low output impedance and better load tolerance.
The Power amplifier is D.C. coupled, with a servo lock, ensuring excellent low frequency detail. For safety purposes the amplifier includes a D.C. protection circuit. This circuit is statically switched using extremely low impedance Mosfet switching devices. This circuit also soft switches the power amp on and off. The power supply is a low impedance design with a single custom made bi-filar wound transformer, with four separate windings. The main smoothing capacitors for the output stage are specially developed for professional audio applications with excellent ripple characteristics and long life. The Four power transistors per channel in the output stages are multi emitter devices with an output capability of 26 amps per device. The FBA-800 operates in the full balanced mode from the input of the unit to the output.
Facilities

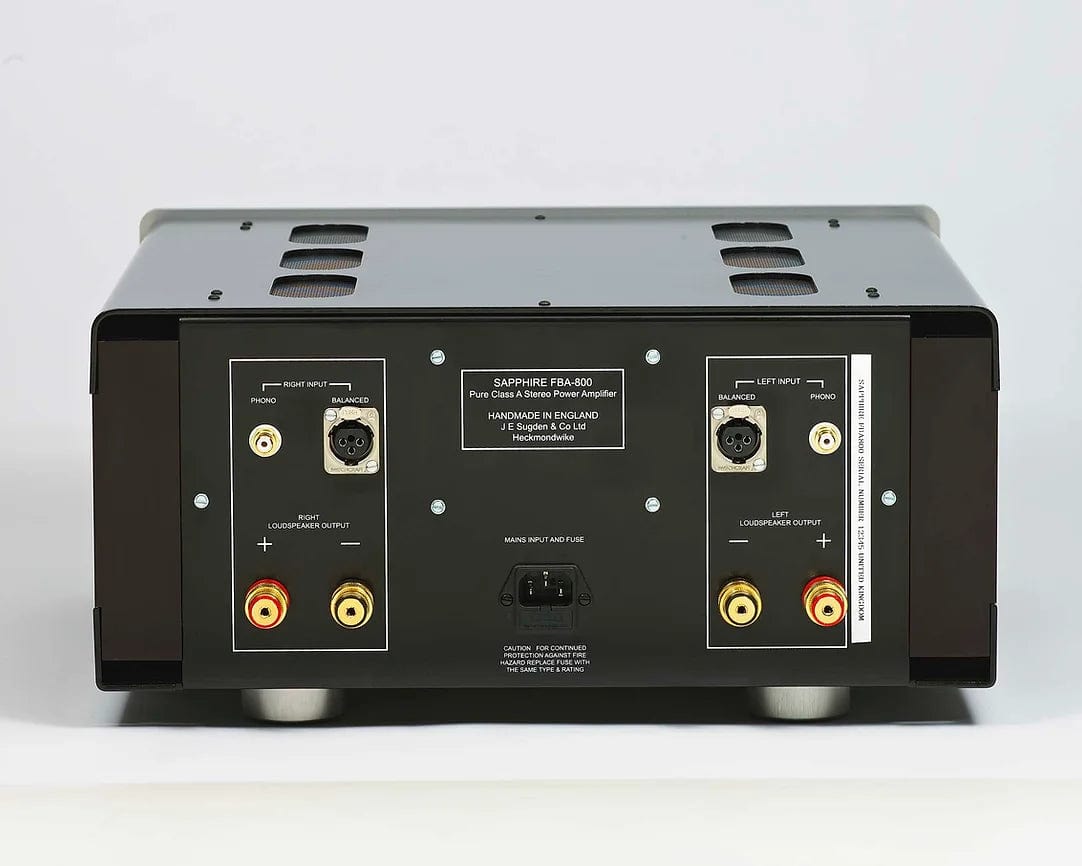

Inputs Stereo line level, stereo balanced
Outputs Stereo pair multi-way locking binding posts

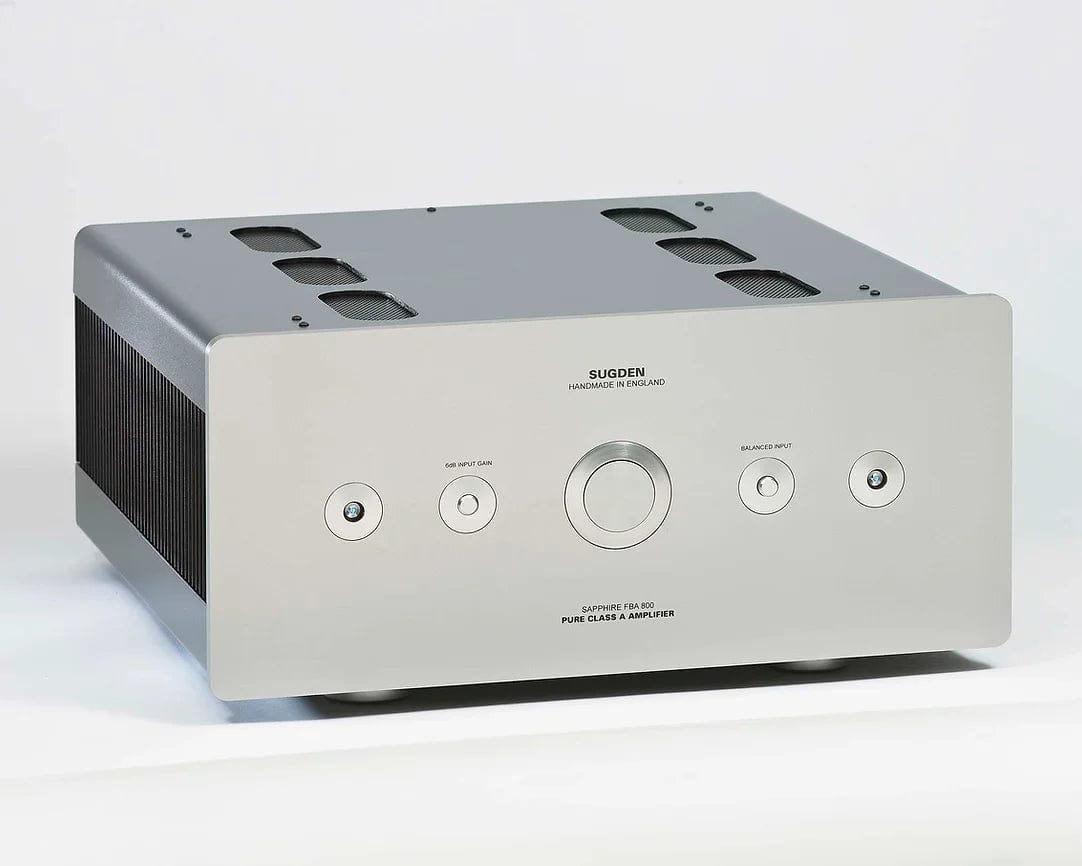

Front Panel Gain Selector 6dB input attenuation
Front Panel Input Selector RCA or XLR
Specifications
Input Sensitivity 735mV for full output
Power Output 40 Watts into 8 Ohms both channels working
Frequency Response 0dB 20Hz-80kHz
Bandwidth 6Hz-113kHz
Signal to Noise >96dB
Distortion at 1 Watt 1kHz >0.05%
Gross Weight (packed) 25kgs
Dimensions 206 x 430 x 460mm (hwd)
