SVS PB-1000 Pro – SoundHub

SVS PB-1000 Pro

  • Sale
  • Regular price $1,999.00
Tax included.

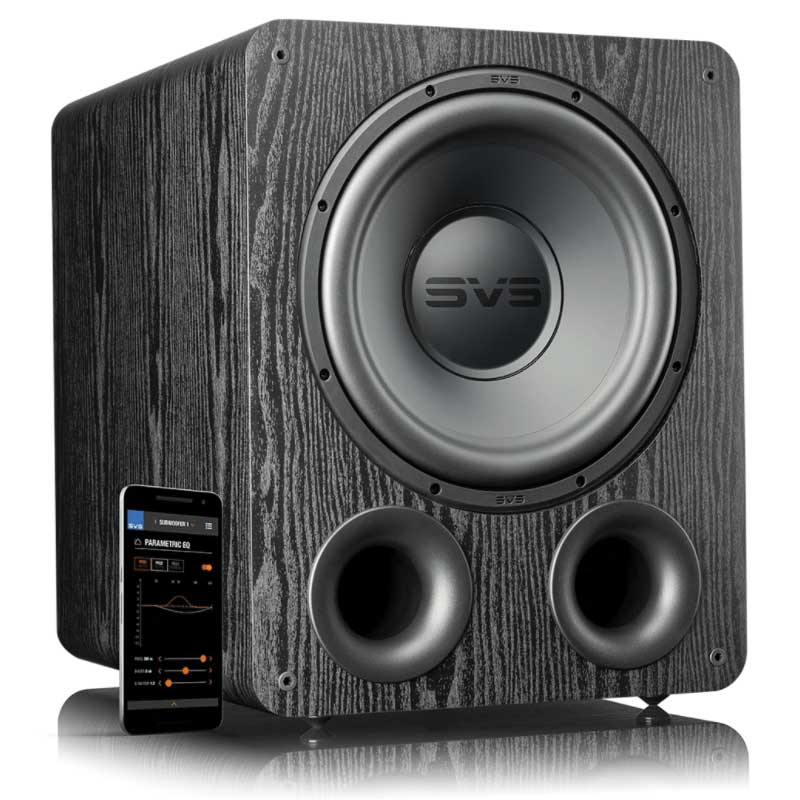

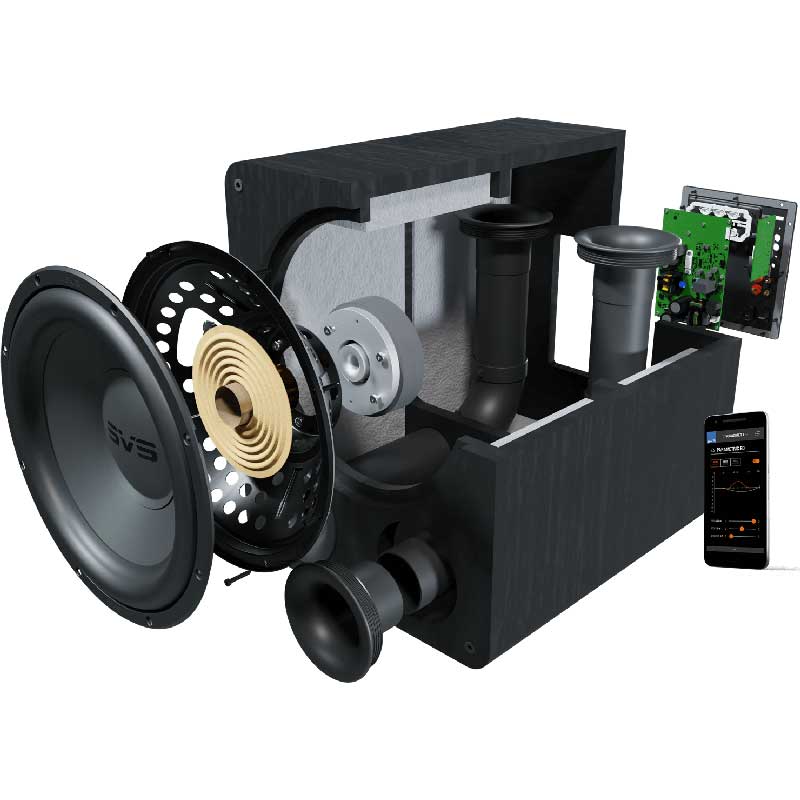

Room-shaking output well below the threshold of audibility, with pinpoint control and accuracy, the PB-1000 Pro obliterates performance expectations for subwoofers anywhere near the price. A reimagined 12-inch high-excursion SVS driver is married to a reference 325+ watts RMS, 820+ watts peak power Sledge amplifier with fully discreet MOSFET output for stunningly immersive cinematic bass. PB-1000 Pro is optimized with a new dual-port cabinet design for effortless bass with vanishingly low distortion and features the SVS Subwoofer DSP smartphone app for convenient tuning and control.

Subwoofer Specs:

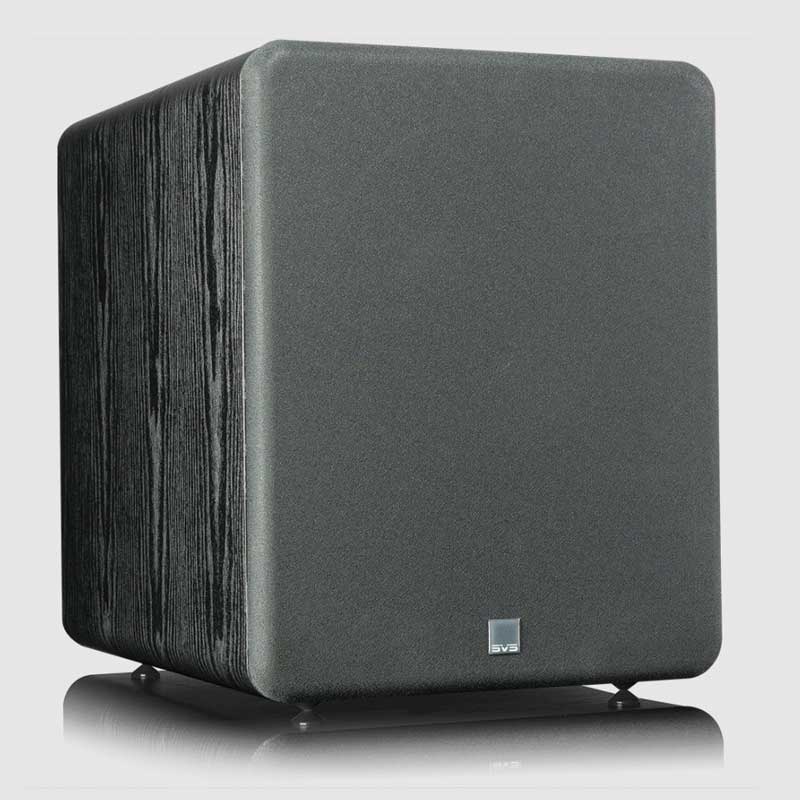

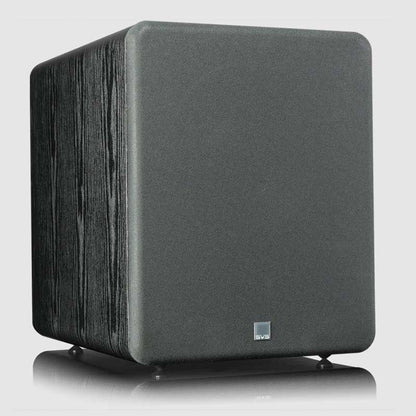

  • Protective non-resonant extra-thick ABS fabric mesh grille
  • Iso-elastomer feet included
  • Extra heavy-duty, high current power cord 6'
  • Quick Start Guide
  • Port Plugs (free upon request)

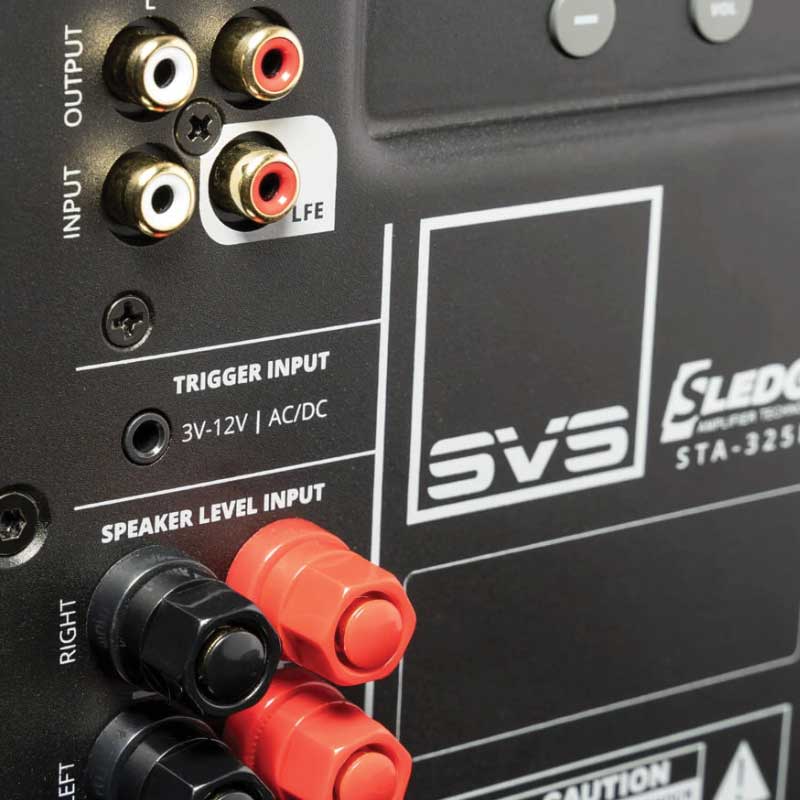

  • Unbalanced stereo input/output
  • Speaker Level Stereo Input
  • Auto/On and Trigger options through app, 3-12V AC/DC trigger
  • RoHS compliant, lead-free construction, world-wide safety certifications
  • Green 0.5-watt low standby power consumption
  • Dimensions (w/ grille): 479mm H X 380mm W X 509mm D
  • Dimensions (without grille): 479mm H X 380mm W X 488mm D

Driver Specs:

  • All-new proprietary 12-inch long-throw driver with high-precision tuned overhung motor configuration.
  • 4.2kg pound Woofer with 3.14kg pounds motor
  • 13.1mm Xmax, 26.8mm Xmech precision aligned excursion
  • 1.5” diameter Voice Coil with high current 6-layer high-purity copper wire windings
  • Premium high-purity copper voice coil winding design minimizes distortion and power compression with maximum heat dissipation, linearity, and tuned magnetics for high excursion
  • Two-piece high grade oversized Y35 Ferrite magnet motor
  • High Temperature 3003-H18 aluminum former/bobbing
  • 6” composite cotton-poly extreme excursion linear spider
  • Dual 24-strand copper-alloy high-temperature leads
  • Proprietary injection molded gasket and NBR extreme-excursion surround
  • Lightweight treated Fiber Composite cone for enhanced sensitivity and transient response
  • Top plate assembly with low carbon 1010 steel for optimal magnetics
  • Oversized low carbon 1008 steel T-yoke with integrated pole piece extension for maximum cooling and electromagnetics
  • 12” premium powder coated basket with FEA optimized analysis for maximum rigidity, tensile strength, and energy transference
  • Oversized motor system for driving full excursion and industry best SPL, with pinpoint transient speed
  • Precision machining for motor and narrow tolerance suspension parts ensure flawless linearity at full range of excursion

SVS Sledge-325D Amplifier Specs:

  • 325 watts RMS, 820+ watts peak power output Class D design
  • 50Mhz Analog Devices Audio DSP, high resolution double precision 56bit filtering
  • Wide input voltage bandwidth compliant for consumer and pro audio up to 4V line level input.
  • High efficiency LLC resonant SMPS with 17A 650V MOSFET, resonant switching results in lower EMI and highest efficiency.
  • Cool-running Class D amplifier switching topology with massive 34A 120V MOSFET’s
  • SVS BLE control app for iOS and Android contains 3 complete name-able and customizable User presets, supports IOS (iphone5 or newer or Android (4.42 or newer), 3 PEQ's per preset, adjustable low pass, phase, polarity, room gain compensation, and control for best alignment with speakers.
