Dual monaural USB DAC/Network Player supporting DSD512 and PCM32/768

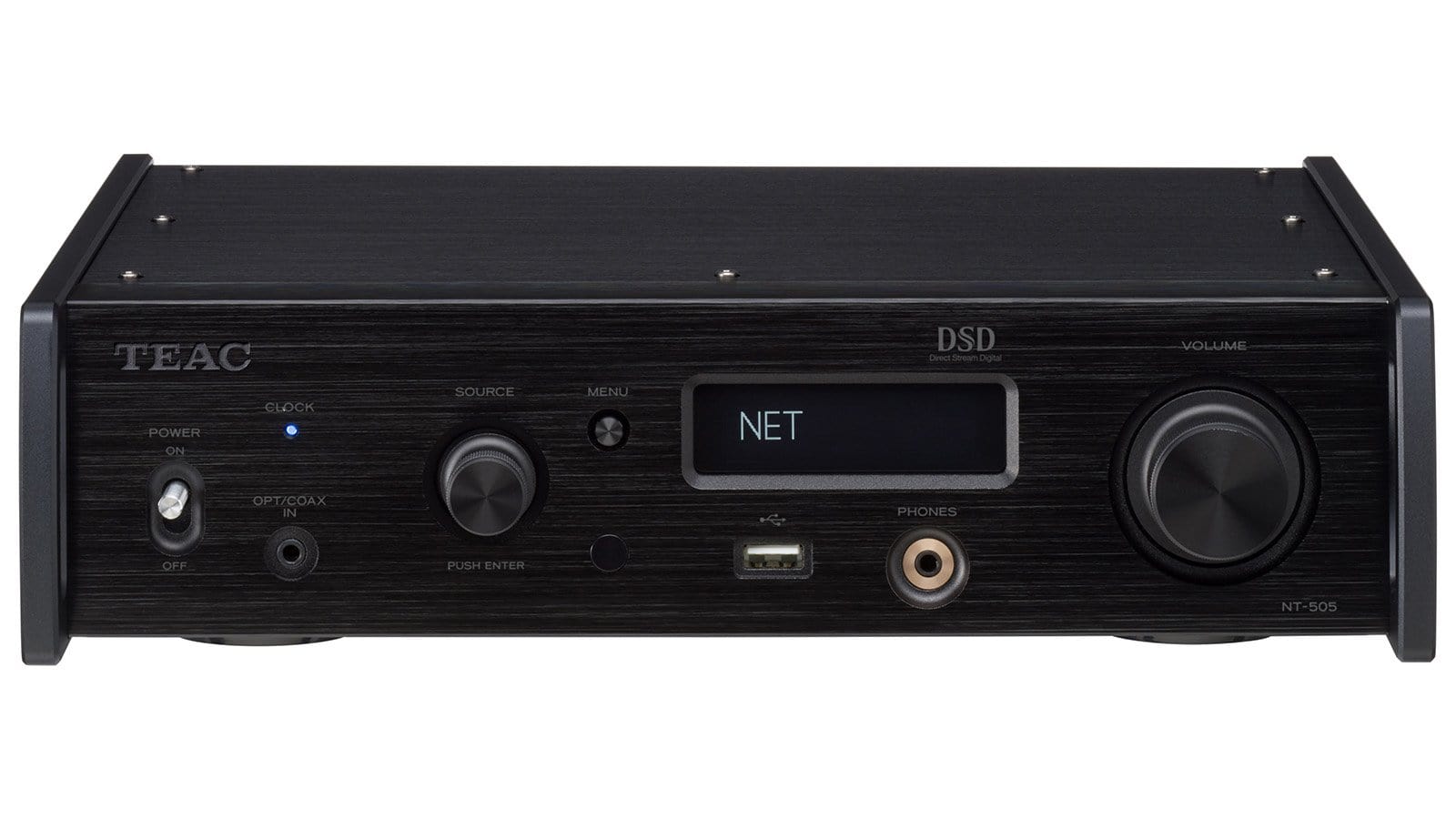

The NT-505 is a flagship dual monaural USB DAC with versatile network playback capabilities. It successfully incorporates the latest network technologies, along with TEAC’s decades of accumulated audio design experience, in an attractive package with an A4-sized footprint.
Like its predecessor (the NT-503) it employs a dual monaural circuit design to process audio signals with even greater purity, with the latest VERITA AK4497 DAC chip used on each of the two channels. This improves the S/N (signal to noise) ratio by processing each channel individually in monaural mode, as well as delivering DSD512 (22.5MHz) native and 768kHz/32-bit PCM playback capabilities.
The Analog section, which is one of the keys to sound quality, includes four TEAC-HCLD buffer amp circuits that allow different drive modes, - fully-balanced drive for balanced output, and parallel drive mode for unbalanced output - to achieve enhanced acoustic expression.
On the network audio side, the NT-505 supports high-quality music subscription services, namely TIDAL and Qobuz, and is Roon Ready. There’s also a built-in MQA decoder, and you will enjoy unlimited music content on the Internet thanks to its high-quality digital and Analog processing technologies.
In addition to a wide range of digital and Analog inputs, a Bluetooth® receiver supporting LDAC™ and Qualcomm® aptX HD™ allows you to stream high-quality audio wirelessly from your smartphone to this flagship USB DAC.
The NT-505 is a compact and high-spec USB DAC and network player that supports the latest Hi-Res formats and online music subscription services.
Features at a glance
- Hi-Res audio playback supporting DSD512 (22.6MHz) and PCM 768kHz/32-bit PCM
- Dual monaural circuit design with a high-end AKM VERITA AK4497 DAC on each channel
- Supports MQA decoding
- Spotify, TIDAL, and Qobuz music subscription services
- Roon Ready
- DSD128 (5.6MHz) and PCM 192kHz/24-bit Network streaming from NAS/PC
- 5 types of PCM digital filters and 2 types of DSD digital filters
- Up-conversion up to 24.5MHz DSD and 384kHz/32-bit PCM
- Dual on-board clocks for 44.1kHz and 48kHz frequencies, and 10MHz external clock input
- Bluetooth® receiver supporting LDAC™ and Qualcomm® aptX™ HD
- TEAC-HCLD output buffer circuit and TEAC-QVCS volume control for high quality sound
- Dual toroidal-core power transformers
- Digital Isolator for separated digital and Analog sections
- 1/8" (3.5mm) stereo TRS(or TRRS) jack supporting ground-separate drive
- "Bulk Pet" USB transferring technology with four transfer modes for various sound characters * "Bulk Pet" is a registered trademark of Interface Corporation.
- USB audio port for Hi-Res audio input from Windows/Mac
- Coaxial and optical digital inputs on both front and back
- Front USB port supporting Hi-Res playback from USB flash drive
- Analog outputs with balanced XLR and conventional unbalanced RCA outputs
- High-contrast full-graphic organic EL display with dimmer
- Full-metal body with an A4-sized footprint
- Free TEAC HR Audio Player for DSD512 and PCM32/768 playback
- Free TEAC HR Streamer app for iOS/Android devices
Spec description
| Supported formats | |
| USB input | |
| PCM | 16/24/32 bit 44.1k/48k/88.2k/96k/176.4k/192k/352.8k/384k/705.6k/768k Hz |
| DSD | 2.8M/5.6M/11.2M/22.5M Hz |
| Coaxial digital input | |
| PCM | 16/24 bit 32k/44.1k/48k/88.2k/96k/176.4k/192k Hz |
| DSD | 2.8MHz(supported with 176.4kHz/24-bit DoP format) |
| Optical digital input | |
| PCM | 16/24 bit 32k/44.1k/48k/88.2k/96k/176.4k/192k Hz |
| DSD | 2.8MHz(supported with 176.4kHz/24-bit DoP format) |
| DAC section | |
| USB DAC | Asahi Kasei Microdevices AK4497×2 |
| Up-conversion | up to 384kHz/32-bit PCM, 22.5MHz DSD |
| Digital filters | |
| PCM filters | Sharp Roll Off, Slow Roll Off, Short Delay Sharp, Short Delay Slow, Low Dispersion, off |
| DSD cutoff frequencies | Narrow : 39kHz (at 2.8M), 78kHz (at 5.6M), 156kHz (at 11.2M) or 312kHz (at 22.5M) Wide : 76kHz (at 2.8M), 152kHz (at 5.6M), 304kHz (at 11.2M) or 608kHz (at 22.5M) |
| LAN section | |
| Connector | RJ-45×1(1000Base-T) |
| MQA Decoder | Built-in |

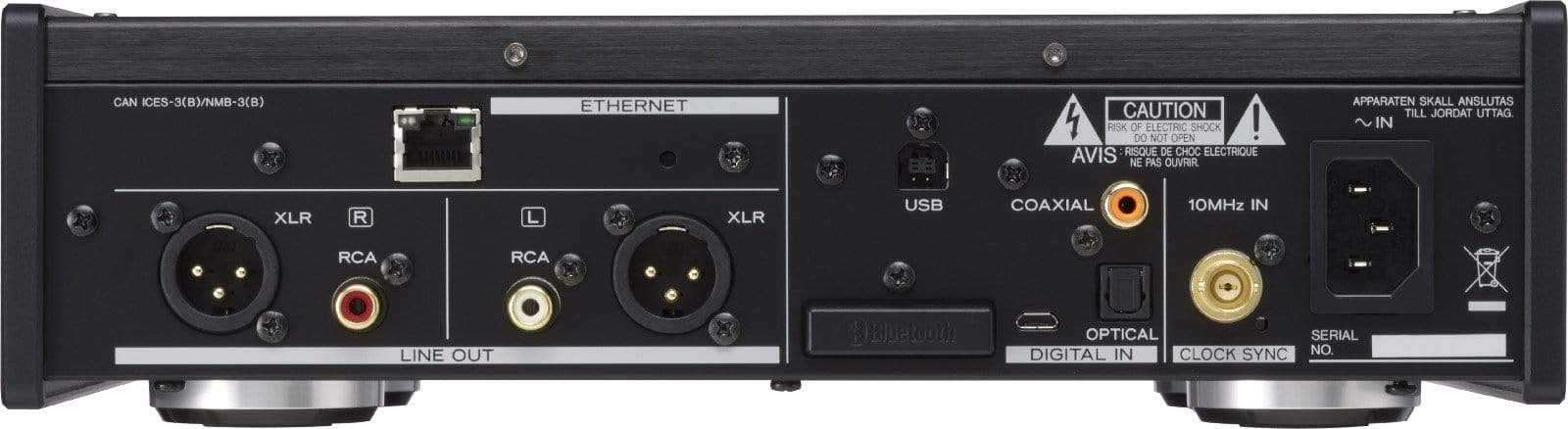

| Audio inputs | |
| USB (rear) | USB B port, USB 2.0, asynchronous mode transfer, bulk transfer |
| Compatible Software | TEAC HR Audio Player (Windows, Macintosh) |
| COAXIAL digital (rear) | RCA pin×1 (gold-plated) |
| Input level | 0.5Vp-p |
| Input impedance | 75Ω |
| Optical digital (rear) | TOS-link×1 |
| Input level | -24.0 to -14.5dBm peak |
| Coaxial digital (front) | 1/8” (3.5mm) mini×1 (combined with optical digital input, detected automatically) |
| Input level | 0.5Vp-p |
| Input impedance | 75Ω * 1/8” Mini - RCA conversion cable included. |
| Optical digital (front) | 1/8” Mini Optical×1 (combined with coaxial digital input, detected automatically) |
| Input level | -24.0 to -14.5dBm peak |
| USB (front) | USB A port |
| Supported media | USB Flash Drive |
| Bluetooth® | |
| Bluetooth® version | 4.0 |
| Output class | Class2 (Range: approx. 33ft/10m) |
| Supported profiles | A2DP, AVRCP |
| Content protection | SCMS-T |
| Supported codec | LDAC™, Qualcomm® aptX™ HD, aptX™, AAC, SBC |
| No. of paired device | maximum 8 devices |
| Audio outputs | |
| XLR balanced | XLR×1 pair (gold-plated) |
| Output level | Fixed (0dB), fixed (+6dB), variable, output off (selectable) |
| Maximum output leve | 2.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (0dB)) 4.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (+6dB)) 12.0Vrms (1kHz, full scale, into 10kΩ, when set to variable) |
| Output impedance | 188Ω |
| RCA unbalanced | RCA pin×1 pair (gold-plated) |
| Output level | Fixed (0dB), fixed (+6dB), variable, output off (selectable) |
| Maximum output leve | 2.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (0dB)) 4.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (+6dB)) 6.0Vrms (1kHz, full scale, into 10kΩ, when set to variable) |
| Output impedance | 150Ω |
| Headphone outputs | |
| Connector | 1/8” (3.5mm) Stereo TRS(or TRRS) jack×1 (gold-plated) |
| Polarity | Tip:L+, Ring1:R+, Ring3:L-, Sleeve:R- |
| Maximum output | 500mW + 500mW (into 32Ω) |
| Supported impedances | 16 to 600Ω |
| Clock section | |
| Internal clock | |
| Type | Crystal oscillator |
| Number of clocks | 2 (44.1kHz and 48kHz) |
| External clock input | |
| Connector | BNC (gold-plated) |
| Input frequency | 10MHz |
| Input impedance | 50Ω |
| Input level | Rectangle wave: equivalent to TTL levels Sine wave: 0.5 to 1.0 Vrms |
| Audio performance | |
| Frequency Response | 10 to 80,000 Hz (+1/-3 dB, 192kHz PCM input, RCA output, digital filter off) |
| Total harmonic distortion | 0.002% or less (192kHz PCM input, RCA output, digital filter off) |
| S/N ratio | 110dB or higher (192kHz PCM input, RCA output, digital filter off) |
| Power supply | |
| US/Canada | AC 120V 60Hz |
| UK/Europe | AC 220 to 240V 50Hz |
| Power consumption | 18W (0.4W in standby) |
| dimensions (including protrusions) | 290(W)×81.2(H)×248.7(D) mm / 11.4”(W)×3.2”(H)×9.8”(D) |
| Weight | 3.9kg / 8.6lbs |
| Included accessories | Power cord, RCA mini plug adapter cable, remote control (RC-1330),2 AAA batteries for remote control, Owner's Manual (with warranty) |
