Dual monaural USB DAC/headphone amplifier supporting DSD512 and PCM32/768

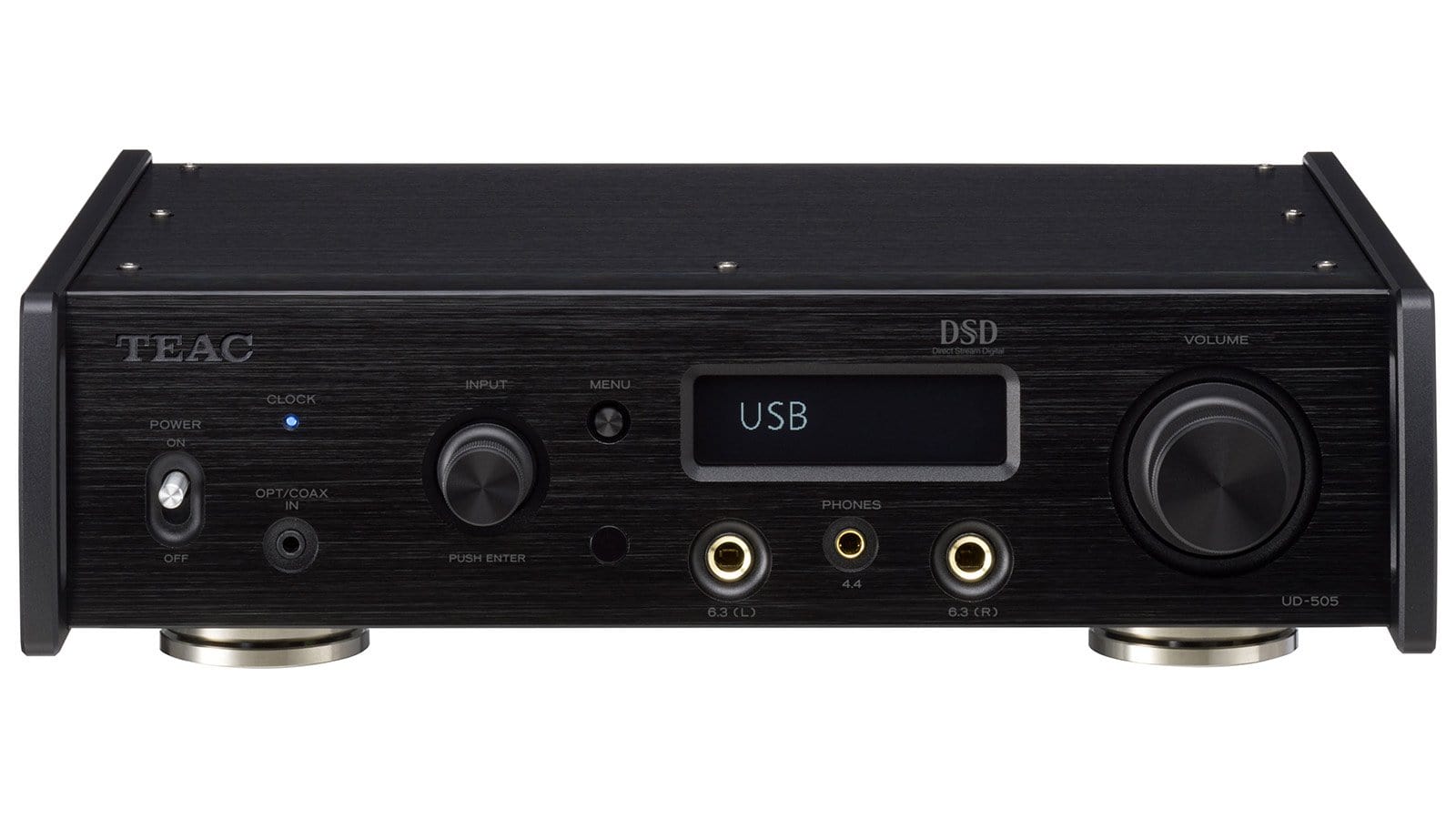

The UD-505 is a flagship dual monaural USB DAC with an integrated fully-balanced headphone amplifier, that fuses high-end audio design concepts and TEAC’s decades of audio design experience, in an A4-sized footprint.
Like its predecessor models, the UD-501 and UD-503, it employs a dual monaural circuit design to process audio signals with even greater purity, with the latest VERITA AK4497 DAC chip used on each of the two channels. This improves the S/N (signal to noise) ratio by processing each channel individually in monaural mode, as well as delivering DSD512 (22.5MHz) native and 768kHz/32-bit PCM playback capabilities.
The Analog section, which is one of the keys to sound quality, includes four TEAC-HCLD buffer amp circuits process different drive modes, - fully-balanced drive for balanced output, and parallel drive mode for unbalance output, - to achieve enhanced acoustic expressive.
The headphone section is remarkable. A totally new 4.4mm headphone jack, called Pentaconn, is employed, allowing balanced and active ground connections within a single jack, while conventional 1/4" phone jacks are also provided.
In addition to a wide range of digital and Analog inputs, a Bluetooth® receiver supporting LDAC™ and Qualcomm® aptX HD™ allows you to enjoy high-quality wireless audio streaming from your smartphone on this flagship USB DAC.
The UD-505 is a compact and high-spec USB DAC and headphone amplifier that supports today’s high sampling rate Hi-Res formats.
Features at a glance
- Hi-Res audio playback supporting DSD512 (22.6MHz) and PCM 768kHz/32-bit PCM
- Dual monaural circuit design with a high-end AKM VERITA AK4497 DAC on each left and right channel
- 5 types of PCM digital filters and 2 types of DSD digital filters
- Up-conversion up to 24.5MHz DSD and 384kHz/32-bit PCM
- Dual on-board clocks for 44.1kHz and 48kHz frequencies, and 10MHz external clock input
- Bluetooth® receiver supporting LDAC™ and Qualcomm® aptX™ HD
- TEAC-HCLD output buffer circuit and TEAC-QVCS volume control for high quality sound
- Dual toroidal-core power transformers
- Digital Isolator for separated digital and Analog sections
- 4.4mm 5-polar Pentaconn jack and dual 1/4” TRS jacks for balanced and active-ground drives * ”Pentaconn” is a registered trademark of NIPPON DICS Co., Ltd., complies with the RC-8141C JEITA standard
- TEAC’s patent-registered pin-point feet in three positions for the perfect installation * Japan patent No. 4075477 and No. 3778108
- Bulk Pet USB transferring technology with four transfer modes for various sound characters * ”Bulk Pet” is a registered trademark of Interface Corporation.
- USB audio port for Hi-Res audio input from Windows/Mac
- Coaxial and optical digital inputs on both front and back
- Convenient Analog LINE input to use the UD-505 as a pre-amplifier
- Analog outputs with balanced XLR and conventional unbalanced RCA outputs
- High-contrast full-graphic organic EL display with dimmer
- Full-metal body with an A4-sized footprint
- Free TEAC HR Audio Player for DSD512 and PCM32/768 playback
Spec description
| Supported formats | |
| USB input | |
| PCM | 16/24/32 bit 44.1k/48k/88.2k/96k/176.4k/192k/352.8k/384k/705.6k/768k Hz |
| DSD | 2.8M/5.6M/11.2M/22.5M Hz |
| Coaxial digital input | |
| PCM | 16/24 bit 32k/44.1k/48k/88.2k/96k/176.4k/192k Hz |
| DSD | 2.8MHz(supported with 176.4kHz/24-bit DoP format) |
| Optical digital input | |
| PCM | 16/24 bit 32k/44.1k/48k/88.2k/96k/176.4k/192k Hz |
| DSD | 2.8MHz(supported with 176.4kHz/24-bit DoP format) |
| DAC section | |
| USB DAC | Asahi Kasei Microdevices AK4497×2 |
| Up-conversion | up to 384kHz/32-bit PCM, 22.5MHz DSD |
| Digital filters | |
| PCM filters | Sharp Roll Off, Slow Roll Off, Short Delay Sharp, Short Delay Slow, Low Dispersion, off |
| DSD cutoff frequencies | Narrow : 39kHz (at 2.8M), 78kHz (at 5.6M), 156kHz (at 11.2M) or 312kHz (at 22.5M) Wide : 76kHz (at 2.8M), 152kHz (at 5.6M), 304kHz (at 11.2M) or 608kHz (at 22.5M) |

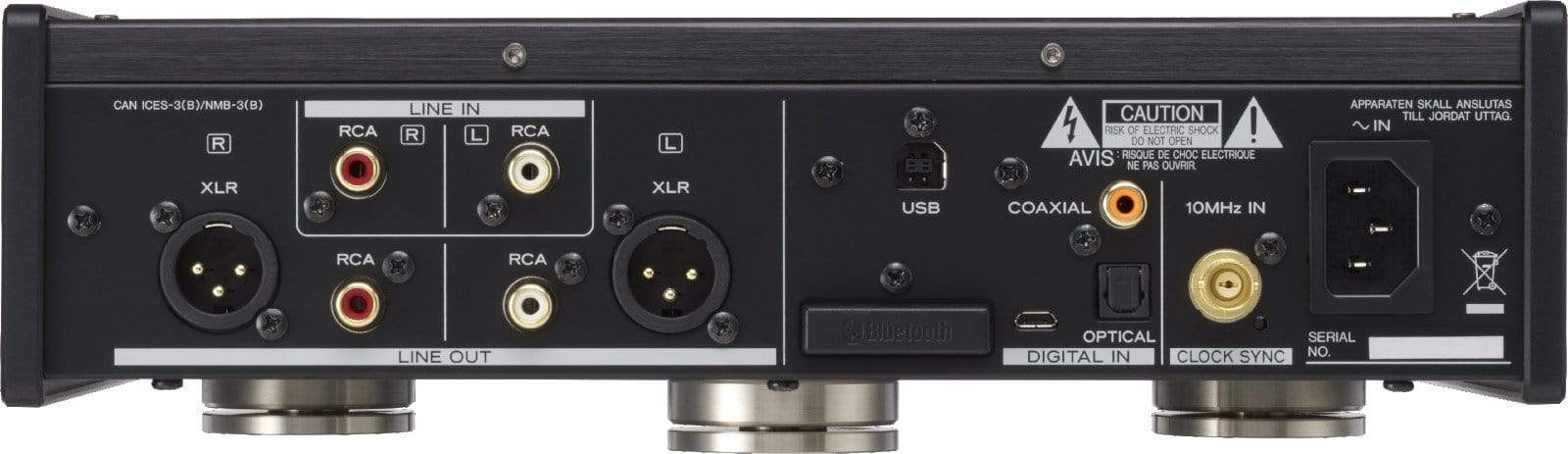

| Audio inputs | |
| USB | USB B port, USB 2.0, asynchronous mode transfer, bulk transfer |
| Compatible Software | TEAC HR Audio Player (Windows, Macintosh) |
| COAXIAL digital (rear) | RCA pin×1 (gold-plated) |
| Input level | 0.5Vp-p |
| Input impedance | 75Ω |
| Optical digital (rear) | TOS-link×1 |
| Input level | -24.0 to -14.5dBm peak |
| Coaxial digital (front) | 1/8” (3.5mm) mini*×1 (combined with optical digital input, detected automatically) |
| Input level | 0.5Vp-p |
| Input impedance | 75Ω * 1/8” Mini - RCA conversion cable included. |
| Optical digital (front) | 1/8” Mini Optical*×1 (combined with coaxial digital input, detected automatically) |
| Input level | -24.0 to -14.5dBm peak |
| Analog (rear) | RCA pin×1 pair (gold-plated) |
| Input impedance | 24kΩ |
| Input sensitivity | 130mV |
| Bluetooth® | |
| Bluetooth® version | 4.0 |
| Output class | Class2 (Range: approx. 33ft/10m) |
| Supported profiles | A2DP, AVRCP |
| Content protection | SCMS-T |
| Supported codec | LDAC™, Qualcomm® aptX™ HD, aptX™, AAC, SBC |
| No. of paired device | maximum 8 devices |
| Audio outputs | |
| XLR balanced | XLR×1 pair (gold-plated) |
| Output level | Fixed (0dB), fixed (+6dB), variable, output off (selectable) |
| Maximum output leve | 2.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (0dB)) 4.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (+6dB)) 12.0Vrms (1kHz, full scale, into 10kΩ, when set to variable) |
| Output impedance | 188Ω |
| RCA unbalanced | RCA pin×1 pair (gold-plated) |
| Output level | Fixed (0dB), fixed (+6dB), variable, output off (selectable) |
| Maximum output leve | 2.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (0dB)) 4.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (+6dB)) 6.0Vrms (1kHz, full scale, into 10kΩ, when set to variable) |
| Output impedance | 150Ω |
| Headphone outputs | |
| Connector 1 | 1/4” (6.3mm) TRS stereo jacks×2 (gold-plated) |
| Polarity (balanced) | Tip: HOT, Ring: COLD, Sleeve: NC (GND) |
| Polarity (unbalanced) | Tip: L, Ring: R, Sleeve: GND |
| Connector 2 | 4.4mm 5-pole Pentaconn×1 (gold-plated) |
| Polarity (balanced) | Tip: L+, Ring1: L-, Ring2: R+, Ring3: R-, Sleeve: GND |
| Maximum output | |
| Balanced | 700mW + 700mW (into 32Ω) |
| Unbalanced | 500mW + 500mW (into 32Ω×1) 350mW + 350mW(into 32Ω×2) |
| Active ground | 500mW + 500mW (into 32Ω) |
| Supported impedances | 16 to 600Ω |
| Clock section | |
| Internal clock | |
| Type | Crystal oscillator |
| Number of clocks | 2 (44.1kHz and 48kHz) |
| External clock input | |
| Connector | BNC (gold-plated) |
| Input frequency | 10MHz |
| Input impedance | 50Ω |
| Input level | Rectangle wave: equivalent to TTL levels Sine wave: 0.5 to 1.0 Vrms |
| Audio performance | |
| Frequency Response | 10 to 80,000 Hz (+1/-3 dB, 192kHz PCM input, RCA output, digital filter off) |
| Total harmonic distortion | 0.002% or less (192kHz PCM input, RCA output, digital filter off) |
| S/N ratio | 110dB or higher (192kHz PCM input, RCA output, digital filter off) |
| Power supply | |
| US/Canada | AC 120V 60Hz |
| UK/Europe | AC 220 to 240V 50Hz |
| Power consumption | 18W (0.4W in standby) |
| dimensions (including protrusions) | 290(W)×84.5(H)×248.7(D) mm / 11.4”(W)×3.3”(H)×9.8”(D) |
| Weight | 4.2kg / 9.3lbs |
| Included accessories | Power cord, RCA mini plug adapter cable, remote control(RC-1330), 2 AAA batteries for remote control, 3 feet cushions, Owner's Manual(with warranty) |
