Technics SA-C600 Premium Class Network CD Receiver

  • Sale
  • Regular price $1,899.00
Tax included.


Full Digital Amp, JENO Engine (Jitter Elimination and Noise-shaping Optimisation)

Full Digital Amp, JENO Engine (Jitter Elimination and Noise-shaping Optimisation)
The SA-C600 uses a fully digital amplifier incorporating Technics’ renowned digital audio technology. Its digital transmission system processes signals fully digitally in all stages from input to output. Compared to analogue transmission, this system is less susceptible to signal degradation caused by external noise, ensuring more precise signal transmission. Accurate signal processing not only delivers high-resolution digital audio but also maintains the soft texture inherent in analogue recordings.

Twin Power Supply Circuit System

Twin Power Supply Circuit System
The design of the power supply is extremely critical in audio systems containing CD players, amplifiers, digital circuits and other such components. To eliminate any adverse effects on the amplifier, the SA-C600 is equipped with a dedicated power supply for the amplifier circuits that is independent from all other circuits, supplying power to the two independent transformers. The wiring connections between the two dedicated transformers and the amplifier circuits are also optimised for noise reduction.

Clean Powered Clock Generator

The power supply for the clock circuit of the JENO Engine utilises the same noise suppression circuit employed in Technics’ flagship turntable model, the SL-1000R, in order to improve noise reduction. It achieves superb sound image localisation and transparent spatial expression.

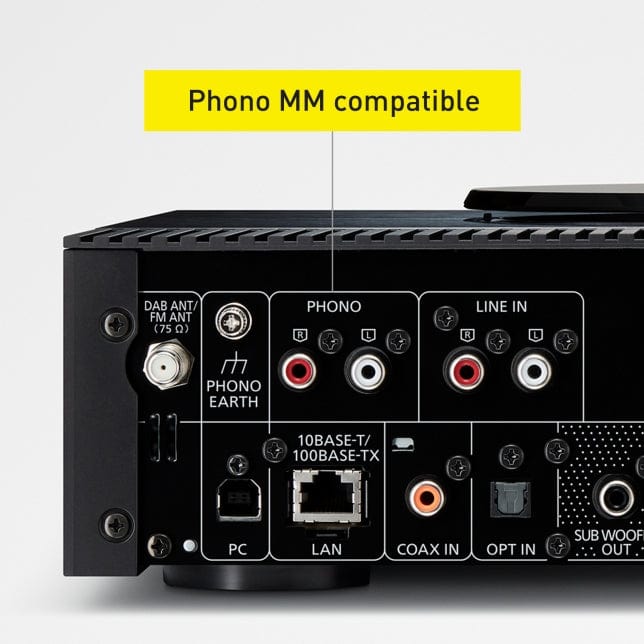

Built-in Phono Equaliser compatible with MM Cartridge

Built-in Phono Equaliser compatible with MM Cartridge
The built-in phono equaliser supports MM cartridges. The phono equaliser uses a dedicated power supply and is equipped with a power supply circuit that is different from the control circuit for improved noise reduction. The equaliser circuit also features a shielded construction to shut out the effects of external noise and allows for signal amplification without any loss of fidelity.

Space Tune™

Space Tune™
The SA-C600 is equipped with a Space Tune function that enables the adjustment of sound to suit the environment and location of the unit so that anyone can enjoy superb music reproduction. By using the Technics Audio Centre* app for tablets and smartphones or by selecting one of the four presets on the main unit—Free, Wall, Corner and Shelf—the user can achieve the most suitable sound reproduction for their specific acoustic environment.
The L/R Custom feature allows users to enter separate settings for each individual speaker, adjusting for installation under different conditions and bringing out the best sound quality in any environment.
* Available for iOS devices only

Specs

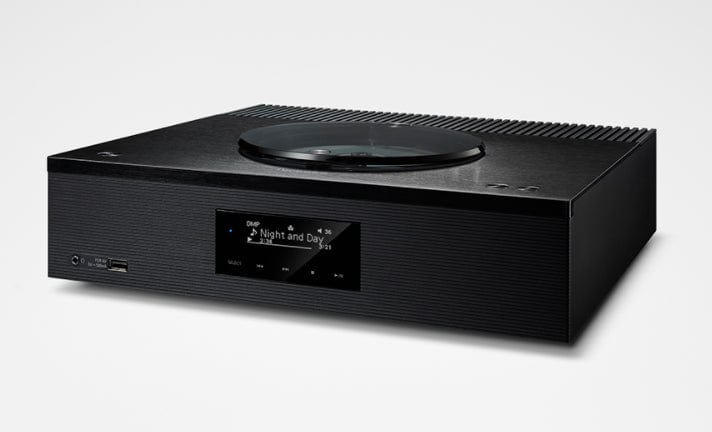

Photo of Network CD Reciever SA-C600

Size and Weight

Height
3-45/64inch
Width
13-25/64inch
Depth
13-7/16inch
Weight
10.6lb

*Approx.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
Google and Chromecast are trademarks of Google LLC.
AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
“Direct Stream Digital”, DSD and their logos are trademarks of Sony Corporation.
Wi-Fi®, Wi-Fi CERTIFIED™ and Wi-Fi Protected Setup™ are marks of the Wi-Fi Alliance.


JENO Engine (Jitter Elimination and Noise-shaping Optimisation)

Twin Power Supply Circuit System

Clean Powered Clock Generator

Built-in Phono Equaliser compatible with MM Cartridge

Space Tune™

Supports a Wide Range of Music Content



Output Power

  • 60 W + 60 W (1kHz, T.H.D. 1.0 %, 4Ω, 20kHz LPF)

FTC Output Power

  • 40W + 40W ( 1kHz, T.H.D. 1.0 %, 4Ω, 20kHz LPF )

Load Impedance

  • 4Ω-16Ω

Frequency Response

  • PHONO (MM)

    • 20Hz - 20kHz ( RIAA DEVIATION ±1dB, 8Ω )
  • LINE

    • 20Hz - 80kHz ( -3dB, 8Ω )
  • DIGITAL

    • 20Hz - 90kHz ( -3dB, 8Ω )

Input Sensitivity / Input Impedance

  • PHONO (MM)

    • 2.5 mV / 47 kΩ
  • LINE

    • 200 mV / 22 kΩ

Analogue Input Terminal

  • LINE x 1
    PHONO (MM) x1

Digital Input Terminal

  • Optical digital x1
    Coaxial digital x1
    USB-A x1
    USB-B x1 (PC)

Analogue Output Terminal

  • Sub Woofer x1

Headphone Output

  • Yes, Stereo Φ3.5 mm

Disc Compatibility

  • Audio CD, CD-R/CD-RW (CD-DA, Discs recorded and finalized on recording devices)

USB-A

  • iPod/iPhone/iPad

    • No
  • Support Codec

    • WAV
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
    • FLAC
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
    • DSD
      • Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
    • AIFF
      • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
    • ALAC
      • Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
    • AAC
      • Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
    • MP3
      • Yes (32, 44.1, 48 kHz / 16-320 kbps)

PC(USB-B)

  • USB Audio Class Specification

    • USB 2.0 high-speed
      USB Audio Class 2.0, Asynchronous mode
  • Support Codec

    • LPCM Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
      DSD Yes (2.8 MHz, 5.6 MHz)
  • DSD contol mode

    • ASIO Native mode, DoP mode

MQA Decorder

  • Yes

LAN(DMR)

  • WAV

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
  • FLAC

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
  • DSD

    • Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
  • AIFF

    • Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
  • ALAC

    • Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
  • AAC

    • Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
  • MP3

    • Yes (32, 44.1, 48 kHz / 16-320 kbps)

Ethernet Interface

  • LAN (100 Base-TX/10 Base-T)

Wi-Fi

  • IEEE 802.11 a/b/g/n/ac
    2.4 GHz / 5 GHz Band

Chromecast built-in

  • Yes

AirPlay 2

  • Yes

Bluetooth® (Support codec)

  • Yes (AAC, SBC)

Tuner

  • DAB/DAB+/FM

Power Supply

  • AC 120 V, 60 Hz

Power Consumption

  • 46W

Dimensions (W x H x D)

  • 13-25/64 x 3-45/64 x 13-7/16 inch

Weight

  • Approx. 10.6 lbs

Accessories

  • AC Cord, DAB Indoor Antena, Remote Control, Batteries for Remote Control, Owner's Manual
