WiiM Mini – SoundHub

WiiM Mini

  • Sale
  • Regular price $179.00
Tax included.


Super easy setup

WiiM Mini will pop up automatically in the WiiM Home app. Follow the in-app guide
and start streaming music in less than 2 minutes.

Stream Hi-Res audio up to 192 kHz/24 bit.

WiiM Mini supports up to 192kHz, 24-bit audio output. That's the same as an artist's recording in the studio.


The integrated TI stereo DAC provides high-quality analog audio output with 106-dB SNR, dynamic range, and -92dB THD+N performance.

All your content in one app

We support many popular music streaming services in our WiiM Home app with more to come. Or connect to your NAS or local files to stream your favorite music.


Spotify Connect

Use your Spotify app as your remote to control music playback to your WiiM Mini. Spotify Connect works for both Spotify Free and Premium users.


AirPlay 2

Stream audio from your iPhone, iPad or Mac computer to one or multiple audio devices at the same time.

Works with Alexa

Play music with other Alexa devices in a group or use voice to control it from another Alexa built-in device.

TIDAL Connect

Use your TIDAL app as your remote to control music playback through WiiM Mini.

Play music everywhere with multi-room audio.

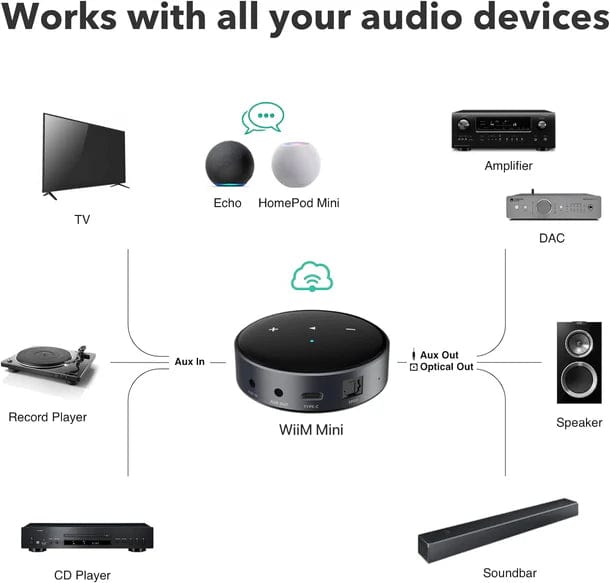

Building a wireless multiroom system has never been easier. Group WiiM Mini with other AirPlay 2 speakers, Alexa-enabled devices, or another WiiM Minis to have a multi-room/synchronized audio experience.

Automate your routines

Make your life easier by automating your routines. For your sleeping and wake-up routines, create a routine to wake up or fall asleep to your favorite music, station, or podcasts. Or, use your Alexa to create routines.

Audio Codec

MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG

Wi - Fi

Dual band Wi-Fi supports 802.11 a/b/g/n/ac 2.4 GHz and 5 GHz network

Bluetooth

Bluetooth 5.2, SBC and AAC codec, BT receiver and transmitter (with SW update)

Line in

1Vrms

Line out

Line in to Line out:
Power Output=2Vrms
THD+N Ratio=0.009%
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB
BT in to Line out:
Power Output=2Vrms
THD+N Ratio=0.009%
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB

SPDIF

Line in to SPDIF out:
Power Output=-3dBFS
THD+N Ratio=0.005%
SNR=102dB
Crosstalk=-103dB
Dynamic Range=97dB
BT in to SPDIF out:
Power Output=0dBFS
THD+N Ratio=0.005%
SNR=297dB
Crosstalk=-364dB
Dynamic Range=213dB

Power Supply

5V,1A

LED

Three color status LED - Red, Green and White.

WiiM Mini LED Behaviors >


Button

Capacitive touch - Play/Pause, Volume+, Volume-
