Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.

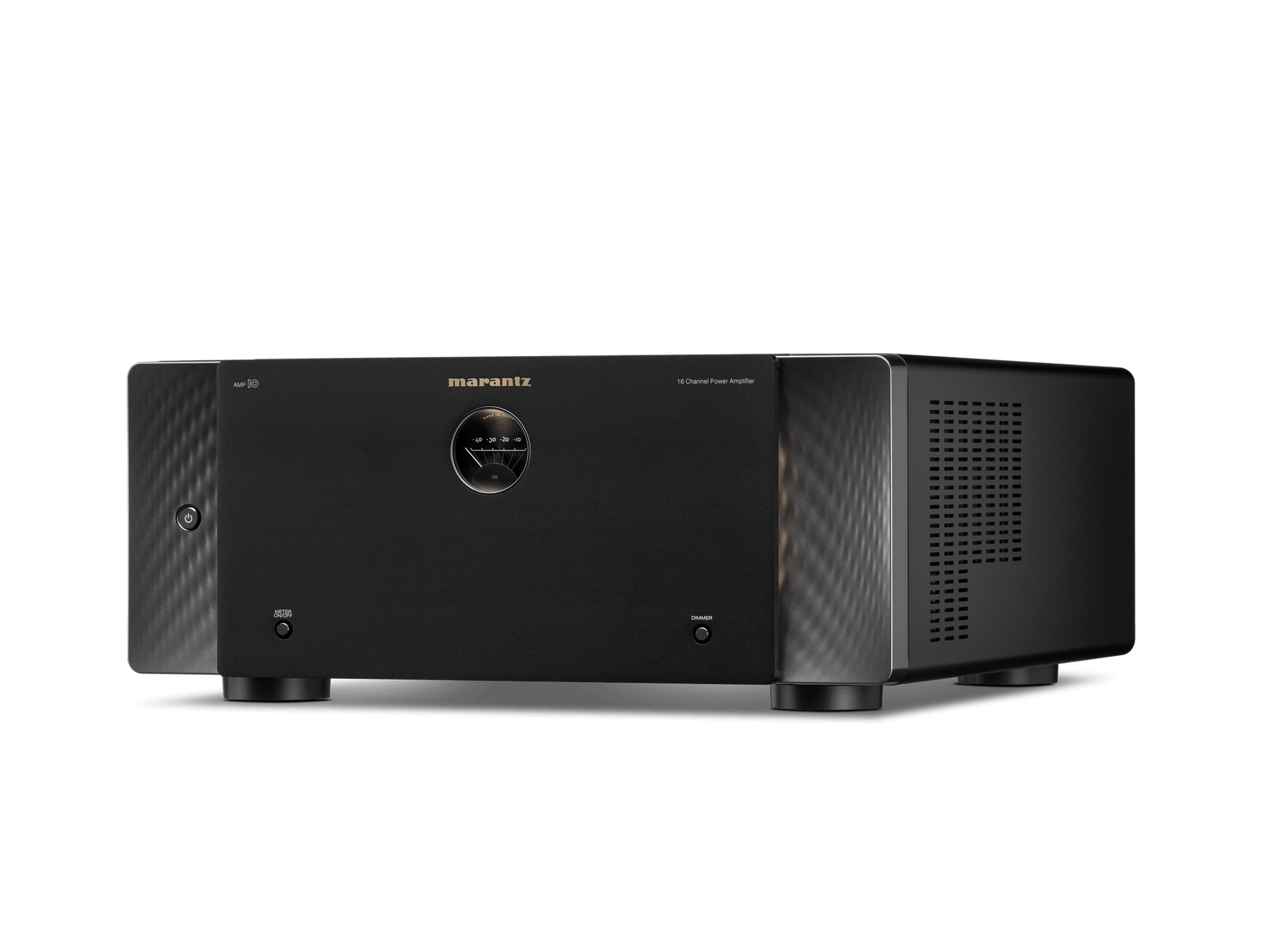

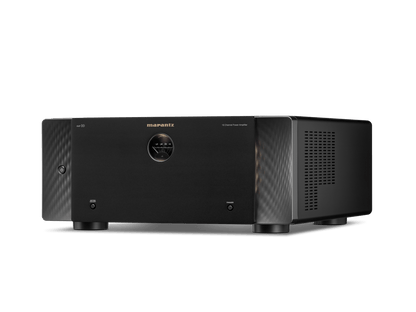

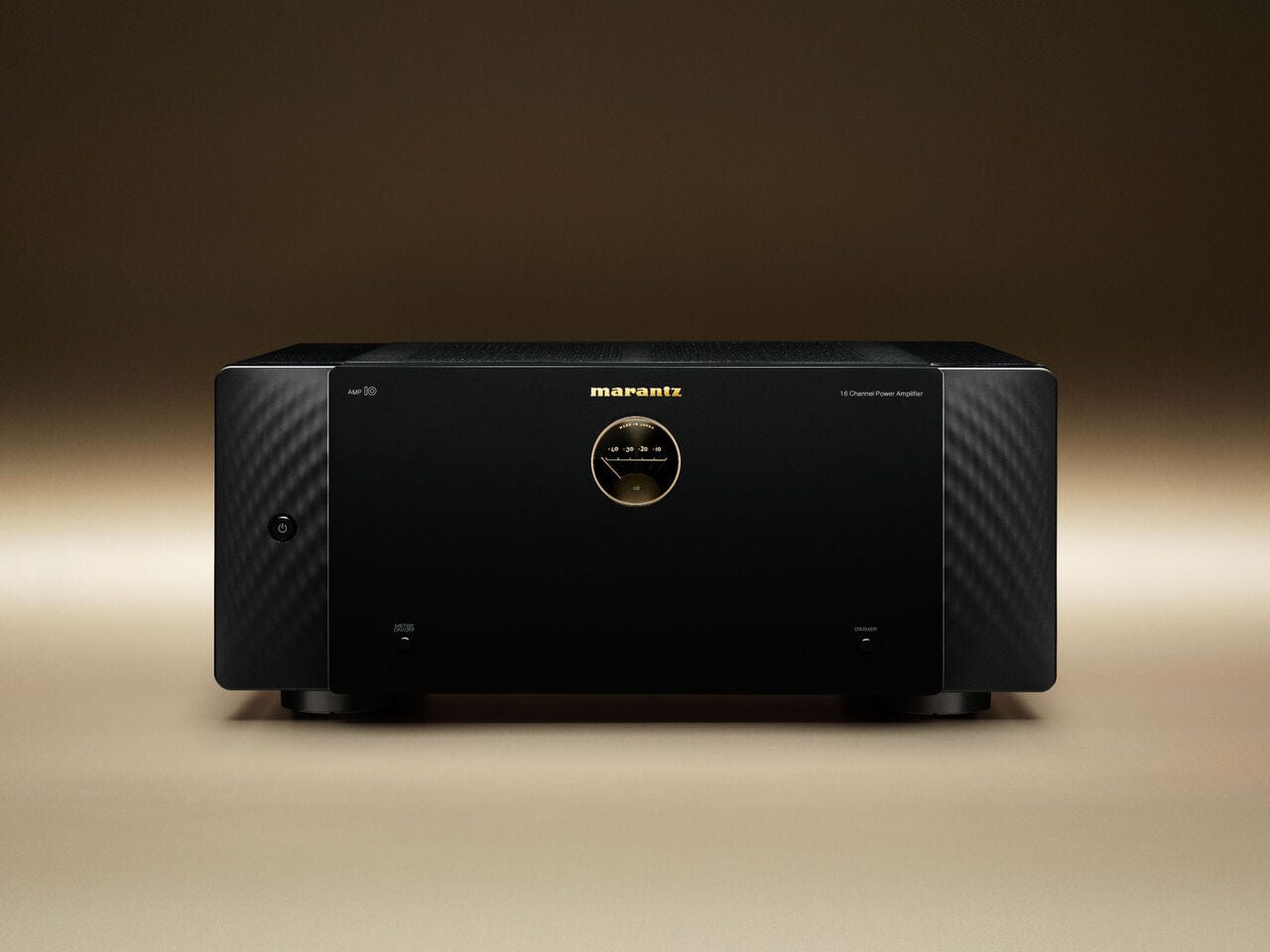

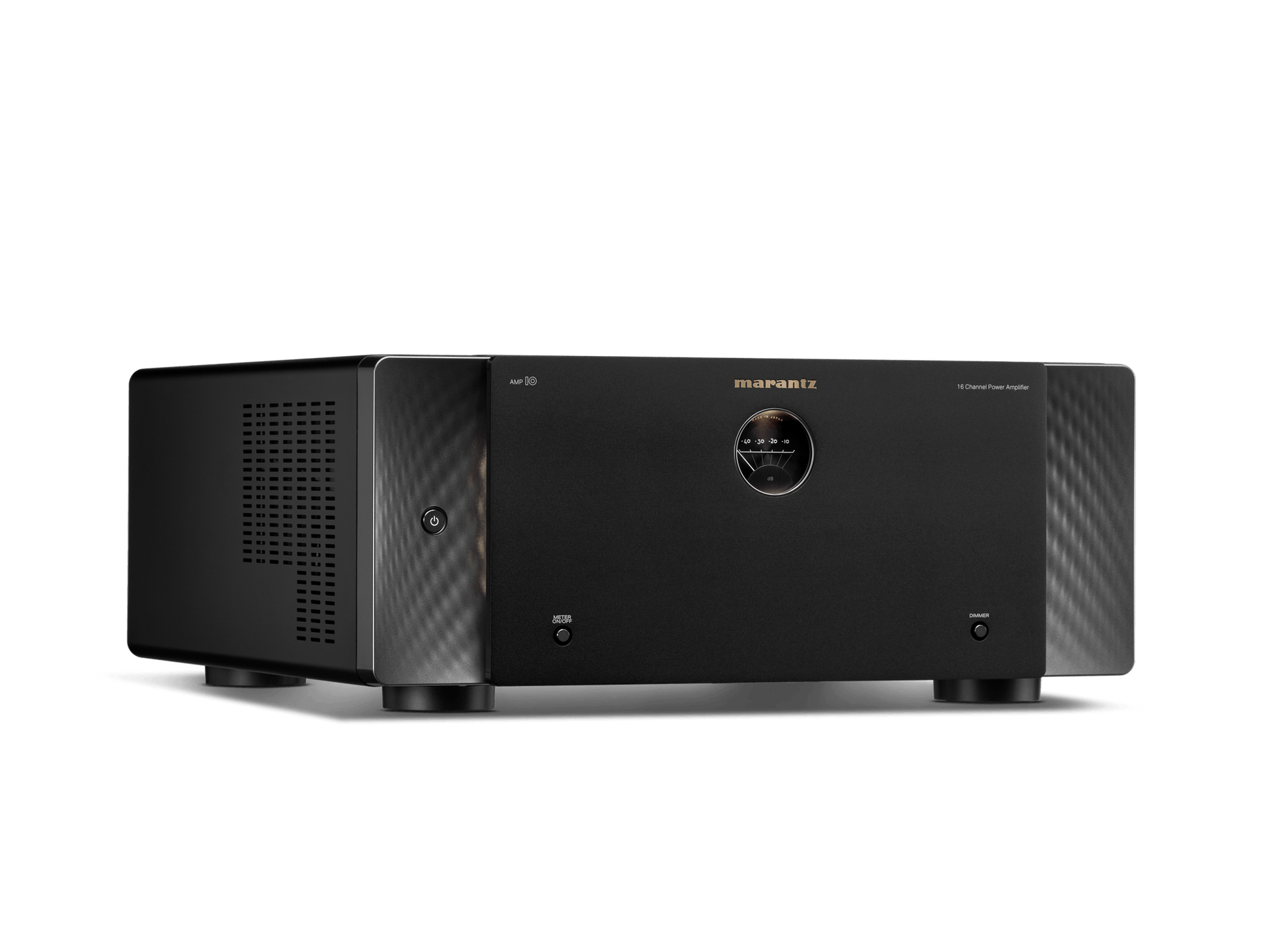

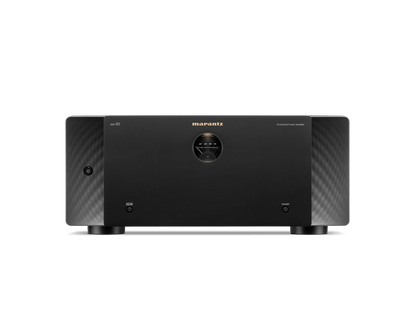

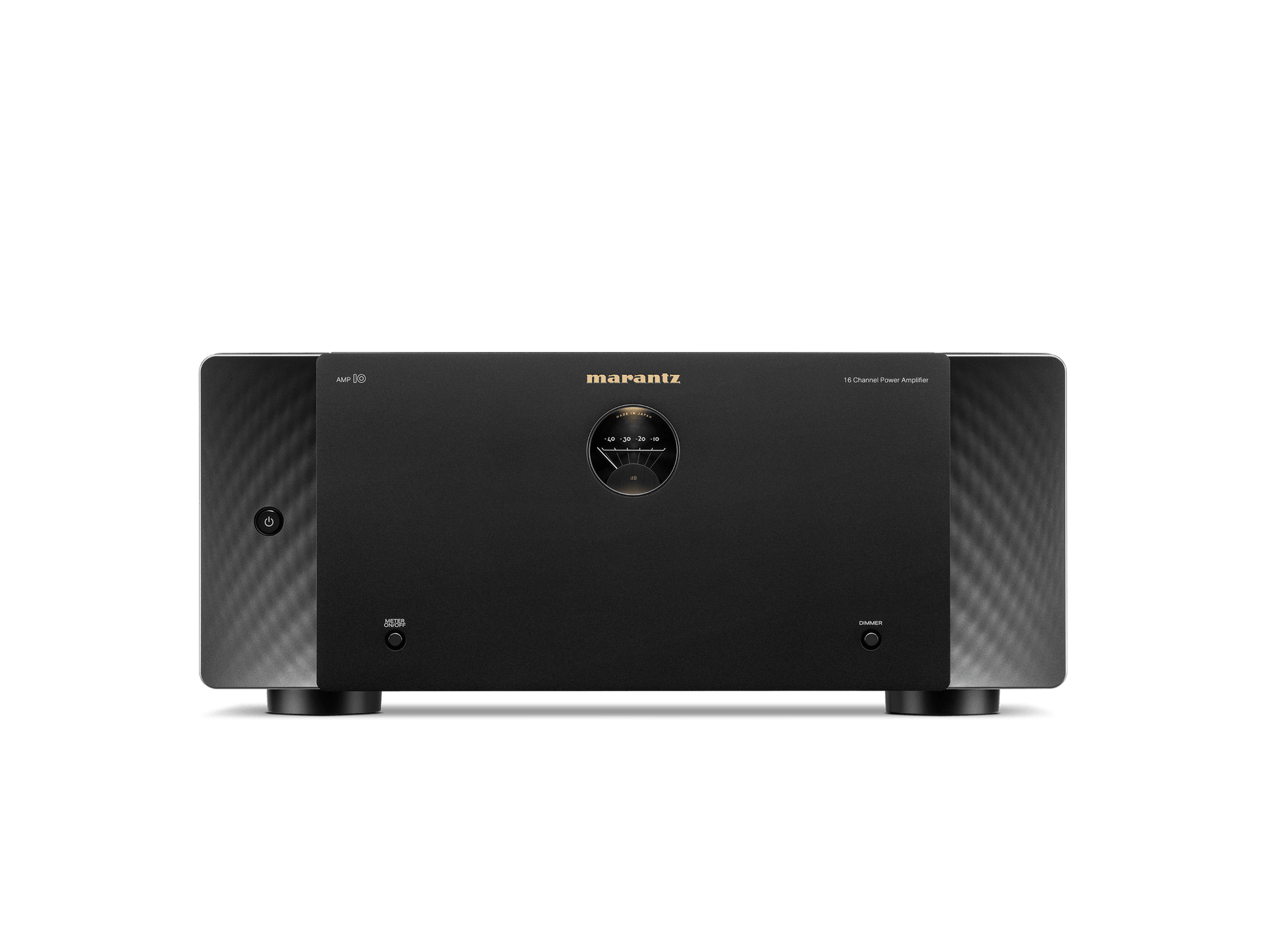

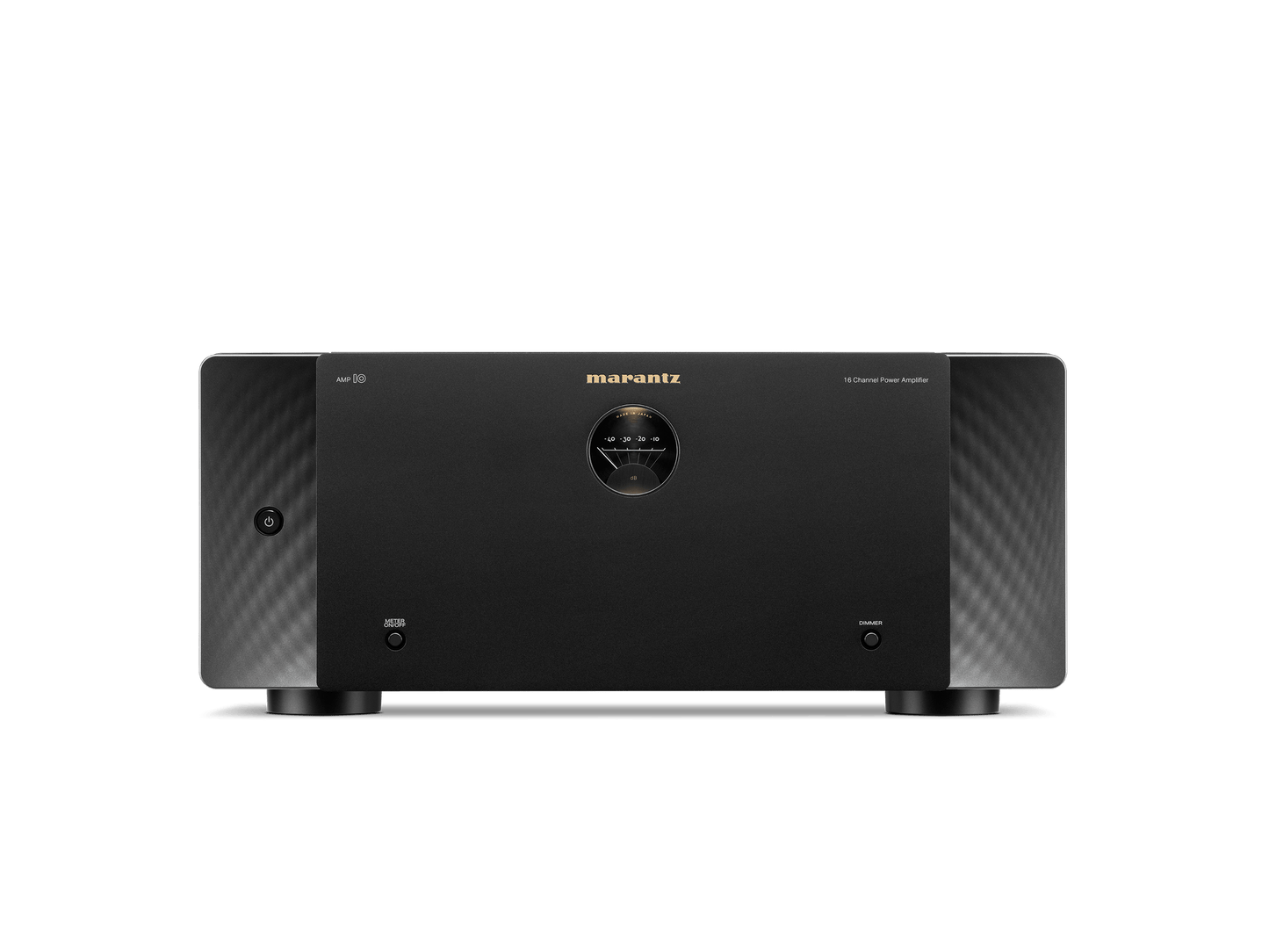

A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.
We developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.
The Marantz Sound Master meticulously tuned AMP 10 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.
AMP 10 is engineered using best-in class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.
Details & Specifications
Multi-Room CI
-
IP Control / RS232 Control / Web Control / App Control No / Yes / No / No
-
IR Flasher In Yes
-
Marantz Remote Bus Yes
-
DC Trigger Input/ Output 1 / 1
Others
-
Front Display Level Meter
-
Firmware Update by Network / USB / RS232C No / No / No
-
Auto Power off Yes

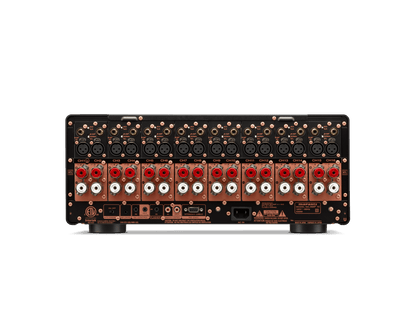

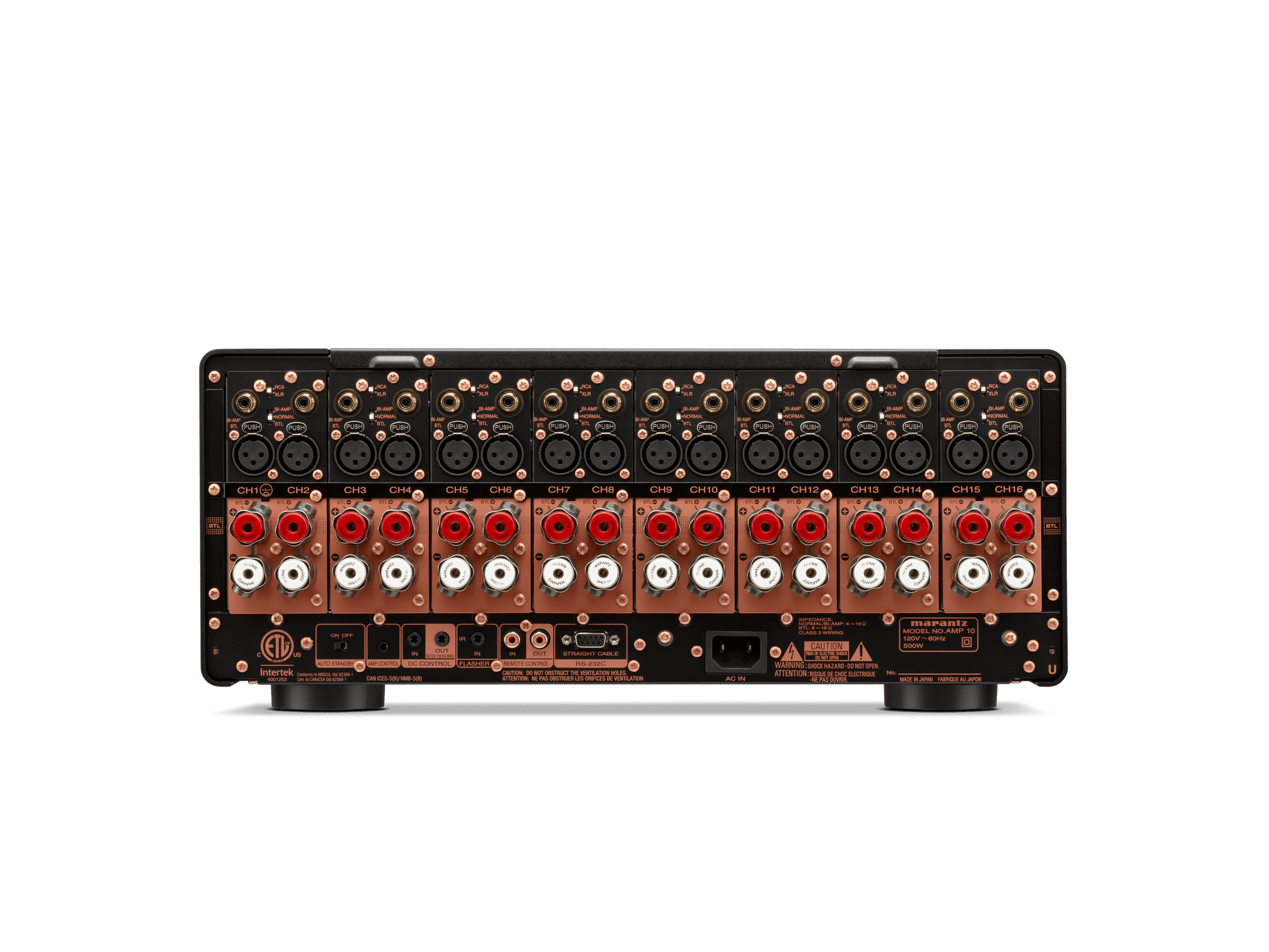

Inputs Outputs
-
Main Amplifier in Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
-
Speaker Terminal SPKT-1+
-
Number of Speaker Terminals 16
-
Bi-Amp Drive /BTL Drive Yes / Yes
-
Level Meter Yes
-
Chasiss Copper Plated
Specifications
-
Number of poweramps 16
-
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
-
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
-
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W
-
70% Guarantee(Normal/Bi-Amp/BTL) Yes
-
100% Guarantee(Normal/Bi-Amp) Yes
General
-
Metal Front Panel Yes
-
Pre-Programmed / Learnable / LCD Display No / No / No
-
Power Consumption in W 500
-
Power Consumption No-Sound in W 140W
-
Standby Consumption in W 0.2
-
Maximum Dimensions 【 17.4 x 19.2 x 7.4 】
-
Weight in lbs. 43.7
-
What's in the box Main unit, quick start guide, AC cord,
Amp control cable, Remote control cable,
SP terminal wrench
