Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.

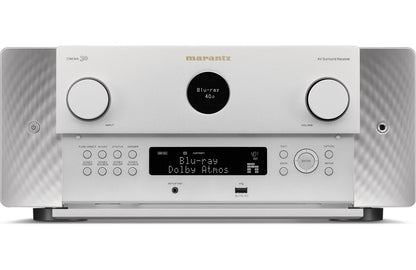

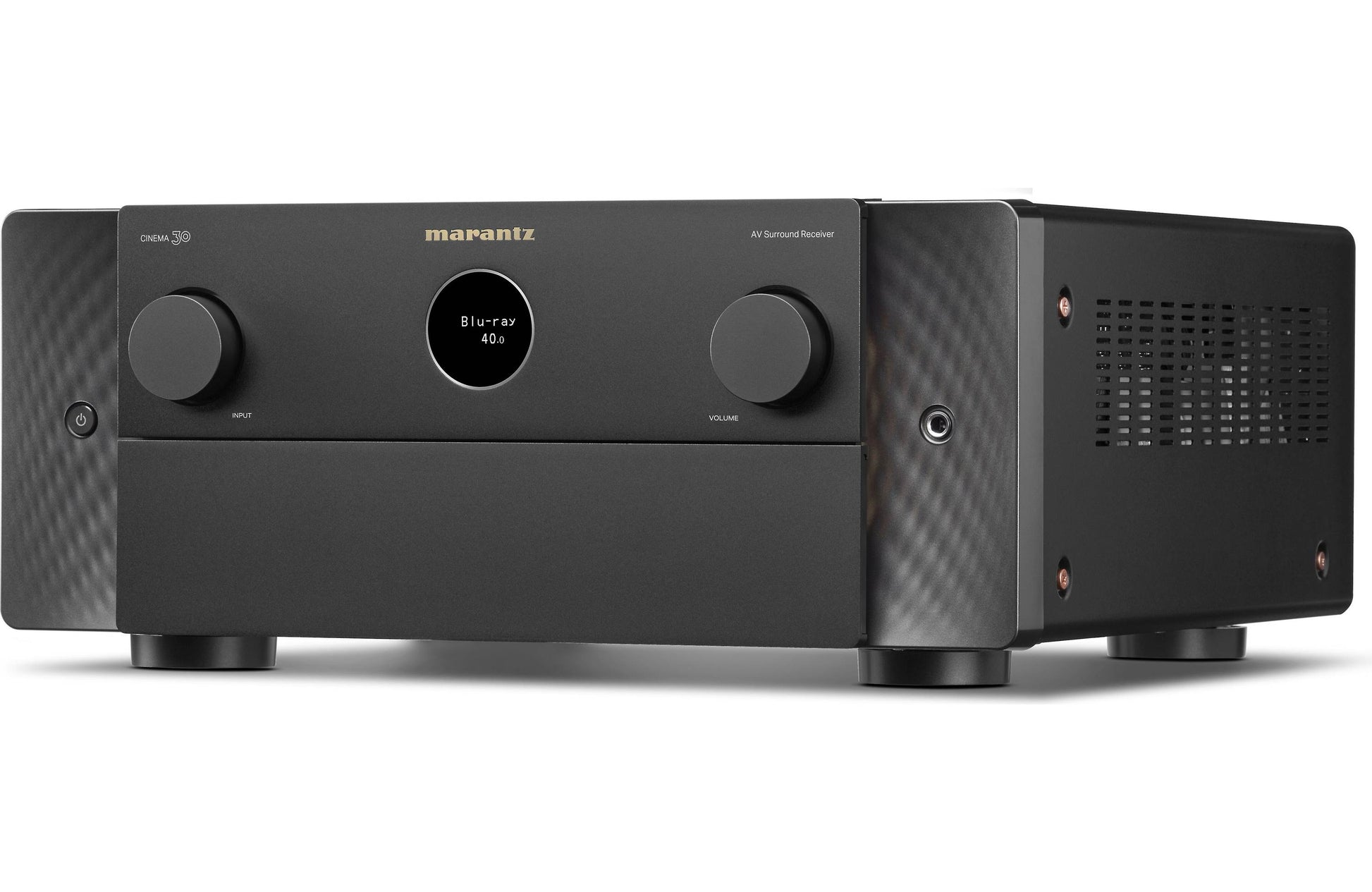

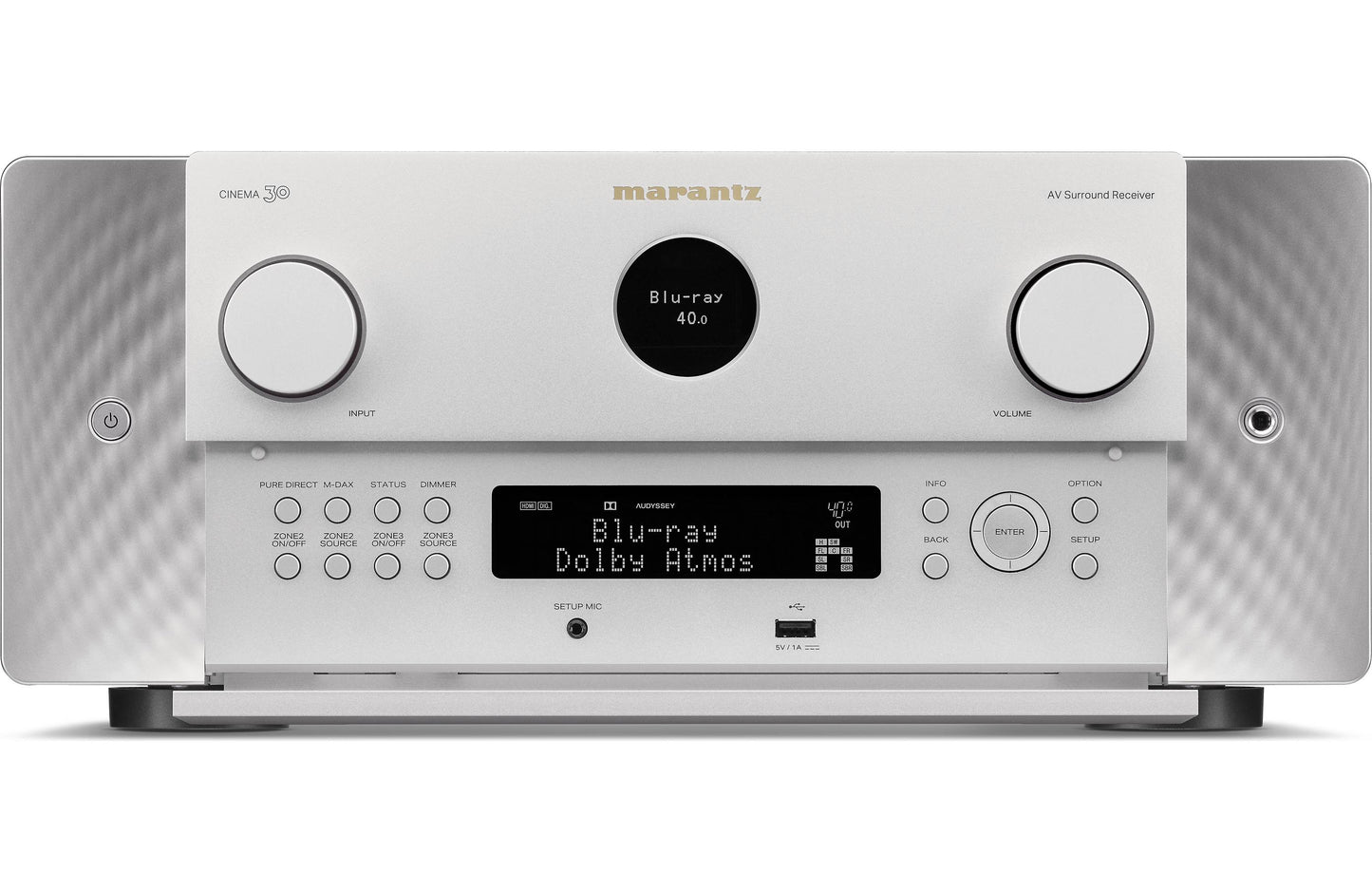

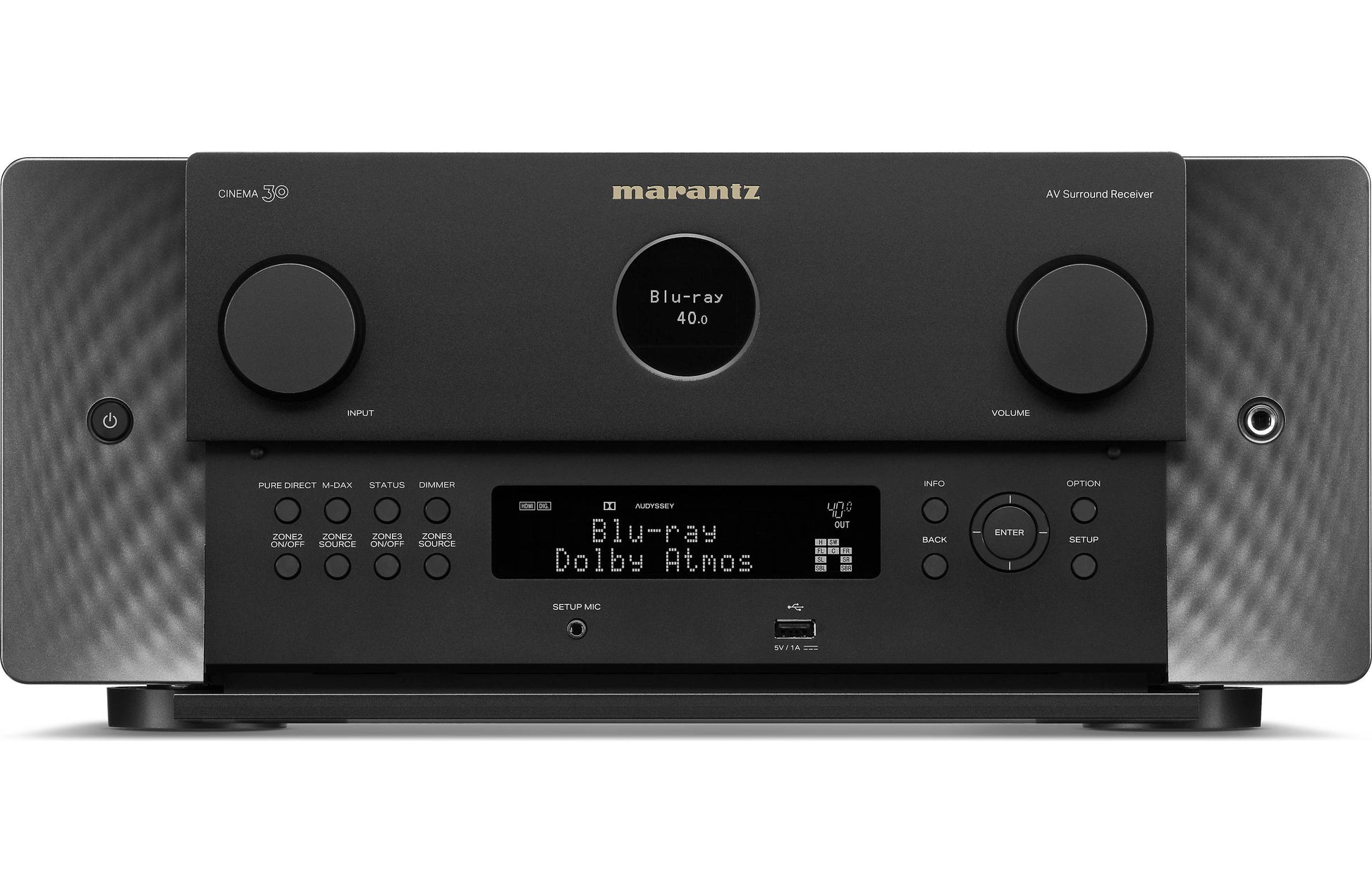

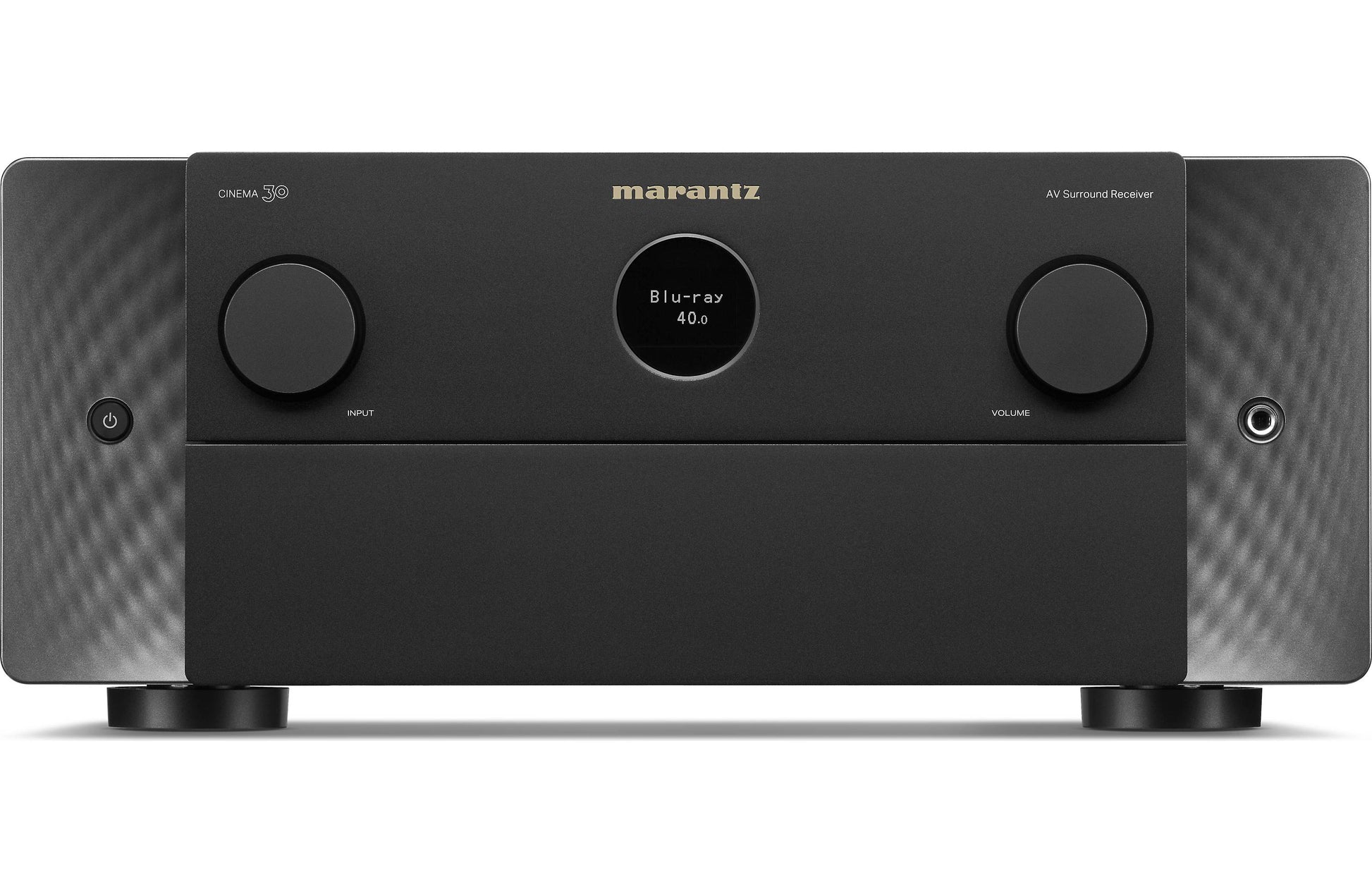

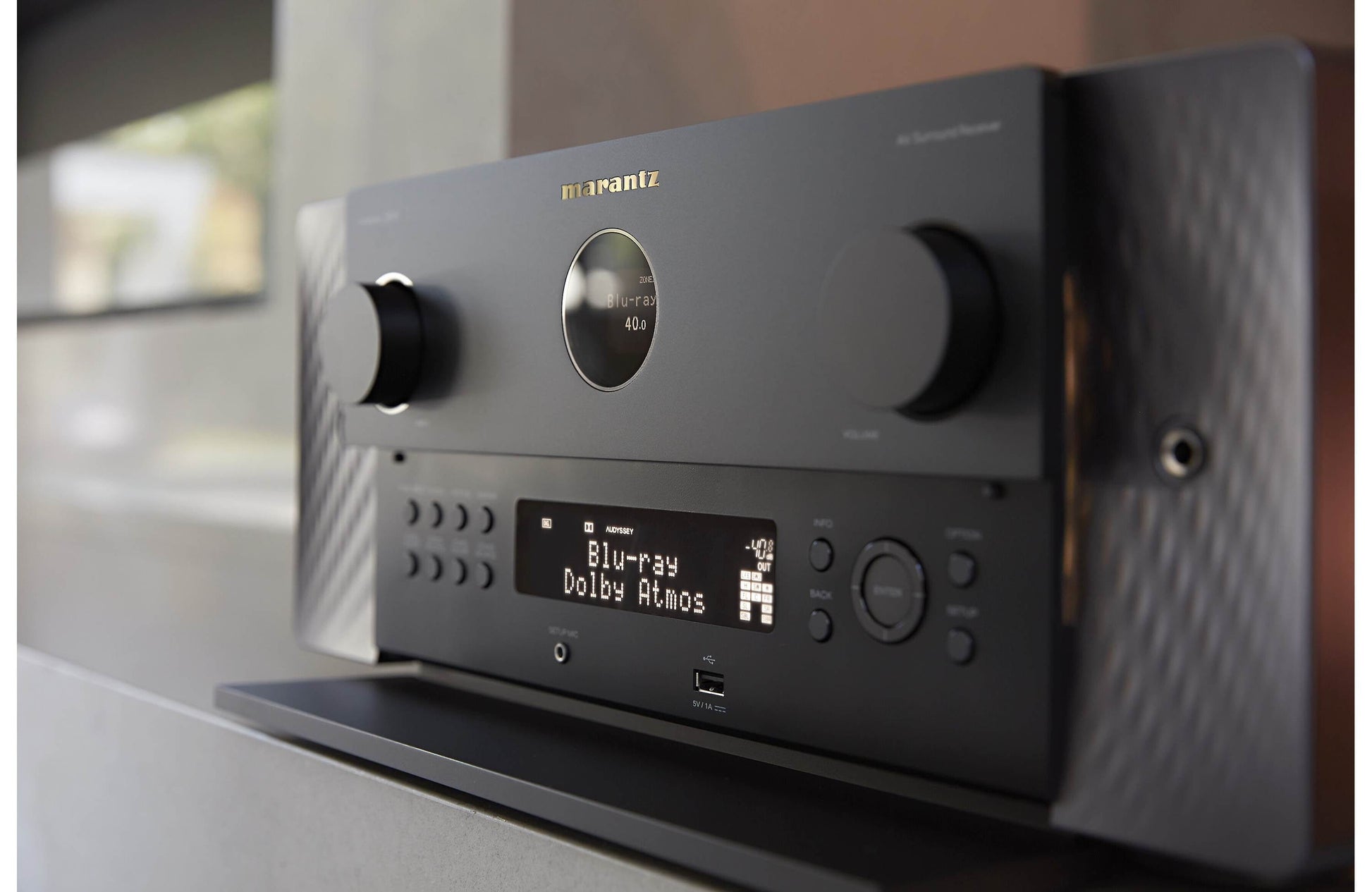

Excellence is heard and seen. CINEMA 30 is meticulously crafted in Japan with authentic materials in a modern style, befitting its rich heritage and stunning performance.
HiFi performance technologies like HDAM SA-2, and more elevate the CINEMA 30 to performance levels seldom found in an AVR.
Powerful calibration and tuning tools are included, enabling you to get the best performance from your system.
Seven HDMI inputs, plus digital, analog, and phono inputs – even analog video plus loudspeaker and pre-amp outputs – ensure connectivity to virtually any components you have.
Details & Specifications
Power Amplifier
-
Number of Powered Channels 11
-
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) -
-
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) 140 W
-
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 175 W
-
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 250 W
-
70% Guarantee Yes
-
Discrete Power Amplifier Yes
-
Amplifier Topology Class A/B
-
Current Feedback Topology yes
-
Bi-Amp Drive assignable
Multichannel Surround Technologies
-
DTS DTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X
-
Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
-
Other
-
Max Number of Processing (Preamp) Channels 13.4
-
IMAX Enhanced Yes
-
Auro 3D Yes
-
Audyssey DSX Yes
-
Multichannel Stereo Yes

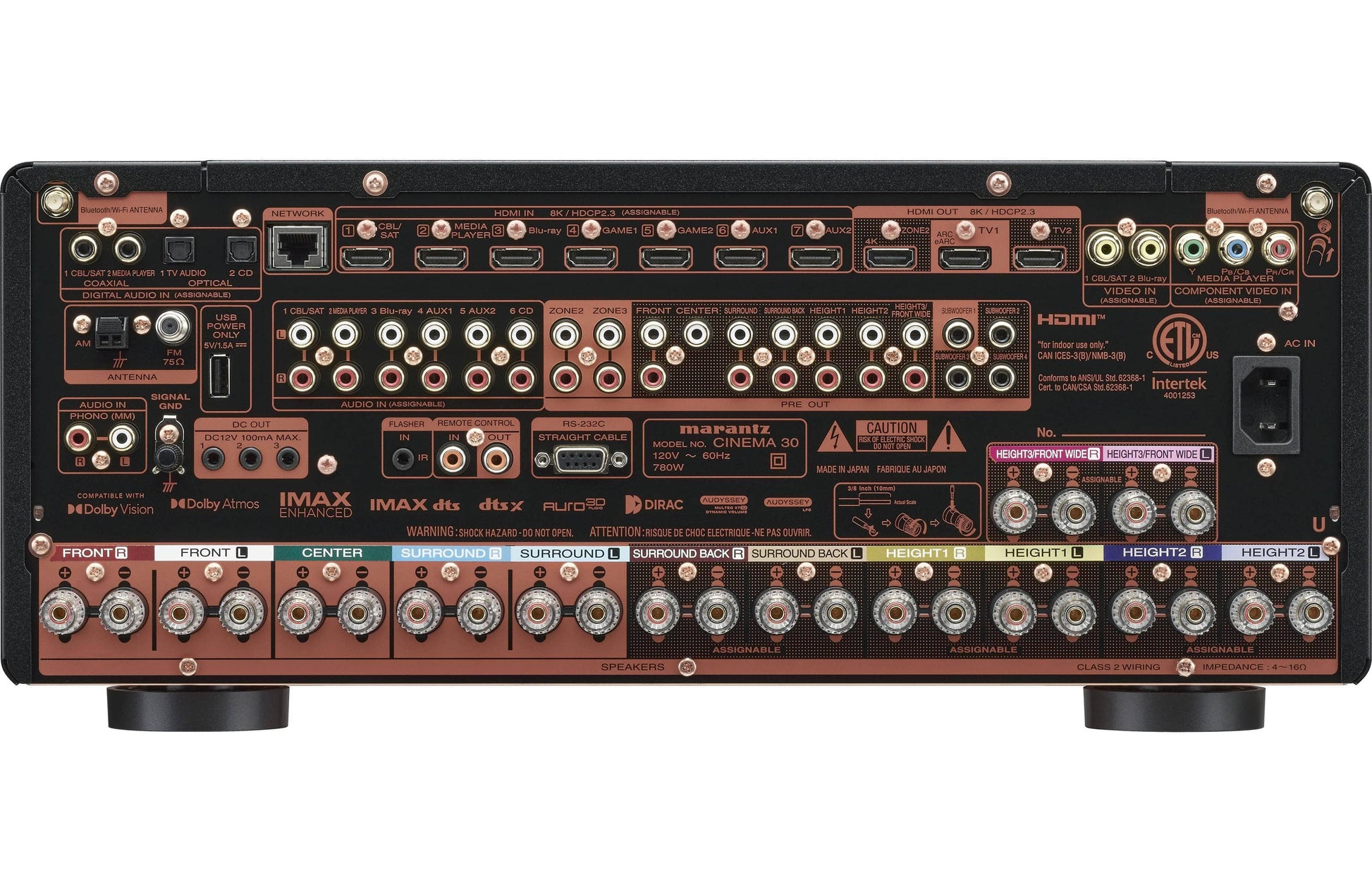

Inputs Outputs
-
Composite In / Out 2 / 0
-
Component In / Out 1 / 0
-
HDMI In / Out 7 / 3
-
Multi-Room Video Out via HDMI 0 / 0
-
Analog In / Fixed Level Out 3 in / 0 out
-
Phono (MM) In Yes
-
Digital In: Optical / Coaxial 2 / 2
-
Multi-Room Out: analog / digital 2 / 0
-
Multichannel Preamp Out 7.2
-
Subwoofer Out 4 (independent)
-
7.1 multichannel input No
-
Number of Speaker Terminals 13
-
Speaker A / B assignable
-
Multi-Room Speaker Terminal assignable
-
Front Inputs USB-A
-
USB Audio Yes / No / No
-
FM Tuner with RDS Yes
-
DAB+ Tuner No
-
Multi-Room Video Out: Video / HDMI 7/3
-
analog In/out 6 / 0
-
Multichannel Pre Out Yes (13.4)
-
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
HDMI
-
Total HDMI Inputs / No. Support 8K 6 / 3
-
HDCP2.3 support Yes
-
HDMI Outputs: Main / Zone 2 / 1
-
Analog to HDMI Video Conversion No
-
HDMI Upscaling 1080P/4K to 8K
-
Max resolution @ framerate
-
Audio Return Channel ARC, eARC
-
Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
-
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
-
Variable Refresh Rate / Quick Frame Transport Yes / Yes / No
-
HDMI Pass-Through in Standby Mode Yes
-
CEC Yes
-
DSD Audio over HDMI No
-
Auto LipSync Yes
-
HDMI Inputs: Back / Front 7 / -
-
Video Conversion Analog -> HDMI Yes
-
HDMI to HDMI Scaling 1080P/4K to 8K
-
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
-
8K/60Hz AB / 4K/120Hz AB Pass-through In/Out 7 / 2 (up to 40Gbps)
-
HDMI 2.0: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes
-
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
-
Variable Refresh Rate / Quick Flame Transport / Quick Media Switching Yes / Yes / No
-
8K signal pass-through / scaling / GUI overlay o / o / o
-
4K Signal Pass-Through / Scaling / GUI Overlay o / o / o
-
DSD Audio Capability Yes
Performance Technologies
-
Copper Plated Chassis Yes
-

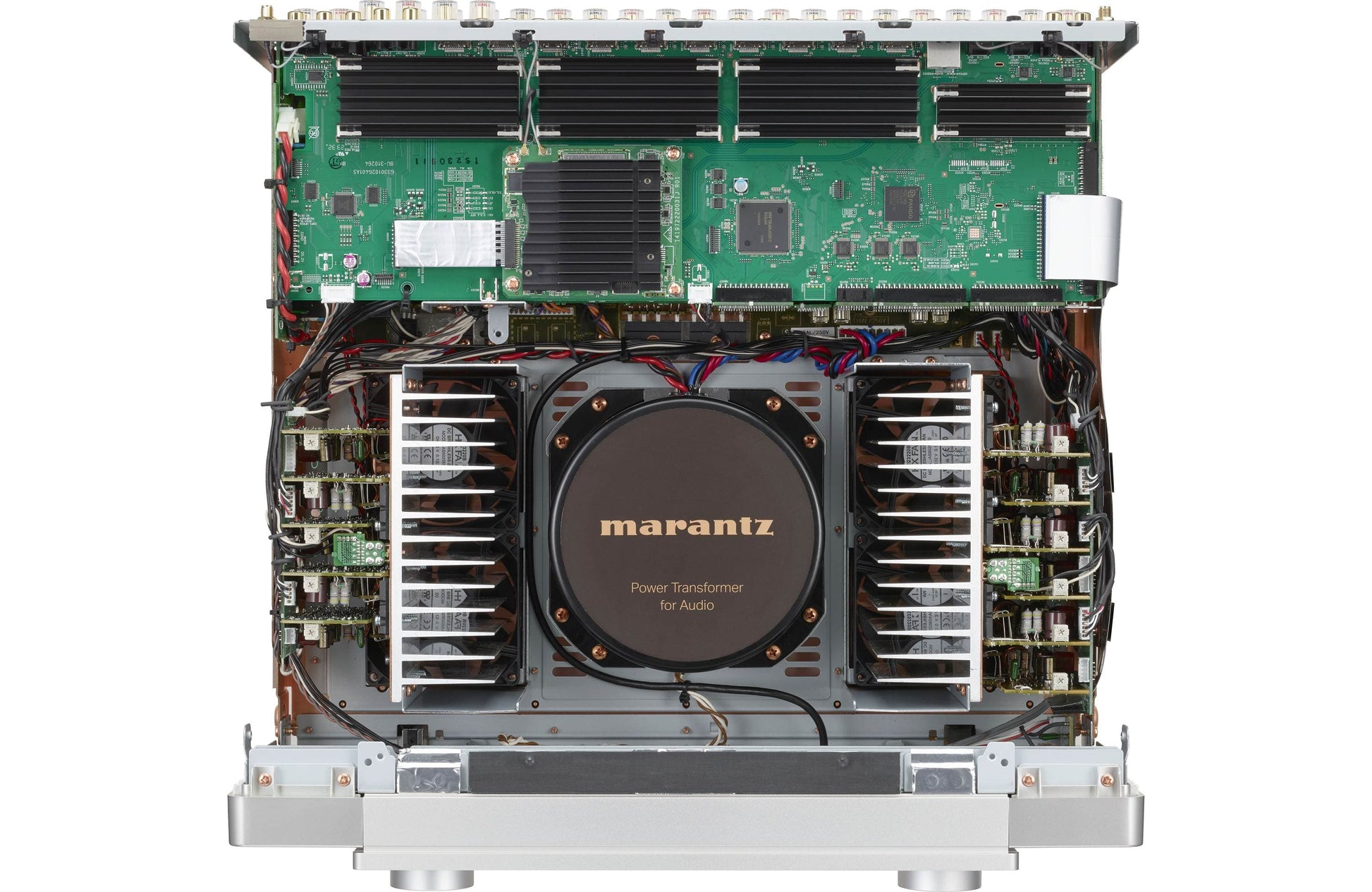

Toroidal Power Supply Transformer Yes
-
Hyper Dynamic Amplifier Modules (HDAM) (List version) Yes
-
Pure Direct Mode Yes
-
Gold Plated RCA Terminals Yes
-
Clock Jitter Reducer Yes
Acoustic Room Correction
-
Audyssey MultEQ XT32
-
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
-
Audyssey LFC Yes
-
Dirac Live Support Yes
-
Variable Cross Over Yes
-
Optimized Bass Redirection Yes
-
Bass Sync Yes
-
Dirac Live Upgradability Yes
Music File Support
-
Lossy Formats MP3 / WMA / AAC
-
Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
-
DSD Audio 2.8 MHz / 5.6 MHz
-
Gapless Playback FLAC, WAV ,ALAC ,DSD
-
Compressed Audio Enhancer: MDAX2 Yes
-
Network Audio Sharing Yes
Streaming Services
-
HEOS Multi-room and Streaming Yes
-
AirPlay Audio Streaming AirPlay2
-
Internet Radio TuneIn
-
Spotify* Spotify Connect
-
Pandora Yes
-
SiriusXM Yes
-
Other Streaming Services * Amazon Music HD/
Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
-
Roon tested Yes
Network Connectivity
-
Ethernet Ports Yes
-
Wi-Fi (include version / band) Yes
-
Bluetooth (Include version) Yes
-
Bluetooth Re-transmit for Bluetooth headphones Yes
Smart Home Integration and Control
-
Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod
-
App for Smart Phones & Tablets (iOS & Android) Marantz AVR App
-
HEOS Multi-Room Integrated Yes
-
HEOS Link Compatibility: IR/ IP Yes /Yes
-
Multi-Room zones 2
-
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
-
Zone Audio Output: Speaker / Preout Yes / Yes
-
Zone HDMI Output from HDMI Source Yes
-
Control Connectivity IP Control / RS232 Control / Web Control / App Control
-
IR Flasher In Yes
-
Marantz Remote Bus Yes
-
DC Trigger Output 3
-
HDMI Diagnostics Yes
Others
-

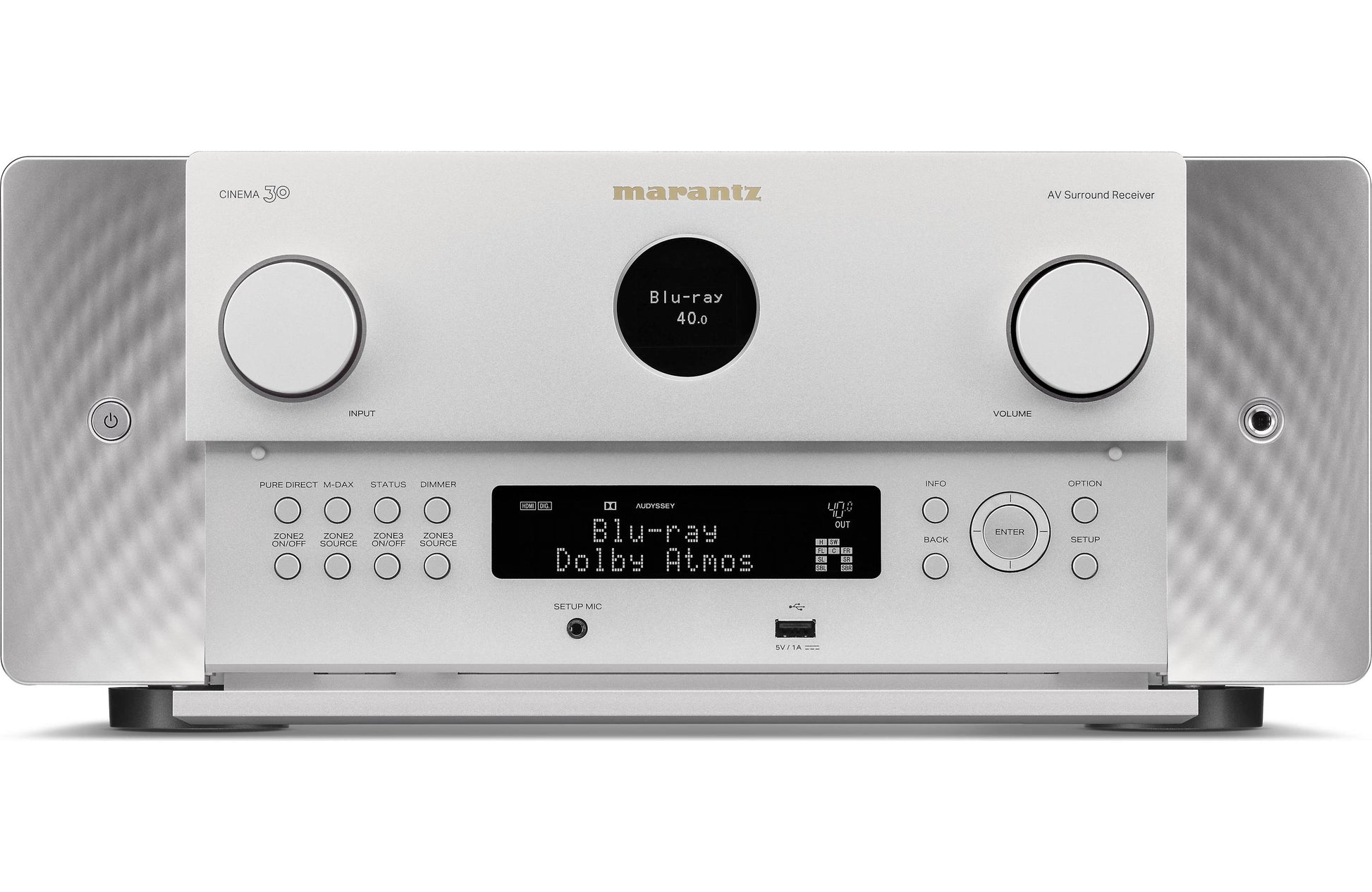

Front Display 2 line FLD + port hole OLED
-
Primary Display Size (diagonal in/mm)
-
Secondary Display Size (diagonal in/mm)
-
GUI Languages 3
-
Setup Assistant Yes
-
Smart Select on Remote Yes
-
Firmware Update by Network / USB Yes / Yes
-
ECO Mode Yes
-
Auto Power off Yes
-
Sleep Timer Yes
-
GUI Overlay on HDMI
-
CEC Yes
-
Auto Speaker Setup by Microphone Audyssey MultEQ XT32Dirac Live (upgrade)
-
Graphic User Interface - GUI Modern HD GUIModern HD GUI
-
Smart Select Yes
General
-

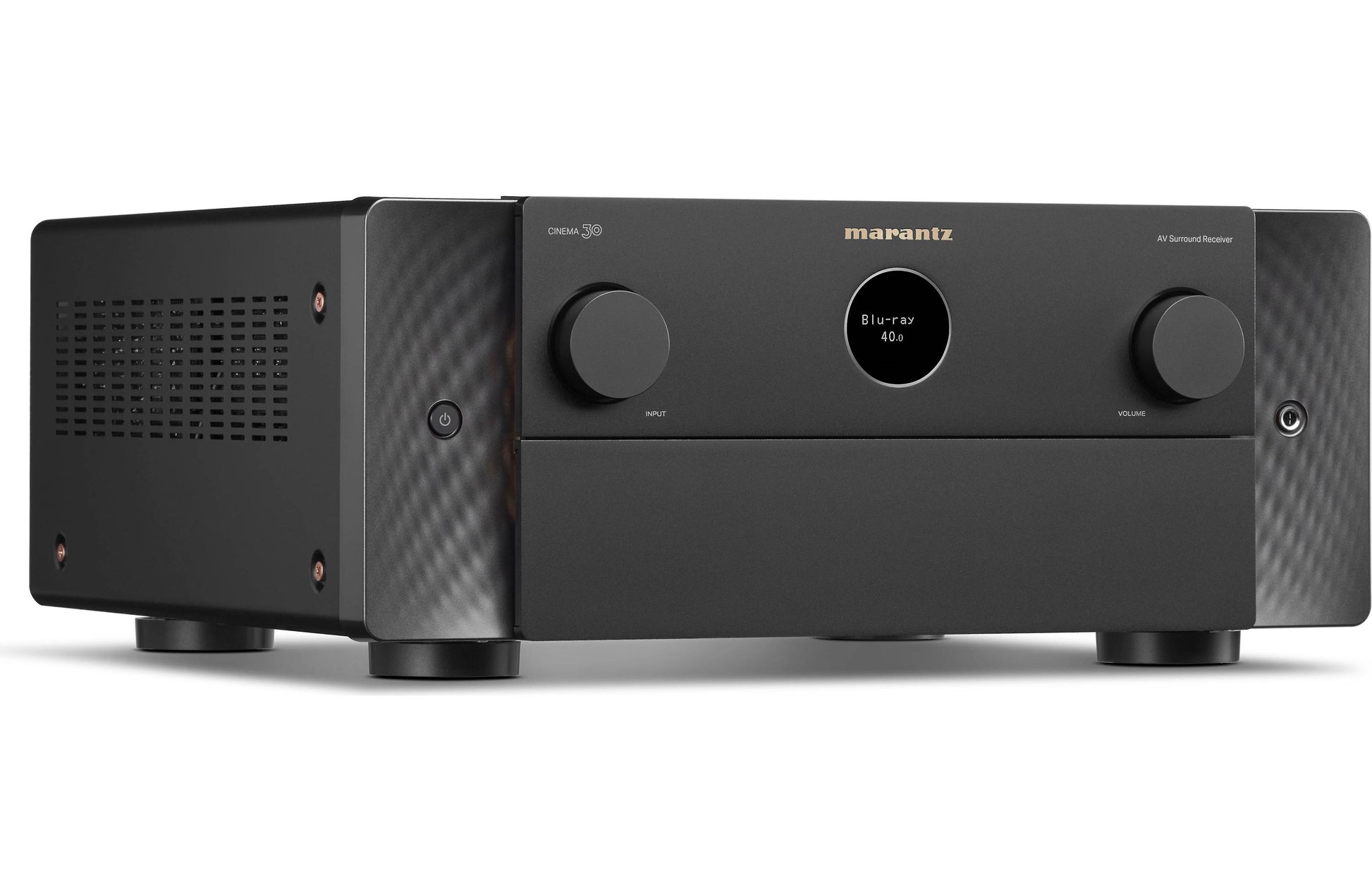

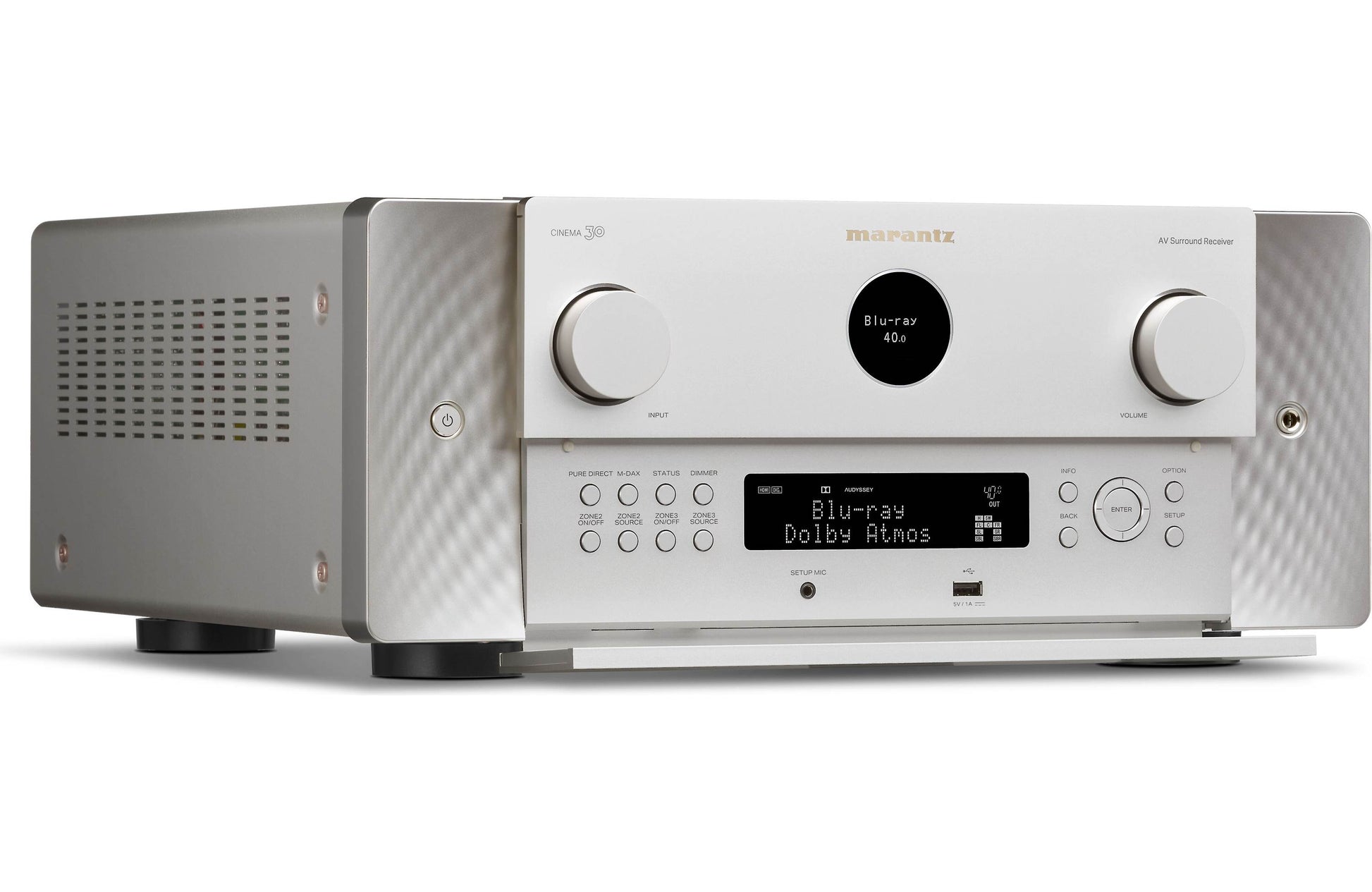

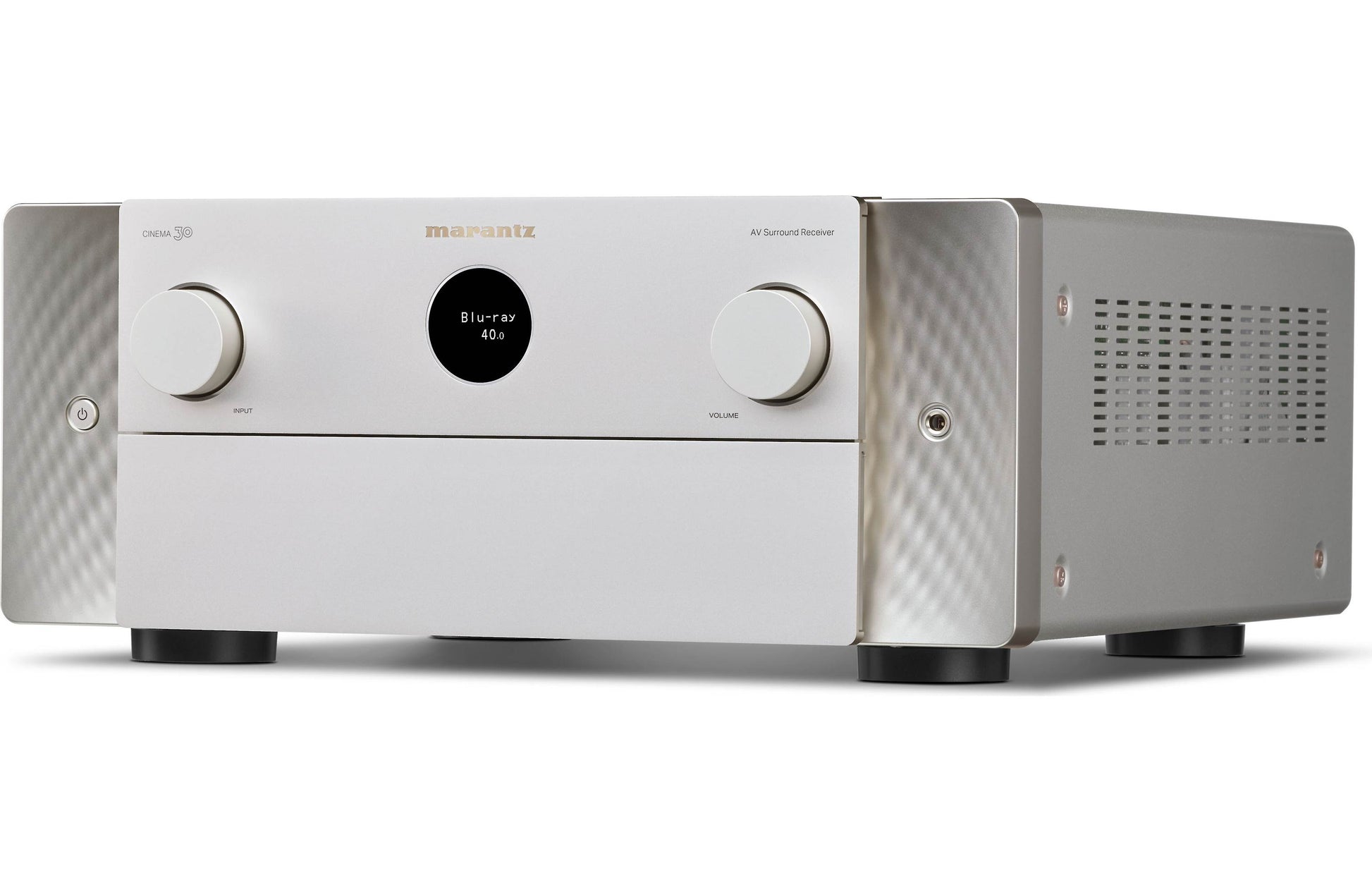

Available Colors Black/Silver-Gold
-
Metal Front Panel Yes
-

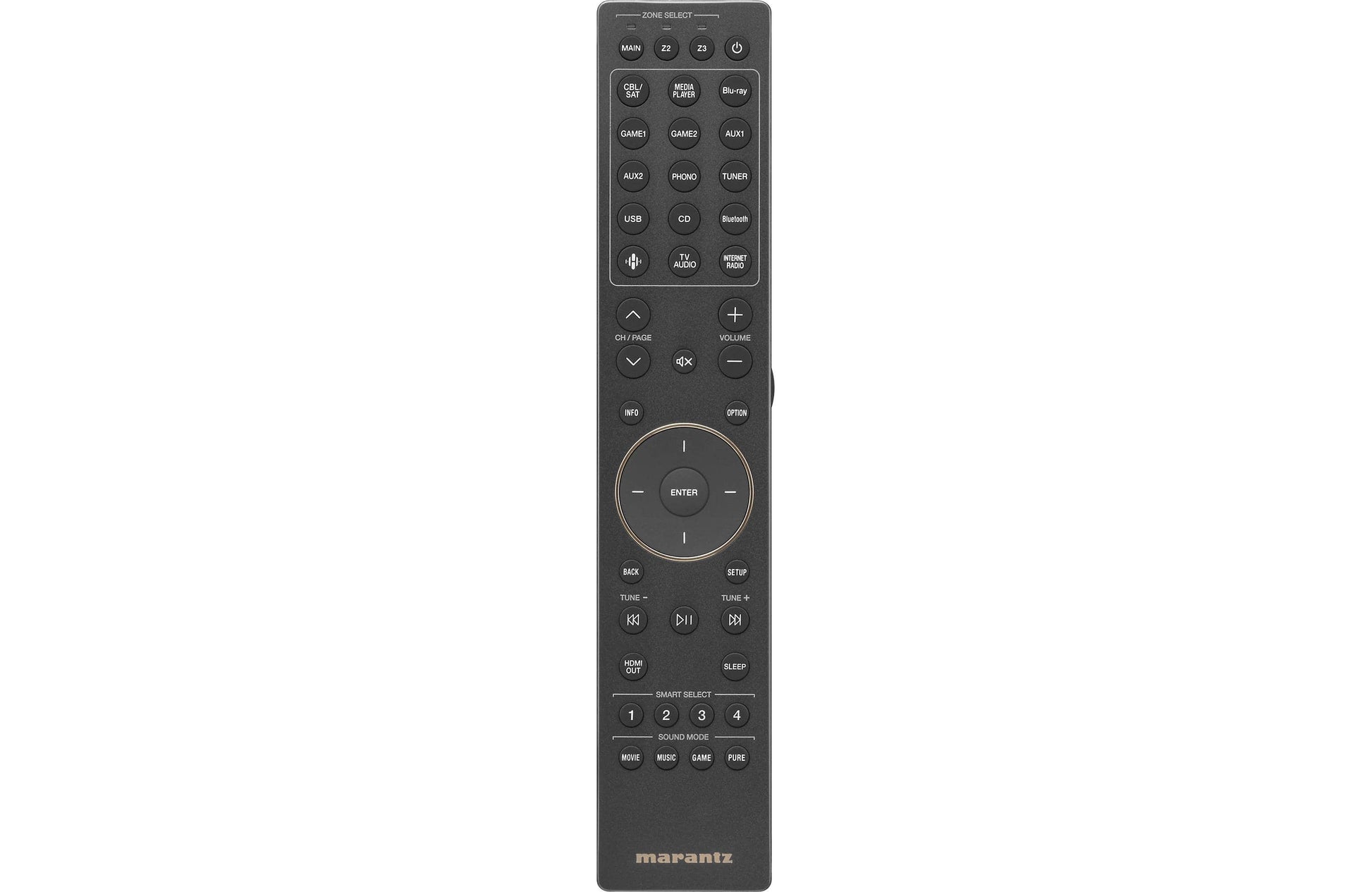

System Remote Control RC-051SR
-
Power Consumption in W 780
-
Power Consumption No-Sound (ECO on/off) in W 65 W / 110 W
-
Standby Consumption in W 0.2
-
CEC Standby Consumption in W 0.5
-
Network Standby Consumption in W Less than 2.0
-
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm 442 x 384 x 109
( 442 x 384 x 178 )
【 442 x 372 x 109 】
-
Weight in kg 8.7
-
What's in the box Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antennas, AC cord
-
Weight in lbs. 42.8
-
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
Antenna:Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches 17.4 x 18.0 x 7.5
(17.4 x 18.0 x 10.2)
【17.4 x 17.6 x 7.5】
-
Pre-Programmed / Learnable / LCD Display Yes / Yes / Yes
