Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.

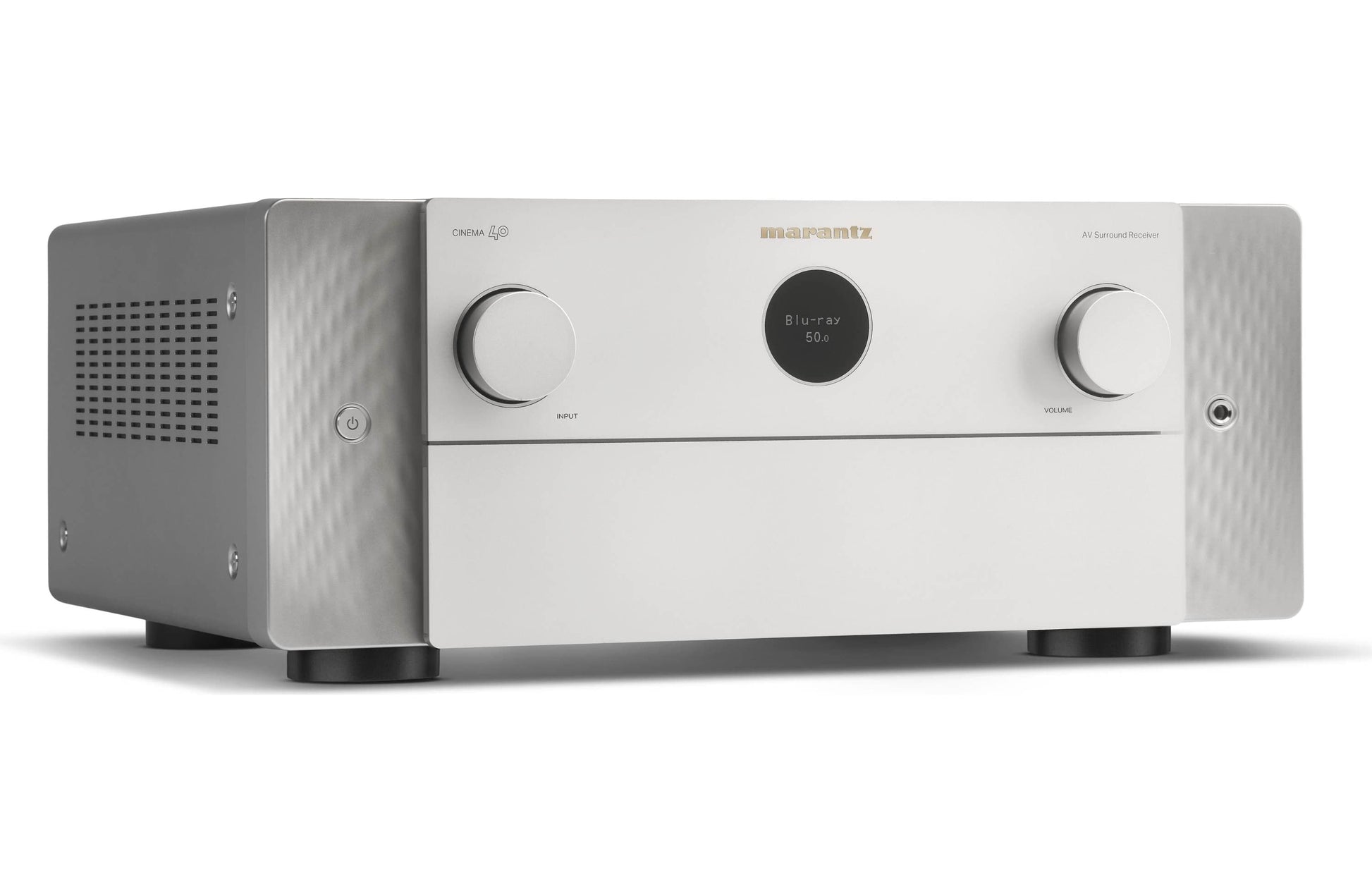

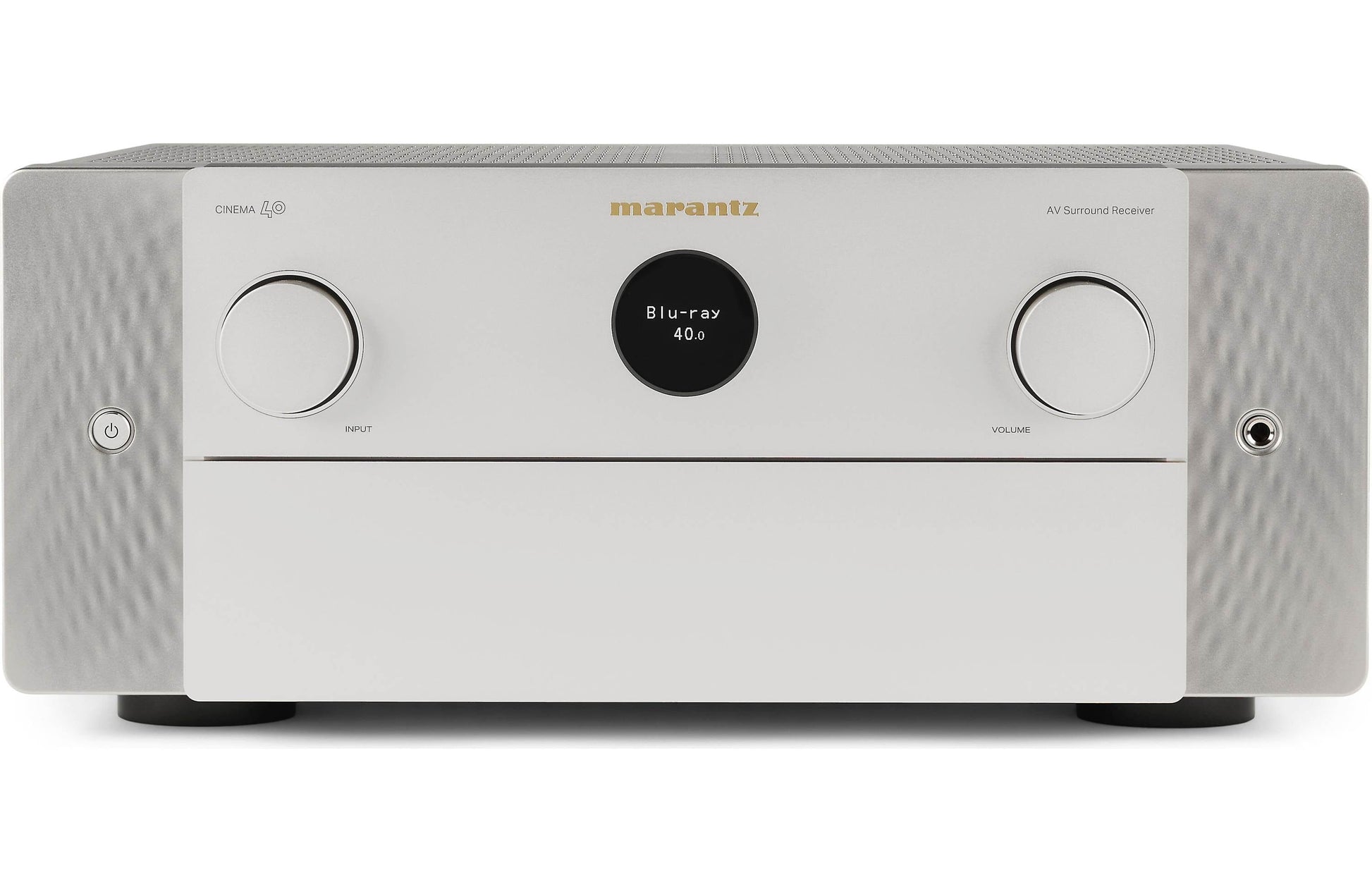

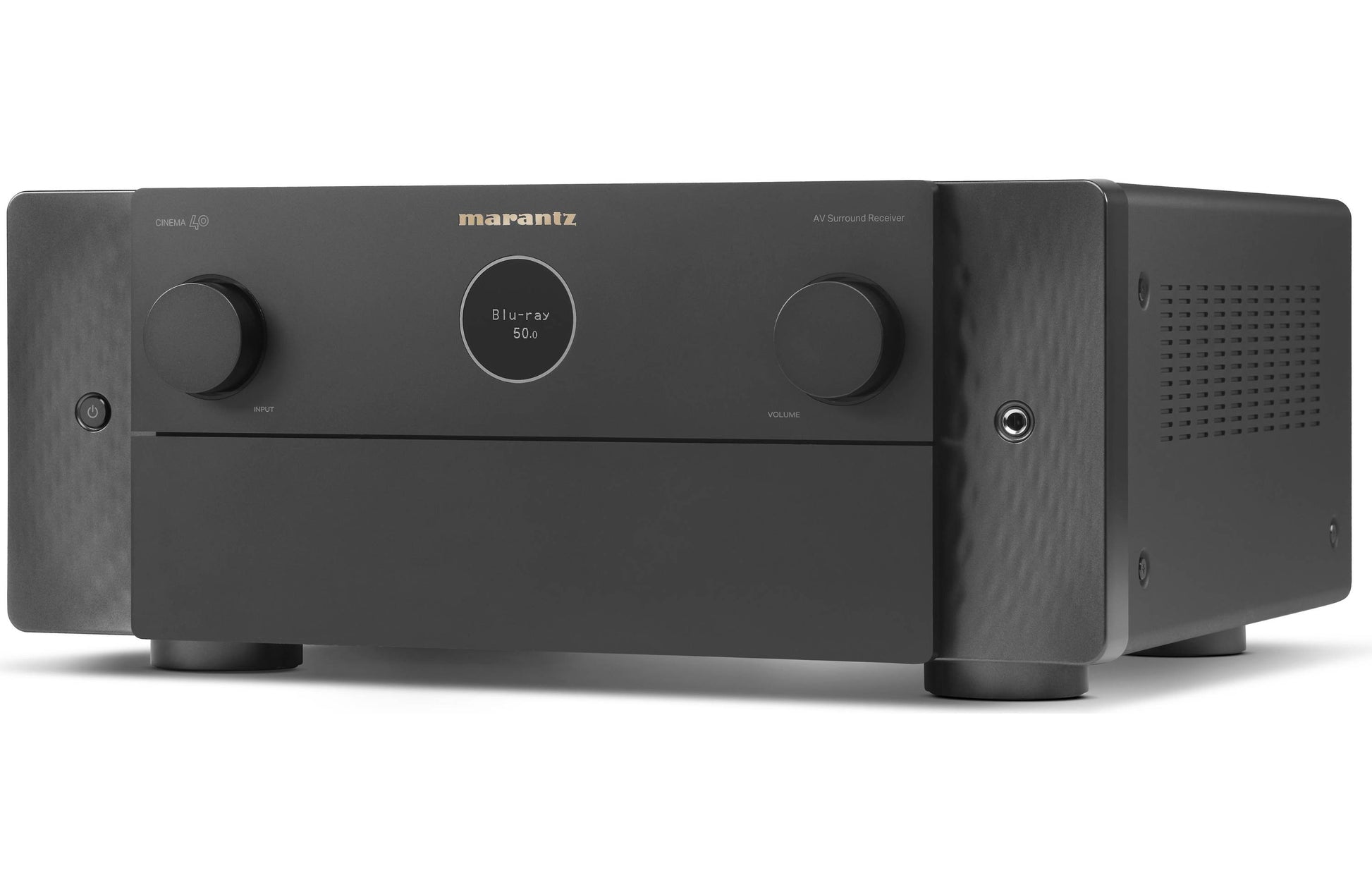

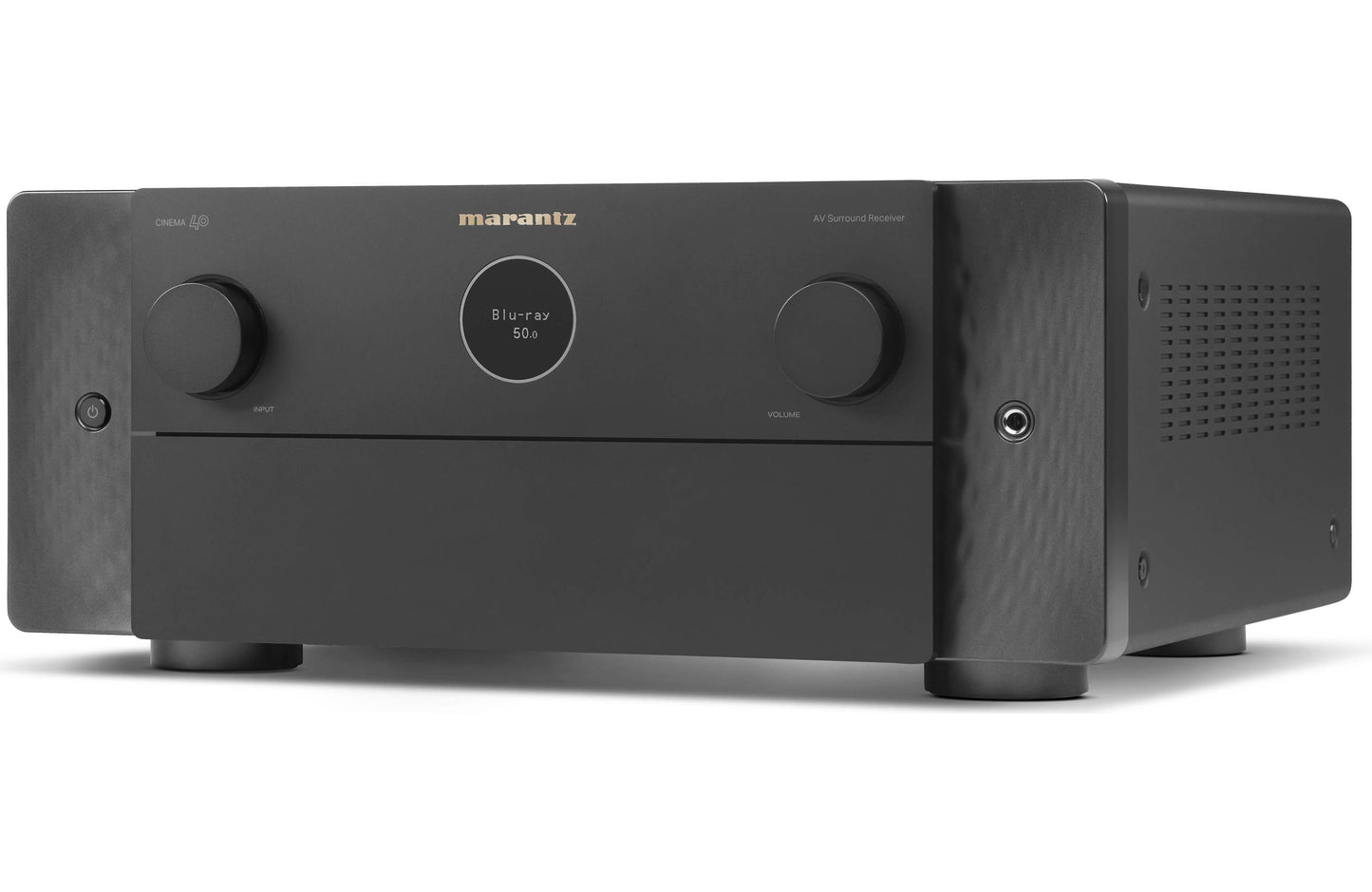

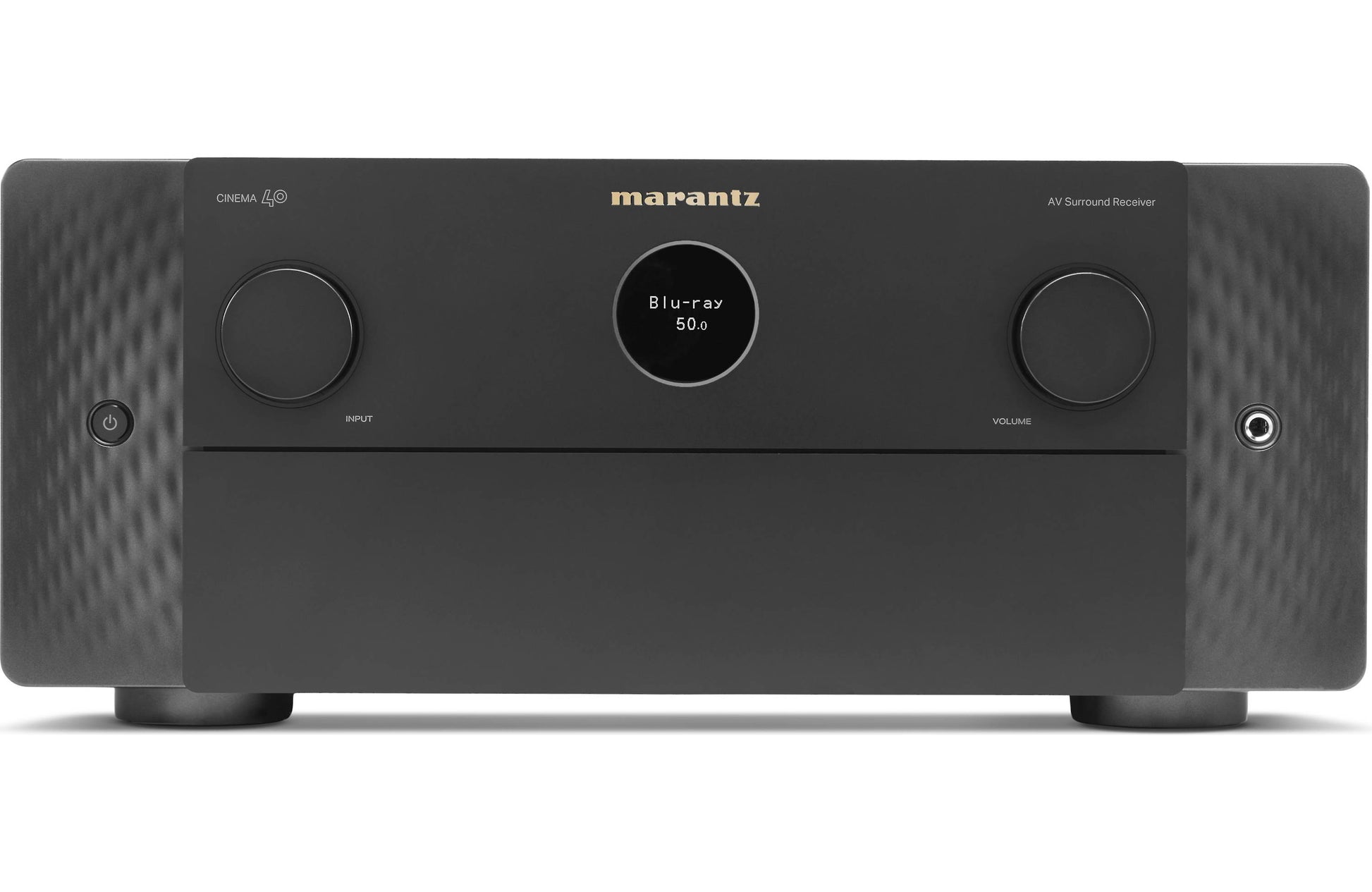

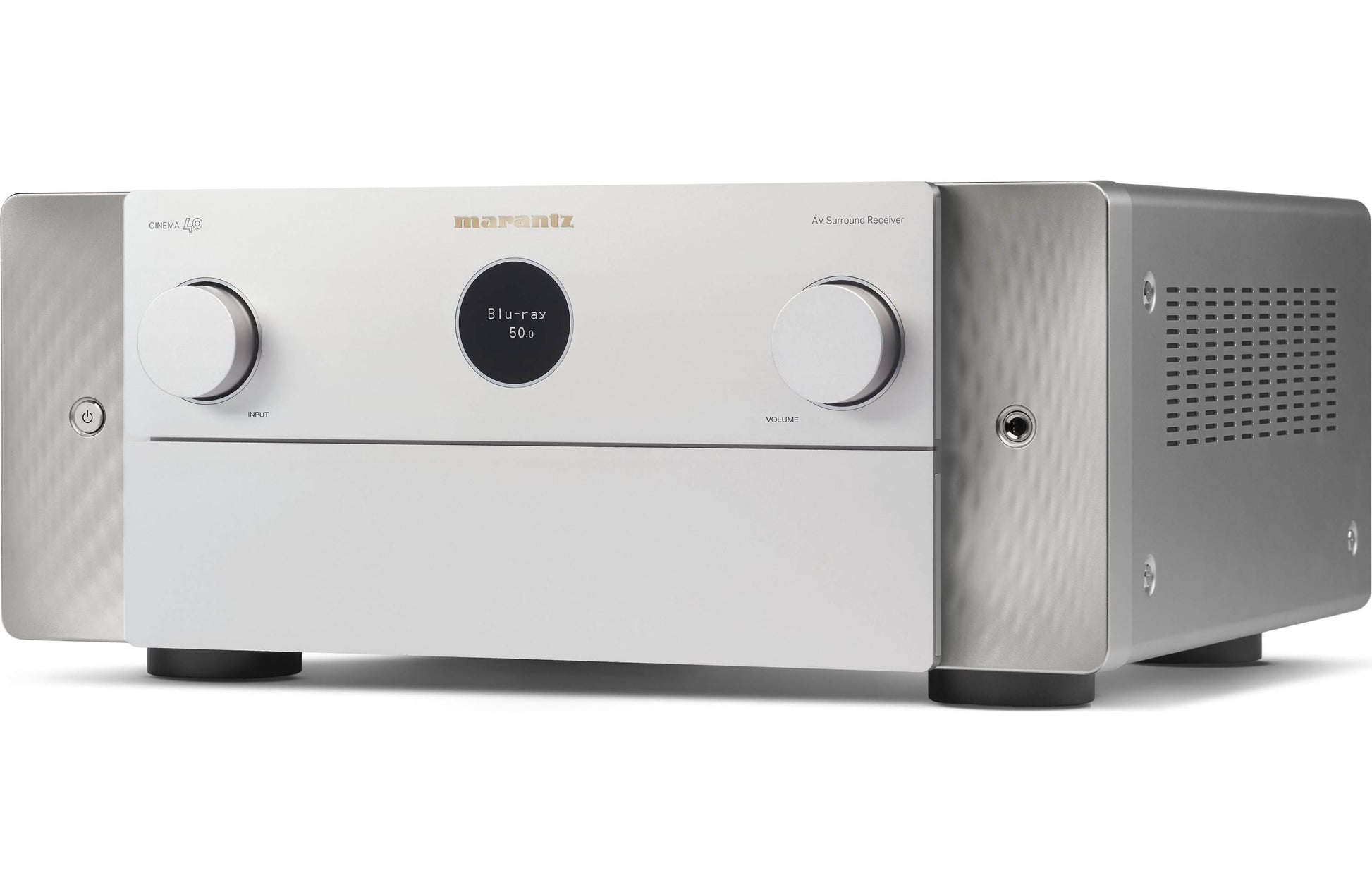

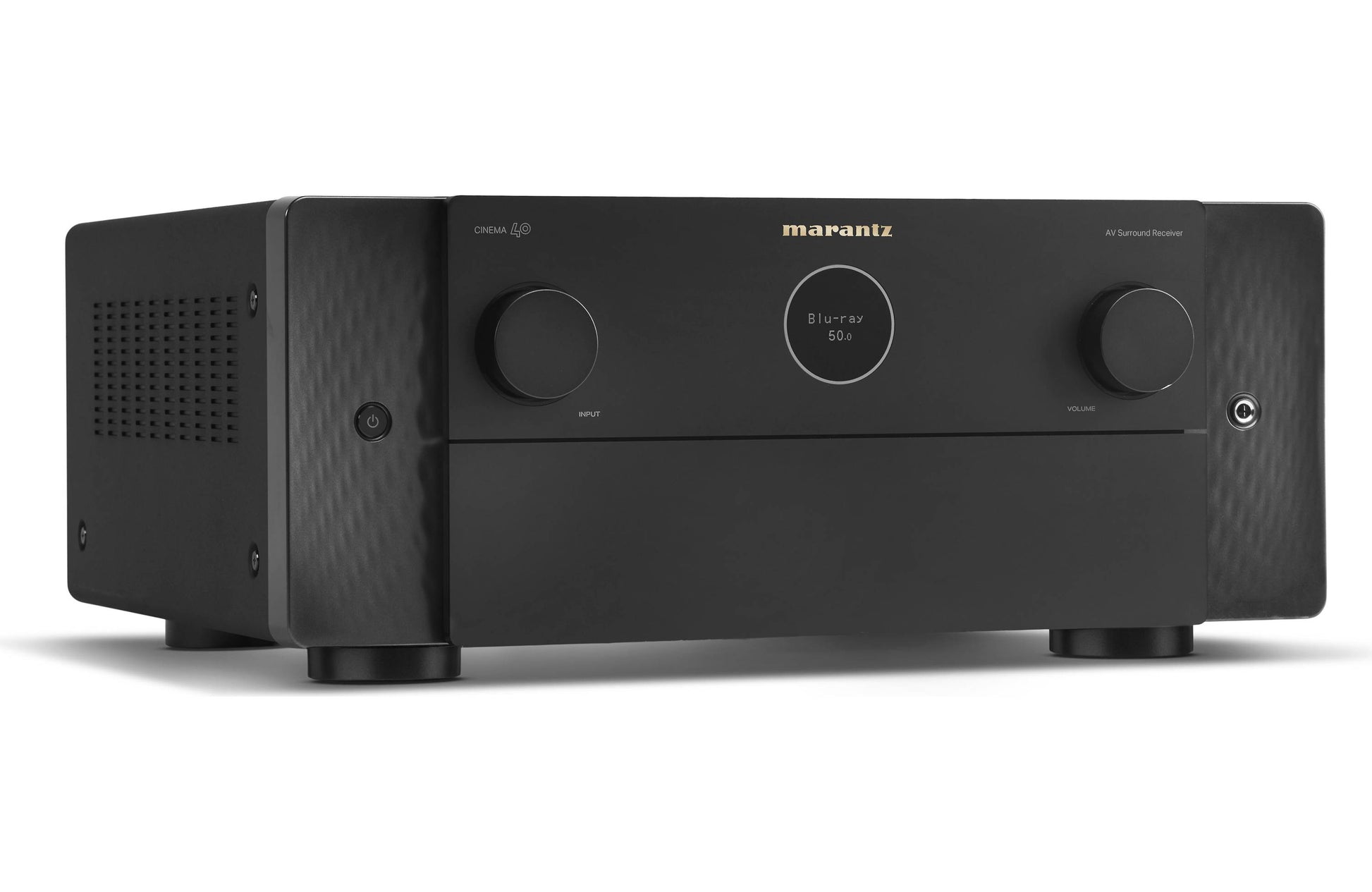

A modern expression of timeless design principles, CINEMA 40 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.
Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
The Marantz Sound Master meticulously tuned CINEMA 40 for amazing performance with careful parts selection to create the Most Musical Sound in your home.
CINEMA 40 comes complete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.
Details & Specifications
Power Amplifier
-
Number of Powered Channels 9
-
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
-
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) 125 W
-
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 165 W
-
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 235 W
-
70% Guarantee Yes
-
Discrete Power Amplifier Yes
-
Amplifier Topology Class A/B
-
Current Feedback Topology Yes
-
Bi-Amp Drive assignable
Multichannel Surround Technologies
-
DTS DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
-
Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
-
Other IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo2
-
Max Number of Processing (Preamp) Channels 11.4

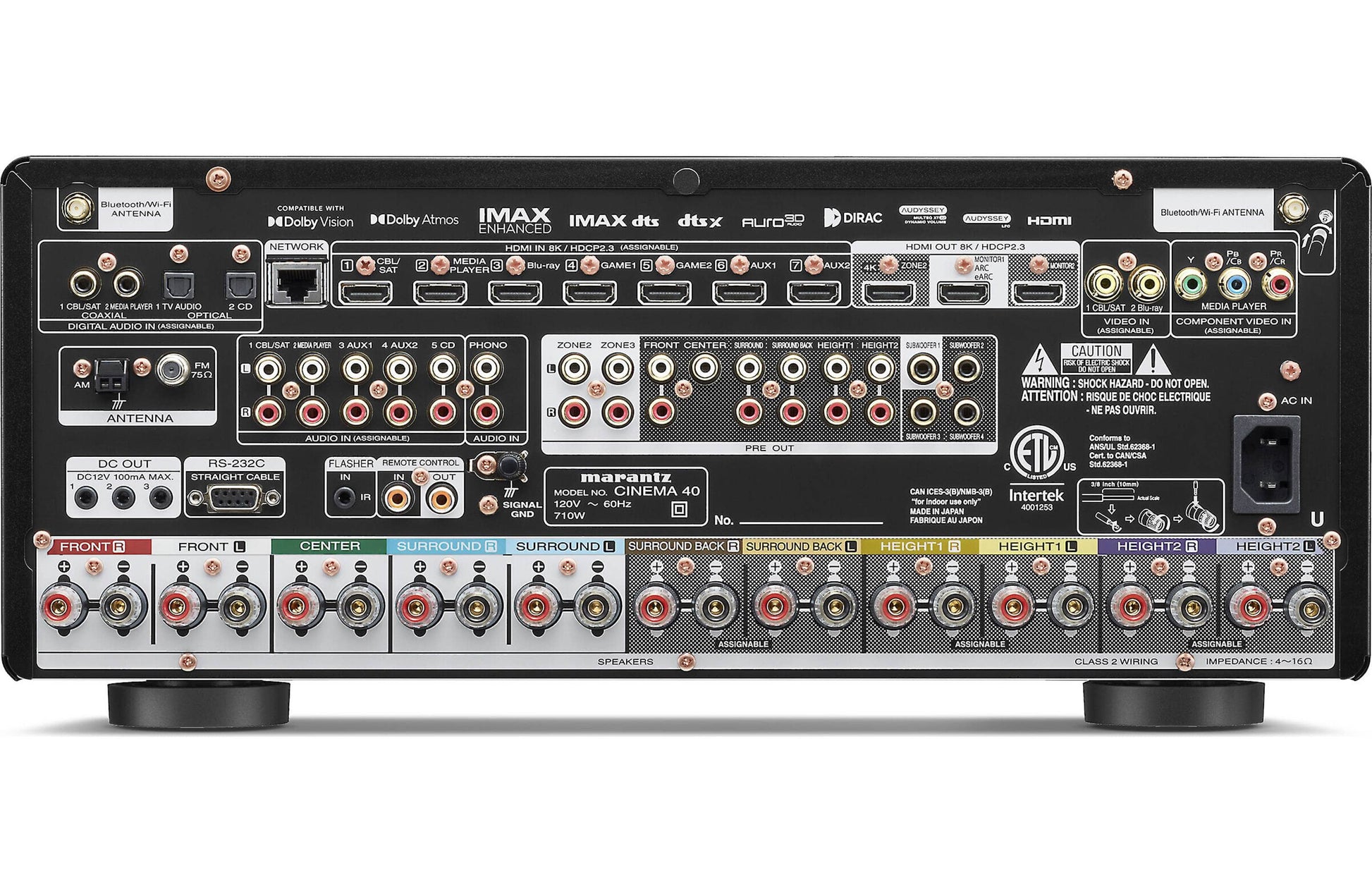

Inputs Outputs
-
Composite In / Out 2 / 0
-
Component In / Out 1 / 0
-
HDMI In / Out 7 / 3
-
Multi-Room Video Out via HDMI Yes
-
Analog In / Fixed Level Out 5 in / 0 out
-
Phono (MM) In Yes
-
Digital In: Optical / Coaxial 2 / 2
-
Multi-Room Out: analog / digital 2 / 0
-
Multichannel Preamp Out 11.4
-
Subwoofer Out 4 (independent)
-
7.1 multichannel input No
-

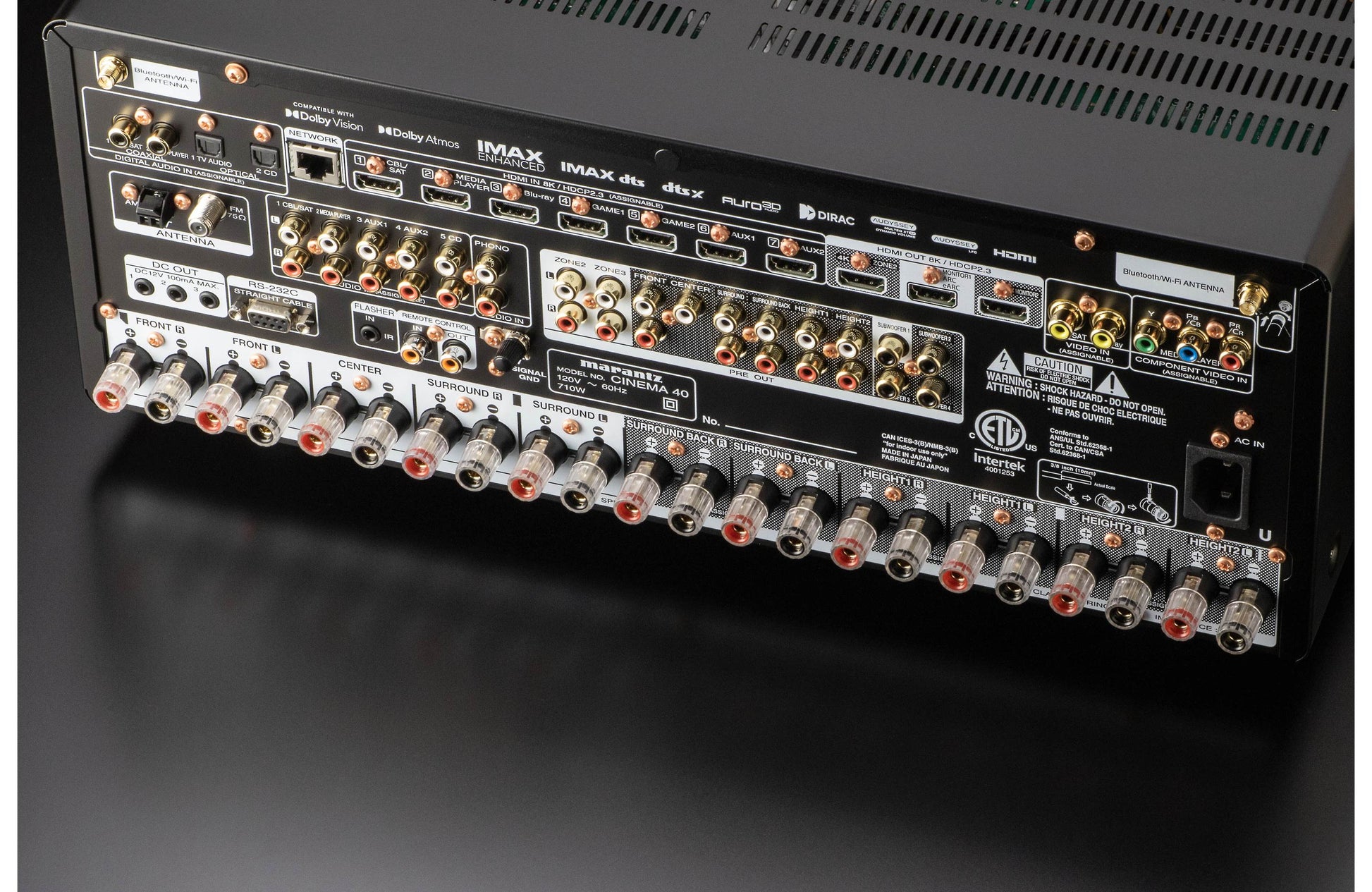

Number of Speaker Terminals 11
-
Speaker A / B assignable
-
Multi-Room Speaker Terminal assignable
-
Front Inputs USB-A
-
USB Audio / Made for iPod / Made for iPhone Yes / No / No
-
AM/FM Tuner Yes
HDMI
-
Total HDMI Inputs / No. Support 8K 7 / 7
-
HDCP2.3 support Yes
-
HDMI Outputs: Main / Zone 2 / 1
-
Analog to HDMI Video Conversion Yes
-
HDMI Upscaling 1080P/4K to 8K
-
Max resolution @ framerate 8K @ 60Hz, 4K @ 120Hz
-
Audio Return Channel ARC, eARC
-
Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
-
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
-
Variable Refresh Rate / Quick Frame Transport Yes / Yes
-
HDMI Pass-Through in Standby Mode Yes
-
CEC Yes
-
DSD Audio over HDMI Yes
-
Auto LipSync Yes
Performance Technologies
-
Copper Plated Chassis No
-
Toroidal Power Supply Transformer No
-
Hyper Dynamic Amplifier Modules (HDAM) (List version) Yes
-
Pure Direct Mode Yes
-
Gold Plated RCA Terminals Yes
-
Clock Jitter Reducer Yes
Acoustic Room Correction
-
Audyssey MultEQ XT32
-
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
-
Audyssey LFC Yes / Yes
-
Dirac Live Upgradability Yes
-
Variable Cross Over Yes
-
Optimized Bass Redirection Yes
-
Bass Sync Yes
Music File Support
-
Lossy Formats MP3 / WMA / AAC
-
Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
-
DSD Audio 2.8MHz / 5.6MHz
-
Gapless Playback FLAC, WAV ,ALAC ,DSD
-
Compressed Audio Enhancer: MDAX2 Yes
-
Network Audio Sharing Yes
Streaming Services
-
HEOS Multi-room and Streaming Yes
-
AirPlay Audio Streaming Airplay 2
-
Internet Radio TuneIn
-
Spotify* Spotify Connect
-
Pandora Yes
-
SiriusXM Yes
-
Other Streaming Services * Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
-
Roon tested Yes
Network Connectivity
-
Ethernet Ports Yes
-
Wi-Fi (include version / band) Yes
-
Bluetooth (Include version) Yes
-
Bluetooth Re-transmit for Bluetooth headphones Yes
Smart Home Integration and Control
-
Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod
-
App for Smart Phones & Tablets (iOS & Android) Marantz AVR Remote App, HEOS
-
HEOS Multi-Room Integrated Yes
-
HEOS Link Compatibility: IR/ IP Yes / Yes
-
Multi-Room zones 3
-
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
-
Zone Audio Output: Speaker / Preout Yes / Yes
-
Zone HDMI Output from HDMI Source Yes
-
Control Connectivity IP Control / RS232 Control / Web Control / App Control
-
IR Flasher In Yes
-
Marantz Remote Bus Yes
-
DC Trigger Output 3
-
HDMI Diagnostics Yes
Others
-

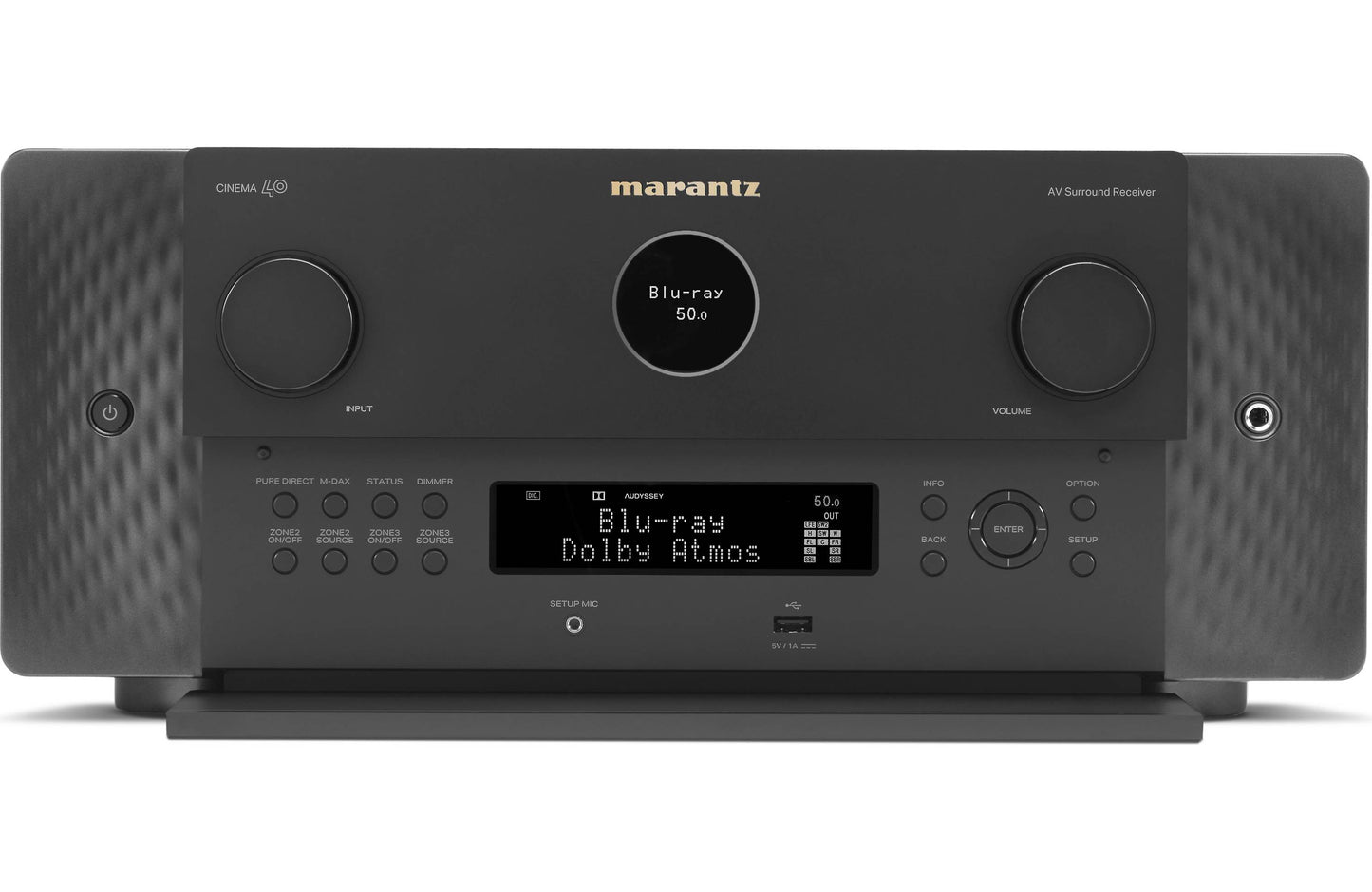

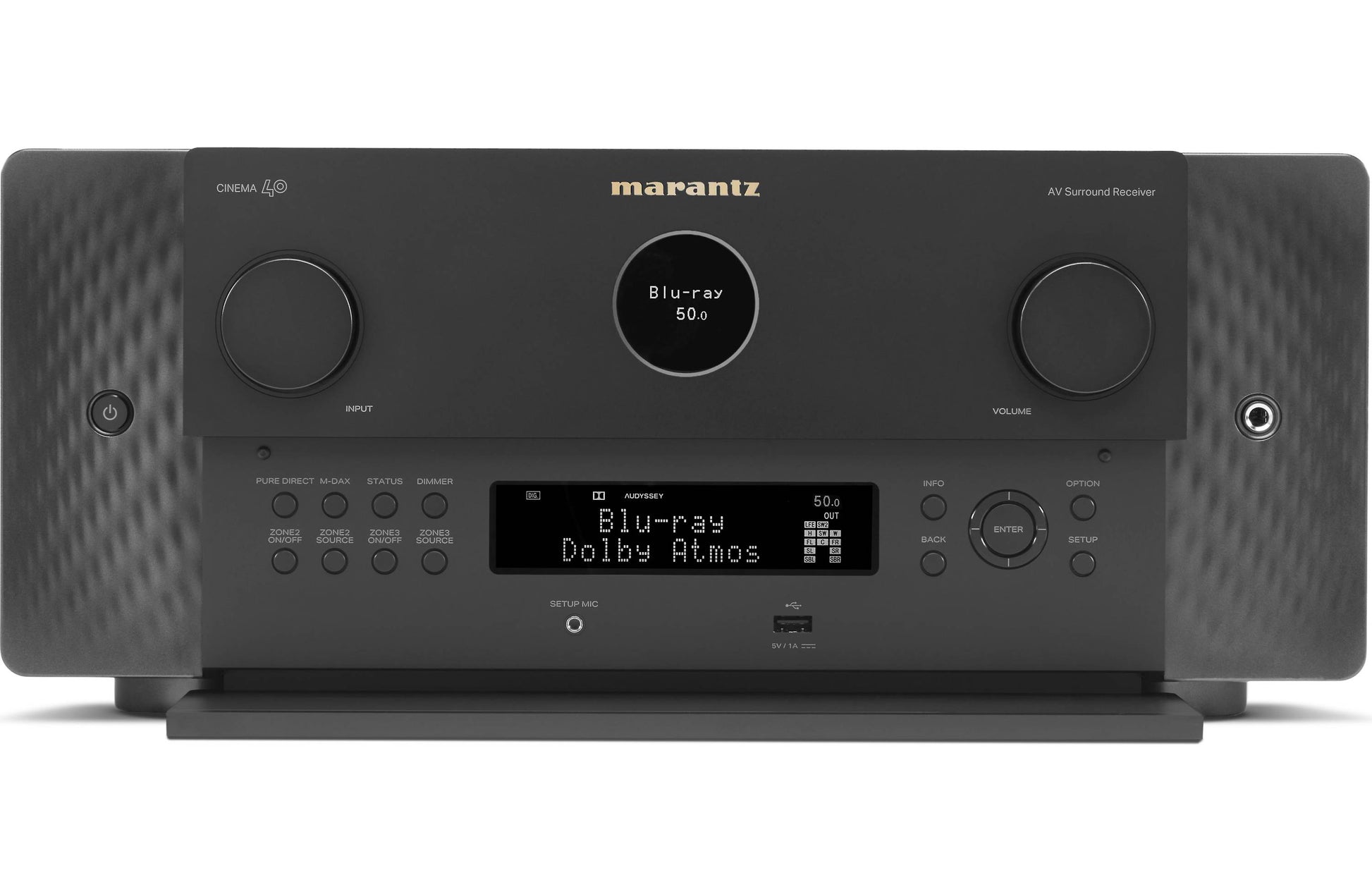

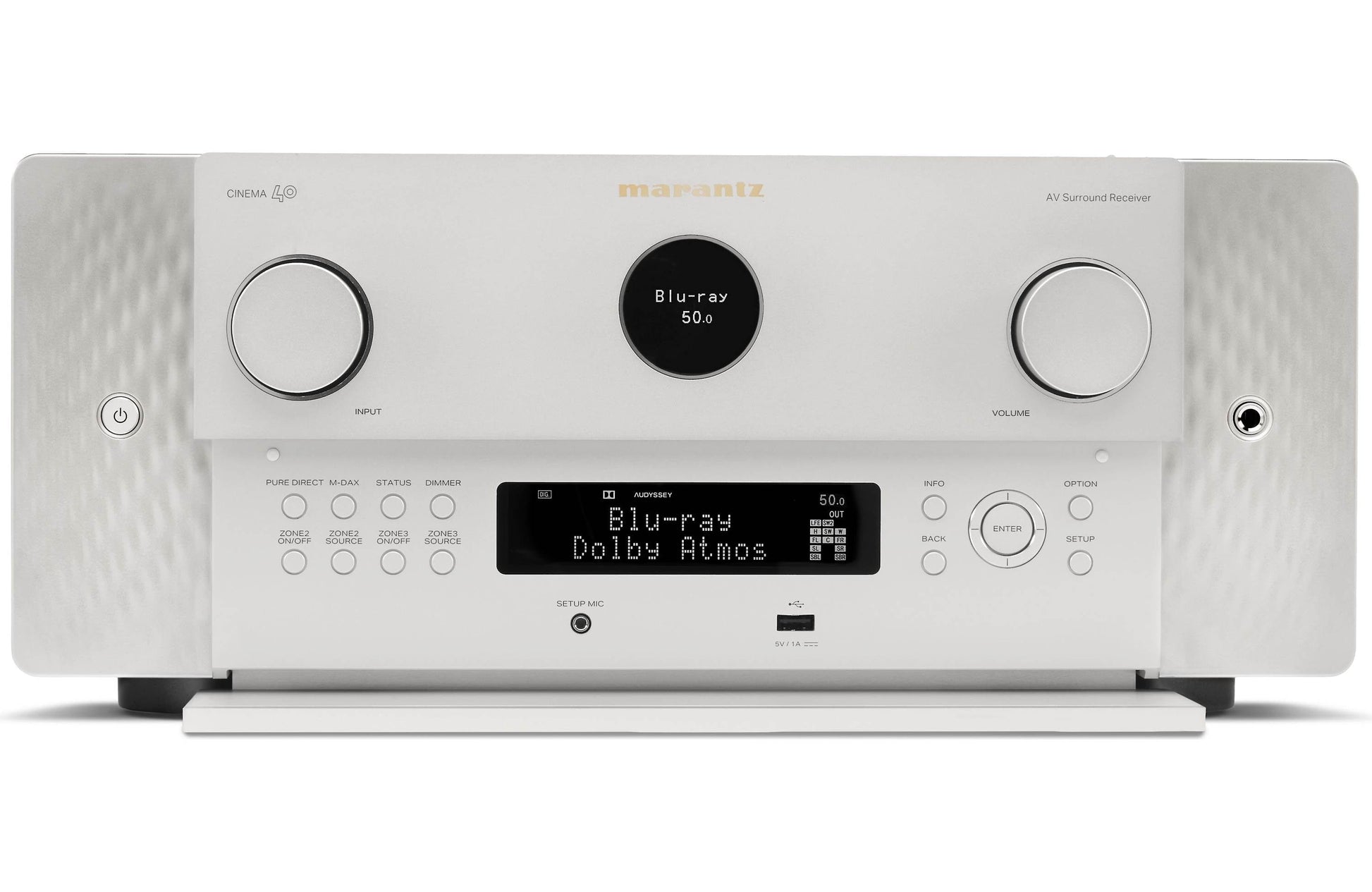

Front Display 2 line FLD + port hole OLED
-
GUI Languages 9
-
Setup Assistant Yes
-
Smart Select on Remote Yes
-
Firmware Update by Network / USB Yes / Yes
-
ECO Mode Yes
-
Auto Power off Yes
-
Sleep Timer Yes
General
-
Available Colors Black/Silver-Gold
-
Metal Front Panel Yes
-
System Remote Control RC048SR
-
Power Consumption in W 710
-
Power Consumption No-Sound (ECO on/off) in W 65 / 110
-
Standby Consumption in W 0.2
-
CEC Standby Consumption in W 0.5
-
Network Standby Consumption in W Less than 2.0
-
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
Antenna:Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches 17.3 x 16.2 x 7.3
17.3 x 16.2 x 10
17.3 x 15.8 x 7.3
-
Weight in lbs. 33.3
-
What's in the box Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord
