Nagaoka MP-200 Moving Magnet Cartridge – SoundHub

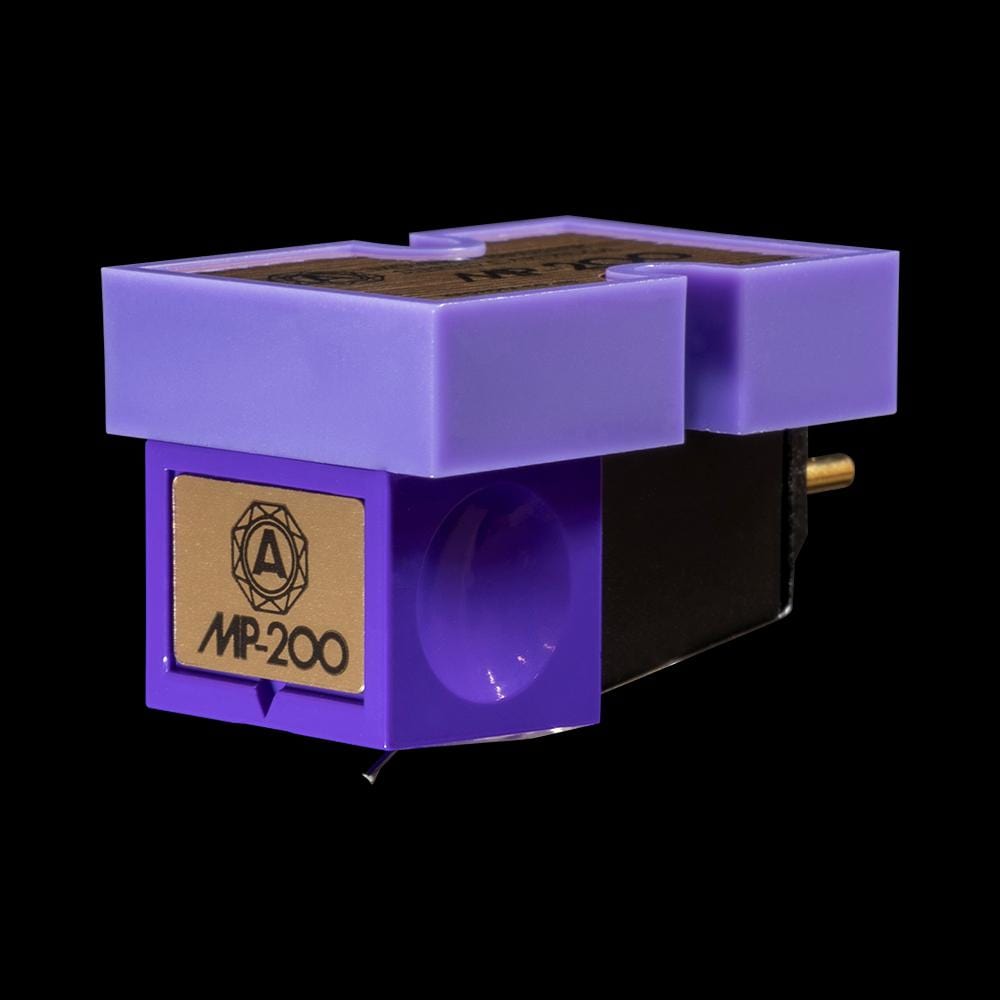

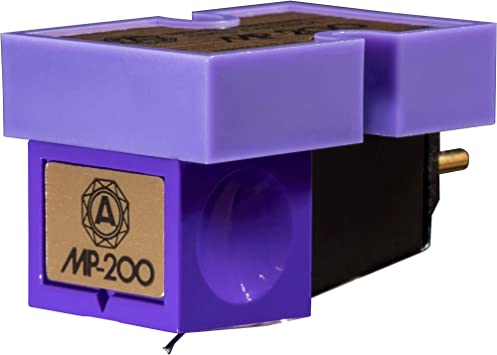

Nagaoka MP-200 Moving Magnet Cartridge

  • Sale
  • Regular price $980.00
Tax included.


Balance-oriented model featuring rich colors

It features a calm sound, and even the reverberation is impressively expressed.
Boron is used for the cantilever, and the sound groove is traced accurately.

■ Output voltage: 4mV (5cm / SEC)
■ Frequency characteristics: 20Hz ~ 23,000Hz
■ Channel separation: 25dB (1KHz)
■ Channel balance: 1.5 dB or less
■ Load resistance: 47KΩ
■ Load capacity: 100pF
■ Cantilever: Boron
■ Needle tip: 0.4 × 0.7mil Ellipse / Diamond
■ Appropriate stylus pressure: 1.5 ~ 2.0g
■ Cartridge weight: 6.5g
■ With head shell Weight: 16.5g
