Roksan Corus2 Moving Magnet Cartridge – SoundHub

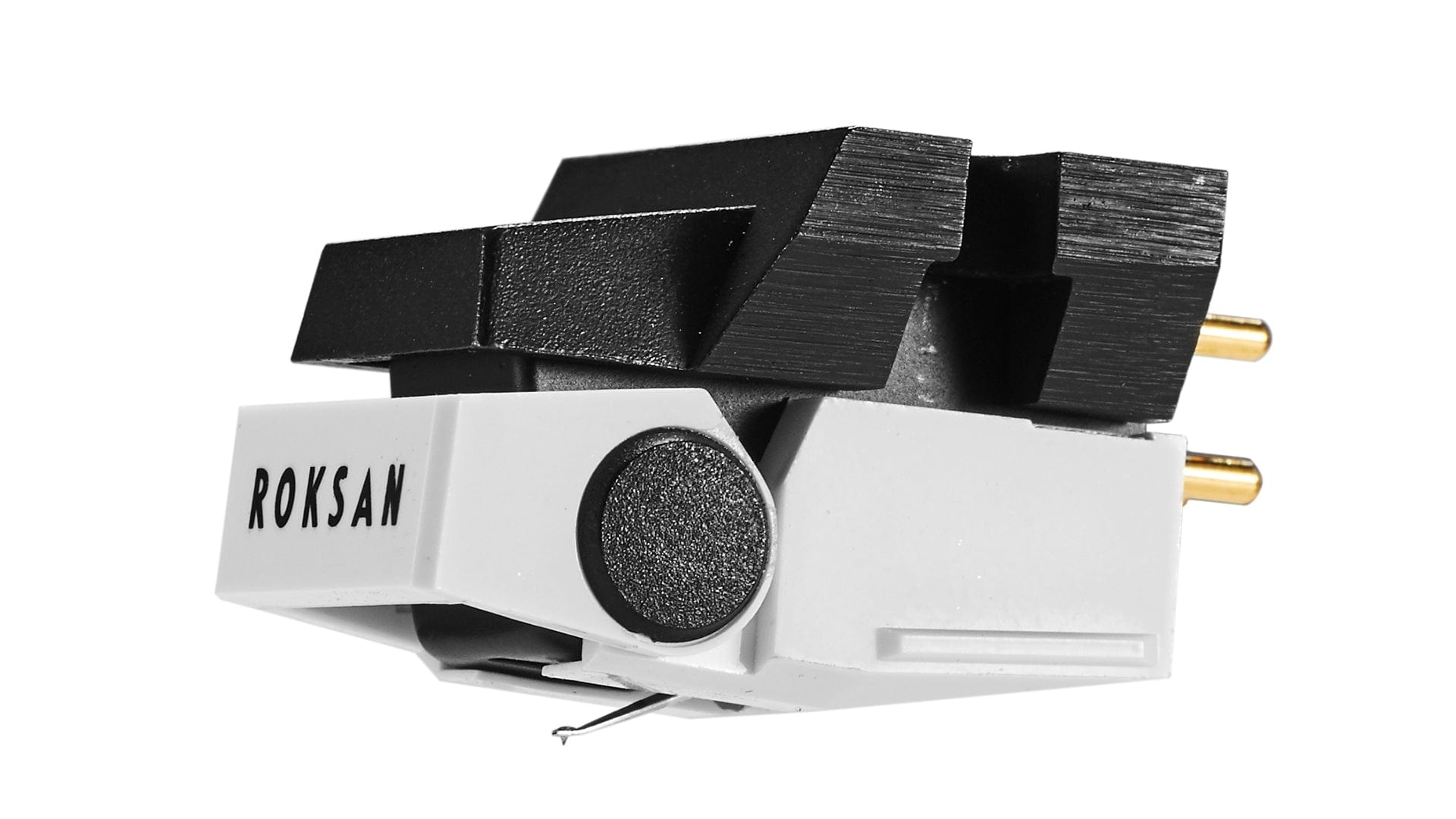

Roksan Corus2 Moving Magnet Cartridge

  • Sale
  • Regular price $1,500.00
Tax included.


The Corus2 is the latest generation Corus moving magnet cartridge from Roksan.

It features a new “VM” magnet arrangement where there is one small magnet for each channel for increased detail and channel separation and a Shibata stylus profile. It is finished in a stylish modern aesthetic with a flip down stylus guard for extra protection.



Key Features

  • Twin magnets in V arrangement for improved channel separation
  • Shibata Stylus Profile - Incredible detail retrieval and projection across the full frequency spectrum
  • Rigid Aluminum Body - Low resonance and high shielding
  • Integral fold-down stylus guard for protection and peace of mind

Type

VM dual moving magnet

Frequency Response

20Hz to 27 kHz

Output Voltage

3.5 mV (1 kHz, 5 cm/sec.)

Channel Separation

25 dB (1 kHz)

Output Balance

<1.5 dB (1 kHz)

Tracking Weight

1.8 to 2.2 g (2.0 g Recommended)

Coil Impedance

3.2 k ohms (1 kHz)

Vertical Tracking Angle

23°

Recommended Load Impedance

47 k ohms

Recommended Load Capacitance

100 to 200 pF

Coil Inductance

490 mH (1 kHz)

Cantilever

Aluminium tapered pipe

Stylus

Nude Shibata

Cartridge Body

Aluminium

Weight

8.0 g
