Specially designed for custom integration of whole home audio systems, the “AMP” serves as a companion amplifier for the Yamaha XDA-QS5400RK to expand speaker coverage and/or increase power output. It may also be used to expand secondary zone speaker coverage for Yamaha AV receivers that have Zone pre outs.
- Works together with Yamaha XDA-QS5400RK to expand speaker coverage in custom integrated multi-room audio systems
- Eight channels of audiophile-grade Class D amplification, bridgeable and 4-ohm capable, featuring a unique ground loop/hum-free circuit design
- Four audio buses and included jumpers allow for wide variety of speaker configurations
- Interlocks power on/off with XDA-QS5400RK via Trigger I/O
- Integration-friendly features include audio sensing inputs, IR I/O and more
- 1U high, rack-wide enclosure; removable rack ears and faceplate included
- Designed for custom integration of a MusicCast multi-room audio system connected via Ethernet LAN in a rack or cabinet
- Streams four zones of audio per unit, expandable to 32 zones with simultaneous playback in linked groups of up to 20 zones each
- Eight channels of audiophile-grade Class D amplification assignable to any zone, bridgeable and 4-ohm capable, featuring a unique ground loop/hum-free circuit design
- Built-in Pandora®, Spotify Connect, SiriusXM Internet Radio, SiriusXM Music for Business, TIDAL, Deezer, Napster and more, plus access to music libraries and linked external sources
- Easy control via a free MusicCast app and 3rd-party control systems
- 1U high, rack-wide enclosure; removable rack ears and faceplate included
Sonic Soul Mates
The XDA-AMP5400RK – the “AMP” – was conceived as a companion to the Yamaha XDA-QS5400RK as a way to provide additional speaker coverage and/or additional speaker output power in a custom integrated multi-room home audio system. It also pairs nicely with Yamaha AV receivers that offer Zone pre outs.
Slim Yet Powerful

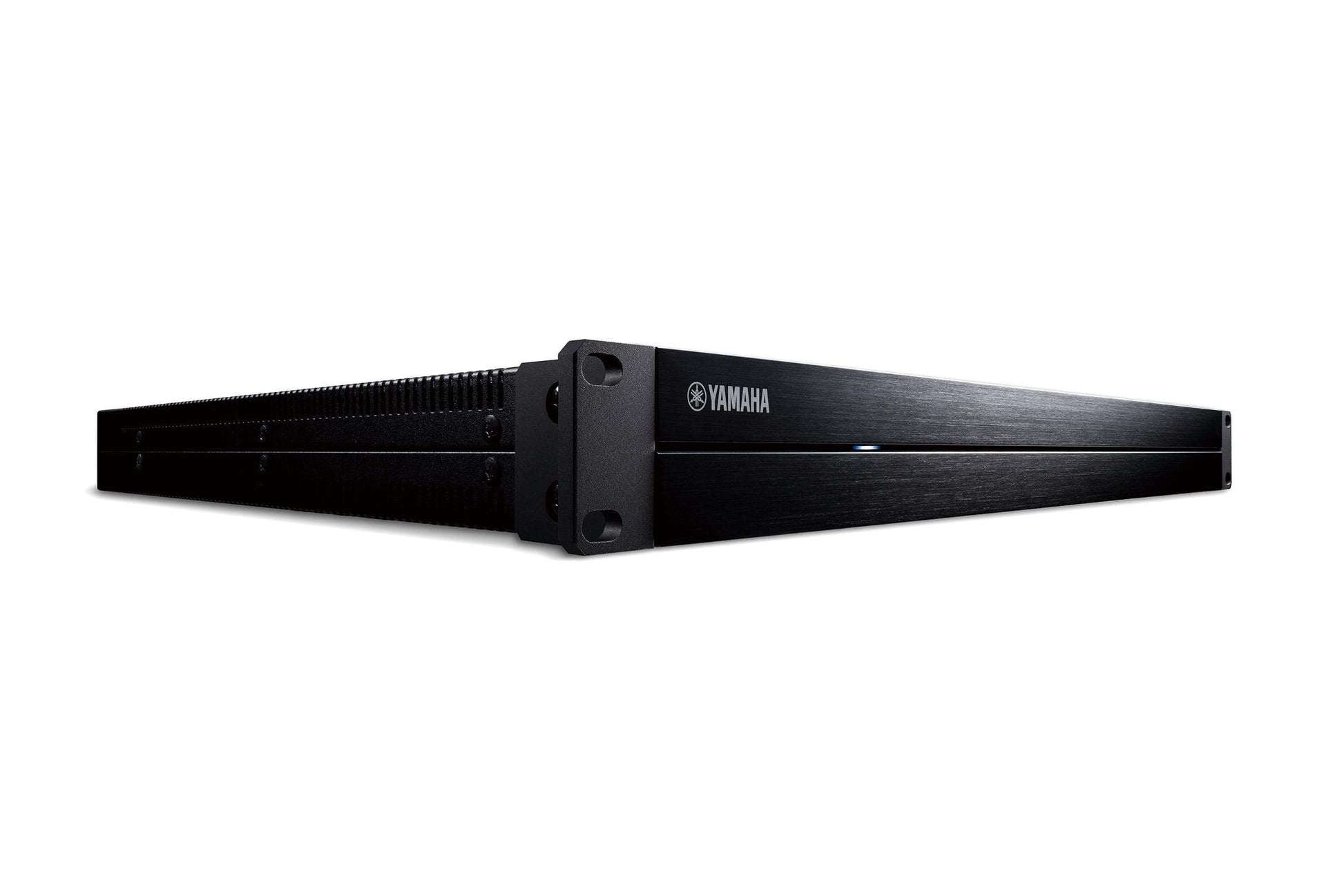

The AMP packs eight channels of audiophile-grade amplification into a remarkably-slim 1U-high enclosure, allowing you to fully optimise your valuable rack real estate.
Phenomenal Flexibility

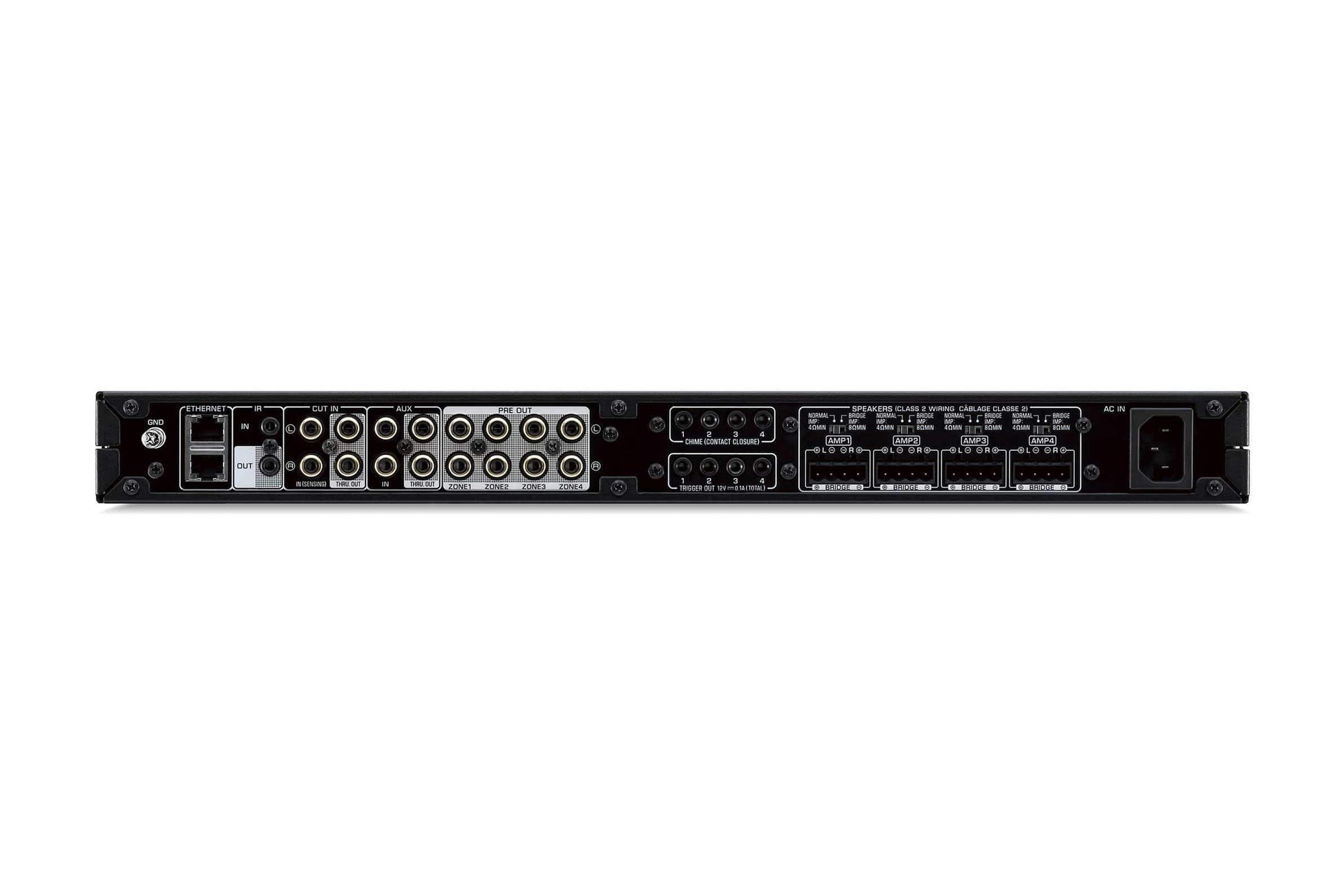

Feed up to four sources from QS pre outs into the AMP – its four audio I/O buses can be patched together to handle a wide array of speaker/zone configurations. The AMP comes with a set of jumper plugs and cables, making it ultra-versatile right out of the box. The audio outs can alternatively be used to connect powered subwoofers or subwoofer amps.
Engineered to Sound Extraordinary
Audiophile-Grade Amplification
The AMP employs ultra-efficient ICEpower integrated circuits to deliver eight channels of pristine, musically-dynamic digital amplification 50 watts/channel (8 ohms) with an outstanding 5 Hz to 40 kHz (+0/-3 dB) frequency response and 108 dB signal-to-noise ratio. It is 4 ohm capable at 100 watts/channel and bridgeable to 200 watts/channel (8 ohms).
Goodbye Ground Loop Hum
The curse of the custom integrator: ground loop hum, a common and vexing side effect of connecting a bunch of electronics together in a rack. The AMP takes care of it with a brilliantly-engineered differential circuit design. Sometimes it’s what you don’t hear that sounds the most amazing.
High-Performance under the Hood
The AMP employs a balanced audio circuit design and PML capacitors, which are also used in our flagship AVENTAGE AV separates. The result: greater realism and expressiveness for all of your favourite music.
Versatile Installation
Mount it in a rack with the included ears or remove the ears for shelf installations. The included magnetic faceplate discourages tampering and provides the perfect cosmetic finish.
Harmonious Control
When a QS and AMP are used together, simply wire the trigger ports to automatically power on/off the desired amplifier zones – no additional control interface is needed. The AMP also works great as a companion to an AVENTAGE AV receiver. When using the AMP with other sources, audio sensing inputs and an infrared I/O provide additional control flexibility.
Custom-Friendly Connectivity

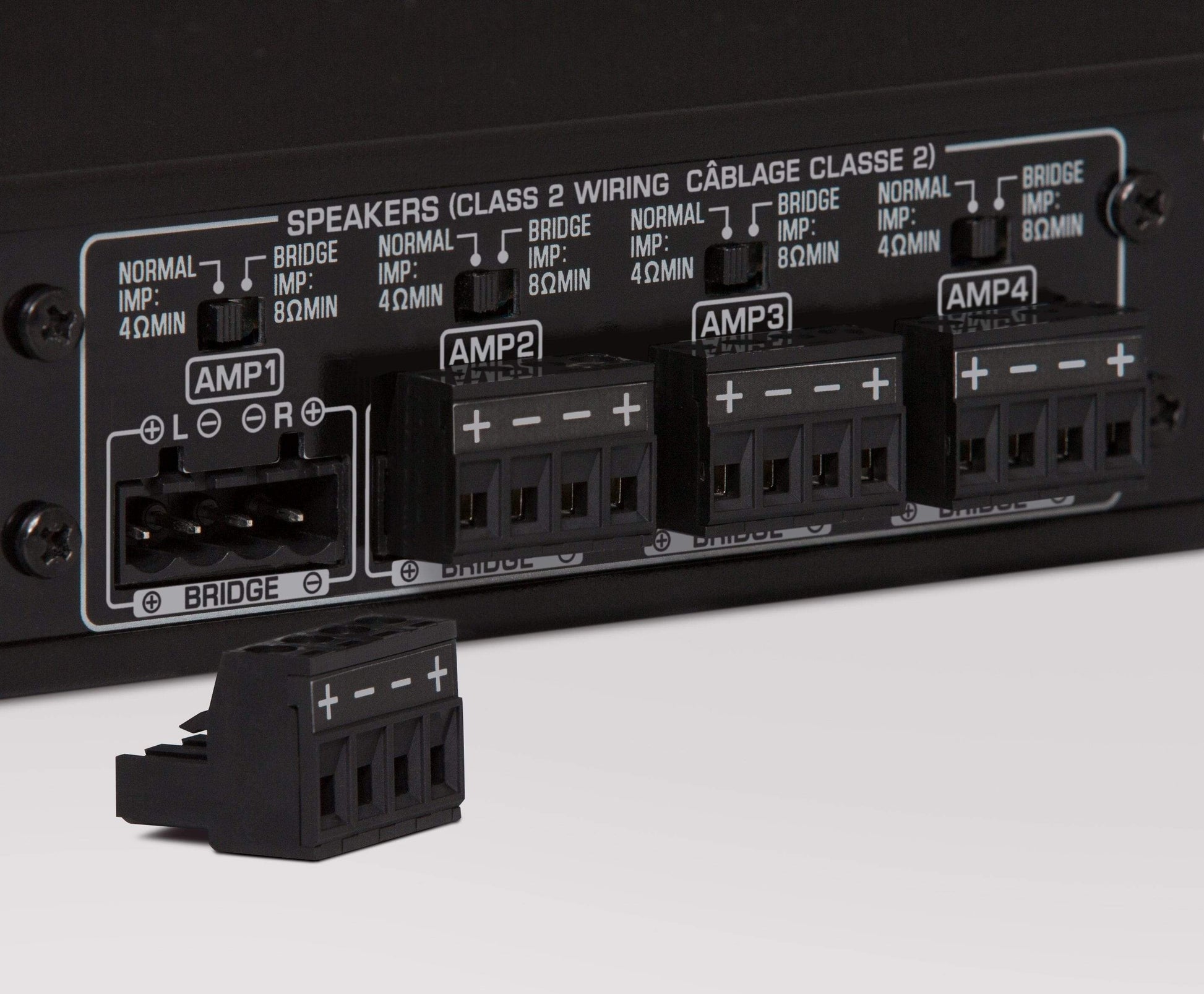

The AMP is truly made for custom integration, with Euroblock-style speaker connectors and a detachable AC cable for smart connectivity.
